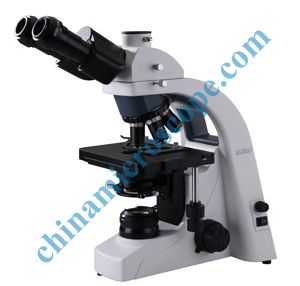

BA2303if infinite Microscope with fluorescent phase contrast, simple polarizing
|
Model Items Spec. and parameter |
BA2303if |
BA2303f |
|
|
Eyepieces |
WF10X/ø22 high eyepoint, diopter adjustable |
●● |
|
|
WF10X/ø18 |
|
●● |
|
|
WF16X/ø10 |
|
○○ |
|
|
WF10Xø22 high eyepoint, diopter adjustable (Pointer) |
○ |
|
|
|
WF10X/ø22 high eyepoint, diopter adjustable (Reticle) |
○ |
|
|
|
WF10X/ø18(Pointer) |
|
○ |
|
|
WF10X/ø18 (Reticle) |
|
○ |
|
|
Objectives |
Infinite Plan Achromatic Objective |
● |
|
|
Plan Achromatic Objective |
|
● |
|
|
Head |
Seidentopf binocular trinocular head (Infinite) |
● |
|
|
Seidentopf binocular / trinocular head |
|
● |
|
|
Main Body |
Quintuple Nose piece, Coaxial Coarse and |
● |
|
|
Quadruple Nose piece, Coaxial Coarse and |
|
● |
|
|
Stage |
Mechanical stage: size: 175×145, |
● |
● |
|
Condenser |
Fixed Abbe N.A.1.25 |
● |
● |
|
Move out condenser |
○ |
|
|
|
Dark field condenser |
○ |
○ |
|
|
Collector |
With diagram |
○ |
● |
|
Without diagram |
● |
○ |
|
|
Base |
3W/LED |
● |
● |
|
Video Device |
C-MOUNT |
● |
● |
|
1X, 0.35X digital video device |
○ |
|
|
|
0.55X video device. |
|
○ |
|
|
Optional |
|||
|
Phase contrast |
Centering eyepiece |
|
|
|
10X, 20X, 40X, 100X (oil) Plan Positive |
|
|
|
|
10X, 20X, 40X, 100X anular slide |
|
|
|
|
Fluorescent device |
UV, V, B, G B-I, B-II, G-I, G-II narrow band inciter |
|
|
|
|
Epi-flourescent illumination device, |
|
|
|
Epi-flourescent illumination device |
Kolar illumination with field diagram |
|
|
|
|
With filter slot and 12V30W tungsten lamp |
|
|
|
Dark field device |
Dark filed condenser |
|
|
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved the right to make design modification
and changes without notice.
