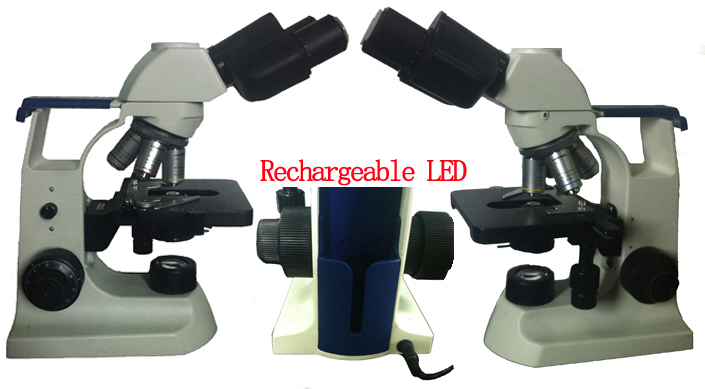

MIC-A10 biological microscope.
|
MIC-A10 serials Biological microscope technical specification |
|||||
|
Technical specification |
Model |
||||
|
MIC-A12 |
MIC-A13 |
MIC-A12i |
MIC-A13i |
||
|
Total magnification: 40X～1600X |
|||||
|
Viewing head |
Binocular head, Interpupillary distance 52-76mm, 30°inclined,360° rotatable, （47-76mm optional） |
● |
|
● |
|
|
Trinocular head, Interpupillary distance 52-76mm, 30°inclined,360° rotatable, （47-76mm optional） |
|
● |
|
● |
|
|
Eyepiece |
wile-field eyepiece :WF10X/18mm |
● |
●● |
●● |
●● |
|
wild-field eyepiece :WF16X/15mm |
○ |
○ |
○ |
○ |
|
|
Nosepiece |
revolving quadruple nosepiece |
● |
● |
● |
● |
|
Objective |
Achromatic objectives:4X,10X,40X,100X |
● |
● |
|
|
|
Plan objectives:4X,10X,40X,100X |
○ |
○ |
|
|
|
|
Infinite achromatic objectives:4X,10X,40X,100X |
|
|
● |
● |
|
|
Infinite plan objectives:4X,10X,40X,100X |
|
|
○ |
○ |
|
|
Mechanical stage |
142x130mmdouble layer mechanical stage, moving range76mm(X)x50mm（Y）with double section clamp |
● |
● |
● |
● |
|
Focusing |
Coaxial focus system with upper limited and tension adjustment; coarse adjustment range:20mm, fine adjustment precision:0.002mm |
● |
● |
● |
● |
|
Condenser |
N.A.1.25 condenser |
● |
● |
● |
● |
|
Illumination |

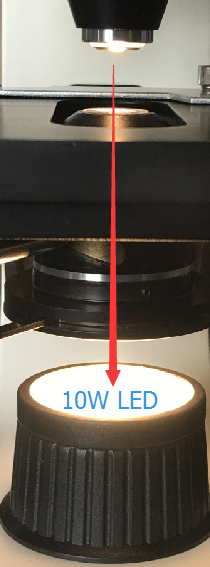

10 W LED illumination, brightness adjustable or 6V/20W, 6V/30W halogen lamp |
● |
● |
● |
● |
|
Filter |
yellow, green, blue, neutral color filter |
○ |
○ |
○ |
○ |
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved
the right to make design modification and changes without notice.
