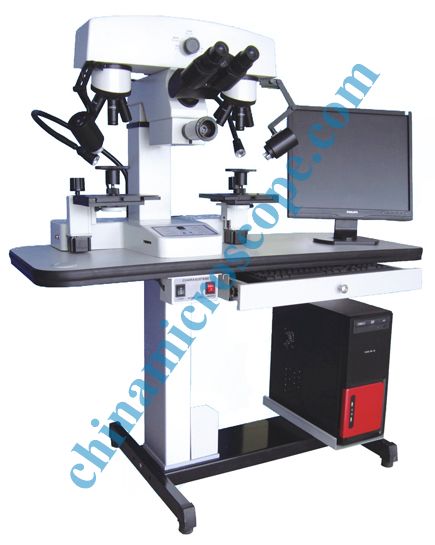

MIC-12B-based optical zoom through a comparison microscope
MIC-12B-based optical zoom through a comparison microscope, eyepiece with the same group, while two objects were observed around the object like a square field of view, which of the two exhibits by docking, overlap on the more macro and micro, the instrument of key operation can be done manually, can also be controlled by computer software, electric operation is complete and can be remotely through the network than the right. Warm with a high power LED lighting, air-cooled strong light. New electric 5 hole converter agencies, with 300 million high-definition CCD digital camera.
|
Optical microscopy system |
|
|
Optical magnification |
5.6×－127×，Definition 3000NA。 |
|
Eyepiece |
10X（24mm）and 20X（12.5mm）Wide Field Eyepiece |
|
Tilting binocular head |
0～30°，Humane design |
|
Objective(converter) |
0.6X、 1X、 1.5X、 2.5X、4X（Stepping motor controlled fixed zoom change） |
|
Working distance |
100mm |
|
The stage |
Size: 180mmX150mm Horizontal80mm, vertical80mm, vertical60mm, horizontal rotation angle of 0 ° -360 °, the table in any direction angle 0 ° -60 °, can be achieved manually but also the stage through the computer unilateral or bilateral level rotating the stage, to achieve three-dimensional movement. |
|
Range of electric lift bridge |
0～150mm，Electric hydraulic lifting device used to observe large samples. |
|
Electric lift table range |
0～300mm，The use of electric lift device， |
|
Material Field of the range observed |
φ1mm-φ90mm（With additional eyepiece, objective） |
|
Bullets start instrument |
Small bullets start instrument |
|
Low magnification objective lens |
0.4x/φ90 |
|
Magnification synchronization |
A magnification instructions about the same magnification lens to adjust the organization |
|
Camera system |
3 million high-resolution CCD digital camera. Effective Pixels 2048x1536, no interpolation |
|
Work Panel |
Using the new touch panel |
|
Light source |
50W/12V high-power halogen light source High-power LED lights, with the lens, adjustable brightness and spot |
|
LightAccessories |
Coaxial opticallens,polarizedlens,filter |
|
Adapter |
And CCDcameraadapter |
|
Power supply |
220V AC, 12V DC output, in line with international safety standards |
|
Fullcomputer control |
Through the computer can be X, Y, Z axis operation, but also remotely through the network than |
|
Forensicimage processing software |
The latest version of the professional image processing software and electronic control operating system, enabling the cylinder shell warhead launched, fuzzy image processing, multiple images automatically filter comparison of measurements callouts. |
