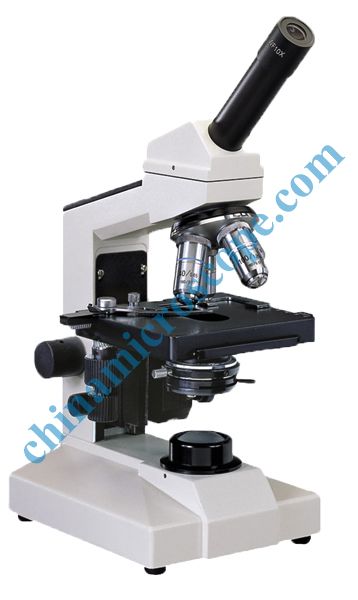

XSL-10 series biological microscopes are equipped with monocular, achromatic objectives and wide field eyepieces. They have provides clear image, wide field, convenience operation. They can be used for medicine agriculture area widely. They are the ideal instruments in medical treatment, teaching demonstration.
Standard Configuration
|
Model |
XSL-10A |
XSL-10B |
XSL-10C |
|
Eyepiece |
Wide field WF10X(18mm) |
||
|
Objective |
Achromatic 4X/0.10 |
||
|
Achromatic 10X/0.25 |
|||
|
Achromatic 40X/0.65(Spring) |
|||
|
Achromatic 100X/1.25(Spring, oil) |
|||
|
Eyepiece tube |
Monocular,360˚ rotatable (Inclination of 45˚) |
Monocular,360˚ rotatable (Inclination of 45˚) |
Monocular,360˚ rotatable (Inclination of 45˚) |
|
Focus system |
Separate coarse/fine system focus. Minimum division of fine focusing: 4μm |
Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm |
|
|
Nosepiece |
Quadruple(Frontward ball bearing outer locating) |
Quadruple(Backward ball bearing outer locating) |
|
|
Stage |
Double-layer mechanical, size:125mmX115mm, move range:70mmX30mm |
||
|
Abbe condenser |
N.A.1.25Rack &pinion adjustment |
||
|
Filter |
Blue filter |
||
|
Frosted filter |
|||
|
Collector |
For incandescent lamp |
||
|
Light source |
220V/110V 20W, Incandescent lamp |
||
Optional accessories
|
Name |
Sort/Technique parameter |
NO. |
|
|
Eyepiece |
Wide field WF16X(¦µ11mm) |
1051016 |
|
|
Point 10X(¦µ18mm) |
1043010 |
||
|
Nosepiece |
Triple(Frontward ball bearing outer locating) |
030001 |
|
|
Filter |
Green filter |
115002 |
|
|
Yellow filter |
115003 |
||
|
Light source |
Fluorescent lamp |
5W,110V/220V Can be choose |
071001 |
|
LED Illumination |
High brightness white |
073001 |
|
|
Reflecting mirror |
Plane-concave reflecting mirror with stand |
074001 |
|
|
Camera |
Photography |
USB Output |
1096001 |
|
VIDEO Output |
1108001 |
||
|
Adapter |
Input: 230V 50/60HZ Output: 9V 500mA |
101001 |
|
|
Input: 110V 50/60HZ Output: 9V 500mA |
101002 |
||
