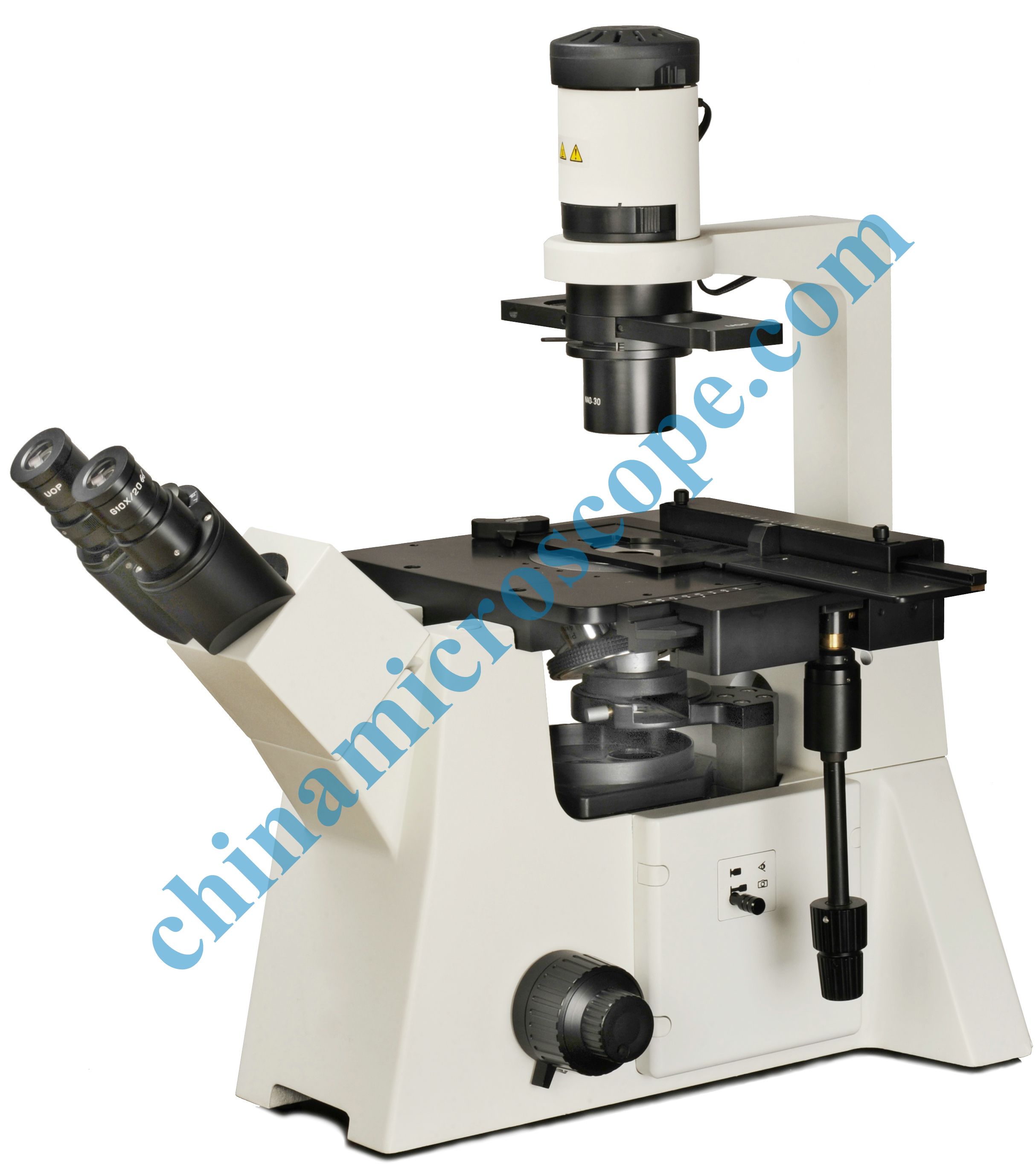

UCIS Infinity Independent Achromatic Optical System
· WF10x plan eyepieces, 20mm field of view, high eye point up to 21mm
· Seidentopf binocular viewing head; inclined45º
· 52-75mm interpupillary distance settings
· ±5 Diopter adjustment
· Quintuple nosepiece inward facing with positive click stops
· Infinity long work distance plan Achromatic 10x, 20x, 40x and Infinity long work distance phase-contrast 20x objectives
· Right hand controls, low position, fixed stage, 240mm x 260mm, movement range 135mm x 85mm
· N.A. 0.30 Abbe condenser with iris diaphragm, with phase-contrast slide, long work distance 72mm.
· Coaxial coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm
· 6 volt 30 watt halogen illumination
· Dust cover, power cord
|
Item |
P-I11 |
Order No. |
|
|
|
Frame |
One-piece construction from arm to base |
● |
P-I11 |
|
|
UCIS Infinity Independent Achromatic Optical Design |
|
|||
|
With digital camera joint on the left side |
|
|||
|
Co-axial coarse and fine focusing knob,precision:0.001mm |
|
|||
|
Wide voltage:100∽240V,47/63Hz |
|
|||
|
Frame |
One-piece construction from arm to base,with flourescence excitation interface |
|
P-I11 |
|
|
UCIS Infinity Independent Achromatic Optical Design |
|
|||
|
With digital camera joint on the left side |
|
|||
|
Co-axial coarse and fine focusing knob,precision:0.001mm |
|
|||
|
Wide voltage:100∽240V,47/63Hz |
|
|||
|
Seidentopf Observation Tube |
Binocular Tube, Interpupillary distance 52-75mm,45°inclined,diopter adjustable. |
● |
MS1 |
|
|
Binocular Tube, Interpupillary distance 52-75mm,45°inclined,diopter adjustable. |
○ |
MS1A |
|
|
|
Eyepiece |
WF10X/20, High eye-point up to21mm. |
●● |
E1020PC |
|
|
WF10X/22, High eye-point up to21mm. |
○○ |
E1022PA |
|
|
|
WF16X/14mm |
○○ |
E1614WB |
|
|
|
WF10X/20(Pointer), High eye-point up to21mm. |
○ |
E1020GC |
|
|
|
WF10X/22(Pointer), High eye-point up to21mm. |
○ |
E1022GA |
|
|
|
Reticule eyepiece: CROSSWF10X/20，High eye-point up to21mm. |
● |
E1020RC |
|
|
|
Reticule eyepiece: CROSSWF10X/22，High eye-point up to21mm. |
○ |
E1022RA |
|
|
|
Centering Telescope |
CTE |
● |
CTE |
|
|
Infinity Long Work-distance Plan Objectives |
4X/0.13 WD12.86 |
○ |
WB-L4A |
|
|
10X/0.25 WD9.67 |
● |
WB-L10A |
|
|
|
20X/0.40 WD7.97 |
● |
WB-L20A |
|
|
|
40X/0.60 WD3.76 |
● |
WB-L40A |
|
|
|
Infinity Plan Positive Phase-Contrast Objevtives |
10X/0.25 WD9.67 |
○ |
WB-LPHp10A |
|
|
20X/0.40 WD7.97 |
● |
WB-LPHp20A |
|
|
|
40X/0.60 WD3.76 |
○ |
WB-LPHp40A |
|
|
|
Infinity Plan Negative Phase-Contrast Objectives |
10X/0.25 WD9.67 |
○ |
WB-LPHn10A |
|
|
20X/0.40 WD7.97 |
○ |
WB-LPHn20A |
|
|
|
40X/0.60 WD3.76 |
○ |
WB-LPHn40A |
|
|
|
Transmitted light Illumination |
72mm Extreme long work distance condenser,NA0.3,with iris diaphragm, 6V30W halogen lamp house, filter jack, |
● |
SGJ1 |
|
|
Phase-contrast slide, makes it easy to change between 10X,20X,40X phase-contrast and brightfield observation. |
● |
PCB-LPH |
|
|
|
6V30W Osram halogen lamp |
● |
BZ-0022C |
|
|
|
External power, wide voltage (100V / 240V) |
● |
DYX1 |
|
|
|
Fuse tube: 250V/3.15AΦ5X20 |
●●● |
BZ-0023 |
|
|
|
Blue filter（φ34） |
● |
LA1-1000 |
|
|
|
Green filter（φ34） |
● |
LU1-1000 |
|
|
|
Yellow filter（φ34） |
● |
LH1-1000 |
|
|
|
Stage |
Fixed stage: 240*260mm, low-position co-axial flexible adjusting handle,travel:135mm*85mm |
● |
ZT1 |
|
|
Slide Plate(φ118mm), replaceable |
● |
ZT1-1000 |
|
|
|
Slide Plate(76X26mm、Φ60), replaceable |
● |
1D-0021 |
|
|
|
Mechanical stage: 350*208mm，X/Y travel: 50mmX50mm，low-positioned co-axial flexible adjusting handle. |
○ |
ZT1A |
|
|
|
Revolving Nosepiece |
Quintuple, Inward facing. |
● |
ZQ580A |
|
|
C-Mount |
1X |
○ |
SX3 |
|
|
0.5X |
● |
SX1 |
|
|
|
0.25X(Fit 1/3′CCD) |
○ |
SX5 |
|
|
|
Digital Camera Adapter |
|
○ |
SD2 |
|
|
Digital Camera Joint |
(Please advice your digital camera model in advance) |
○ |
SDK |
|
|
Reflected Flourescence Attachment |
DC Hg Florecence Lamphouse 100W |
|
DYX3 |
|
|
Mercury lamp 100W(Made inChina) |
|
BZ-0022H |
|
|
|
Mercury lamp 100W(Osram) |
|
BZ-0022i |
|
|
|
Filter Turret |
|
|
|
|
|
Iris aperture adjusting handle |
|
DLSS1-0029 |
|
|
|
DC Hg Power Source House 100W |
|
DYX3 |
|
|
|
Fuse tube: 250V/5AΦ5X20 |
|
BZ-0023A |
|
|
|
UV Excitaion Filter (I Grade) |
|
YGMKI-UV |
|
|
|
V Excitation Filter (I-Grade) |
|
YGMKI-V |
|
|
|
B Excitation Filter (I-Grade) |
|
YGMKI-B |
|
|
|
G Excitation Filter (I-Grade) |
|
YGMKI-G |
|
|
|
UV Excitaion Filter (C-Grade) |
|
YGMKC-UV |
|
|
|
V Excitation Filter (C-Grade) |
|
YGMKC-V |
|
|
|
B Excitation Filter (C-Grade) |
|
YGMKC-B |
|
|
|
G Excitation Filter (C-Grade) |
|
YGMKC-G |
|
|
|
Dust helmet |
|
● |
BZ1-0014 |
|
|
Operation Manual |
|
● |
BZ1-0036B |
|
|
Allen Screw Driver |
φ2mm |
● |
BZ2-0018 |
|
|
φ2.5mm |
● |
BZ1-0018 |
|
|
|
φ3mm |
● |
BZ1-0018A |
|
|
|
Power Wire |
CE Certified |
●● |
BZ-0021 |
|
|
Package |
Inner: Foam,Plastic Bag; |
● |
|
|
|
Item |
P-I12 |
Order No. |
|
|
|
Frame |
One-piece construction from arm to base |
|
P-I12 |
|
|
UCIS Infinity Independent Achromatic Optical Design |
|
|||
|
With digital camera joint on the left side |
|
|||
|
Co-axial coarse and fine focusing knob,precision:0.001mm |
|
|||
|
Wide voltage:100∽240V,47/63Hz |
|
|||
|
Frame |
One-piece construction from arm to base,with flourescence excitation interface |
● |
P-I12 |
|
|
UCIS Infinity Independent Achromatic Optical Design |
|
|||
|
With digital camera joint on the left side |
|
|||
|
Co-axial coarse and fine focusing knob,precision:0.001mm |
|
|||
|
Wide voltage:100∽240V,47/63Hz |
|
|||
|
Seidentopf Observation Tube |
Binocular Tube, Interpupillary distance 52-75mm,45°inclined,diopter adjustable. |
● |
MS1 |
|
|
Binocular Tube, Interpupillary distance 52-75mm,45°inclined,diopter adjustable. |
○ |
MS1A |
|
|
|
Eyepiece |
WF10X/20, High eye-point up to21mm. |
●● |
E1020PC |
|
|
WF10X/22, High eye-point up to21mm. |
○○ |
E1022PA |
|
|
|
WF16X/14mm |
○○ |
E1614WB |
|
|
|
WF10X/20(Pointer), High eye-point up to21mm. |
○ |
E1020GC |
|
|
|
WF10X/22(Pointer), High eye-point up to21mm. |
○ |
E1022GA |
|
|
|
Reticule eyepiece: CROSSWF10X/20，High eye-point up to21mm. |
● |
E1020RC |
|
|
|
Reticule eyepiece: CROSSWF10X/22，High eye-point up to21mm. |
○ |
E1022RA |
|
|
|
Centering Telescope |
CTE |
● |
CTE |
|
|
Infinity Long Work-distance Plan Objectives |
4X/0.13 WD12.86 |
○ |
WB-L4A |
|
|
10X/0.25 WD9.67 |
● |
WB-L10A |
|
|
|
20X/0.40 WD7.97 |
● |
WB-L20A |
|
|
|
40X/0.60 WD3.76 |
● |
WB-L40A |
|
|
|
Infinity Plan Positive Phase-Contrast Objevtives |
10X/0.25 WD9.67 |
○ |
WB-LPHp10A |
|
|
20X/0.40 WD7.97 |
● |
WB-LPHp20A |
|
|
|
40X/0.60 WD3.76 |
○ |
WB-LPHp40A |
|
|
|
Infinity Plan Negative Phase-Contrast Objectives |
10X/0.25 WD9.67 |
○ |
WB-LPHn10A |
|
|
20X/0.40 WD7.97 |
○ |
WB-LPHn20A |
|
|
|
40X/0.60 WD3.76 |
○ |
WB-LPHn40A |
|
|
|
Transmitted light Illumination |
72mm Extreme long work distance condenser,NA0.3,with iris diaphragm, 6V30W halogen lamp house, filter jack, |
● |
SGJ1 |
|
|
Phase-contrast slide, makes it easy to change between 10X,20X,40X phase-contrast and brightfield observation. |
● |
PCB-LPH |
|
|
|
6V30W Osram halogen lamp |
● |
BZ-0022C |
|
|
|
External power, wide voltage (100V / 240V) |
● |
DYX1 |
|
|
|
Fuse tube: 250V/3.15AΦ5X20 |
●●● |
BZ-0023 |
|
|
|
Blue filter（φ34） |
● |
LA1-1000 |
|
|
|
Green filter（φ34） |
● |
LU1-1000 |
|
|
|
Yellow filter（φ34） |
● |
LH1-1000 |
|
|
|
Stage |
Fixed stage: 240*260mm, low-position co-axial flexible adjusting handle,travel:135mm*85mm |
● |
ZT1 |
|
|
Slide Plate(φ118mm), replaceable |
● |
ZT1-1000 |
|
|
|
Slide Plate(76X26mm、Φ60), replaceable |
● |
1D-0021 |
|
|
|
Mechanical stage: 350*208mm，X/Y travel: 50mmX50mm，low-positioned co-axial flexible adjusting handle. |
○ |
ZT1A |
|
|
|
Revolving Nosepiece |
Quintuple, Inward facing. |
● |
ZQ580A |
|
|
C-Mount |
1X |
○ |
SX3 |
|
|
0.5X |
● |
SX1 |
|
|
|
0.25X(Fit 1/3′CCD) |
○ |
SX5 |
|
|
|
Digital Camera Adapter |
|
○ |
SD2 |
|
|
Digital Camera Joint |
(Please advice your digital camera model in advance) |
○ |
SDK |
|
|
Reflected Flourescence Attachment |
DC Hg Florecence Lamphouse 100W |
● |
DYX3 |
|
|
Mercury lamp 100W(Made inChina) |
● |
BZ-0022H |
|
|
|
Mercury lamp 100W(Osram) |
○ |
BZ-0022i |
|
|
|
Filter Turret |
● |
|
|
|
|
Iris aperture adjusting handle |
●● |
DLSS1-0029 |
|
|
|
DC Hg Power Source House 100W |
● |
DYX3 |
|
|
|
Fuse tube: 250V/5AΦ5X20 |
●●● |
BZ-0023A |
|
|
|
UV Excitaion Filter (I Grade) |
○ |
YGMKI-UV |
|
|
|
V Excitation Filter (I-Grade) |
○ |
YGMKI-V |
|
|
|
B Excitation Filter (I-Grade) |
○ |
YGMKI-B |
|
|
|
G Excitation Filter (I-Grade) |
○ |
YGMKI-G |
|
|
|
UV Excitaion Filter (C-Grade) |
○ |
YGMKC-UV |
|
|
|
V Excitation Filter (C-Grade) |
○ |
YGMKC-V |
|
|
|
B Excitation Filter (C-Grade) |
○ |
YGMKC-B |
|
|
|
G Excitation Filter (C-Grade) |
○ |
YGMKC-G |
|
|
|
Dust helmet |
|
● |
BZ1-0014 |
|
|
Operation Manual |
|
● |
BZ1-0036B |
|
|
Allen Screw Driver |
φ2mm |
● |
BZ2-0018 |
|
|
φ2.5mm |
● |
BZ1-0018 |
|
|
|
φ3mm |
● |
BZ1-0018A |
|
|
|
Power Wire |
CE Certified |
●● |
BZ-0021 |
|
|
Package |
Inner: Foam,Plastic Bag; |
● |
|
|
