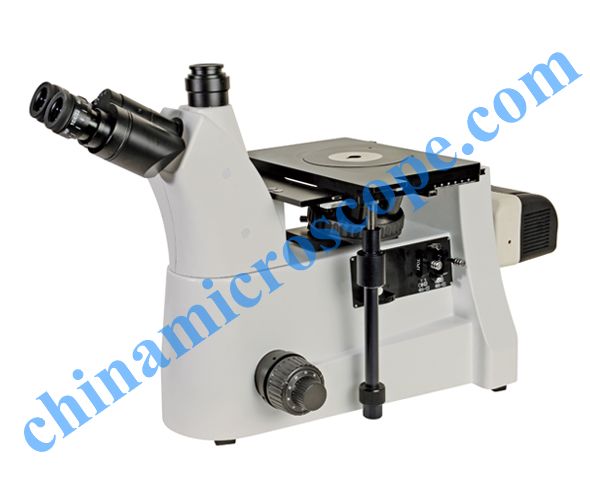

MIC TECH’S new advanced XJP-7A inverted bright & dark field metallurgical microscope is designed with infinite optical system,wide field eyepiece and long working distance bright & dark field infinite plan objectives and polarization device. This big size microscope meets the demand of all kinds of physio-chemical analysis and inspection. It can be equipped with microscope photography & video and image analysis system.The instrument can be used in metallurgic examination and analysis and the research work of surface coating,crack and so on.
|
Specification |
|
|
Optical system |
Infinite optical system |
|
Viewing Head |
Compensation Free trinocular Head inclined at 45° interpupillary distance adjustable 48mm-75mm |
|
Eyepiece |
Wide field Plan WF10X/22mm |
|
WF10×/20mm, reticule 0.1mm |
|
|
Objective |
infinity plan working distance B&D objective 5×/0.15（W.D.14.47mm） 10×/0.25（W.D.16.01mm） 20×/0.40（W.D.10.5mm） 50×/0.55（W.D.5.1mm） |
|
Nosepiece |
Quintuple Nose piece with DIC Jack |
|
Stage |
Double layer mechanical stage Stage Size: 255mm×170mm Moving Range:70mm×50mm Low located XY adjusting hand wheel |
|
Focusing |
Coaxial coarse & fine focusing adjustment,fine focusing scale value 0.001mm |
|
Light source |
Kohler illumination with aperture iris diaphragm and field iris diaphragm Halogen Bulb 12V/100W,AC85V-230V Brightness adjustable |
|
Polarizing Device |
Analyzer rota-table 360°, Polarizer & can be seen out of light path |
|
Filter |
Green,Blue,Neutral |
|
Checking Tool |
0.01mm Micrometer |
Optional Accessory:
|
Eyepiece:WF15X/17mm,WF20X/12.5mm |
|
objective:infinite Plan Long working distance B&D objectives 80X/0.70（W.D.3.1mm）,100X/0.80（W.D.3.01mm） |
|
DIC Device |
|
Photography attachment and CCD C-mount 0.5X,0.57X,0.75X 1.3Mega,2.0Mega,3.0Mega,5.0Mega,10.0Mega pixels |
|
CMOS Digital camera eyepiece |
|
CCD Camera,colour 1/3 High resolution 700 TV lines |
|
Two-dimensional measurement software |
|
Metallurgical image analysis software |
|
Micrometer eyepiece |
|
Various Industrial Camera |
