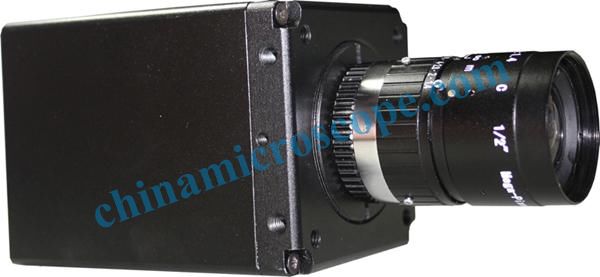

Parameter list of products一MIC-GE CMOS Camera

Product Model

GE-36C

GE-36M

GE-130M

GE-500C

GE-500M

Effective pixel

752H×480V

752H×480V

1280H×1024V

2592H×1944V

2592H×1944V

Pixel size

6.0µm×6.0µm

6.0µm×6.0µm

5.2μm×5.2μm

2.2μm×2.2μm

2.2μm×2.2μm

Optic size

1/3-inch

1/3-inch

1/2-inch

1/2.5-inch

1/2.5-inch

Output Color

Color

Monochrome

Monochrome

Color

Monochrome

Sampling bit

8-bit from10 inthe election

8-bit from10 inthe election

8-bit from10 inthe election

8-bit from10 inthe election

8-bit from10 inthe election

Frame rate

752×480 :60FPS

752×480 :60FPS

1280×1024 :30FPS

2592×1944 :15FPS

2592×1944 :15FPS

Exposal Mode

frame exposure

frame exposure

Electronic rolling shutter

Electronic rolling shutter

Electronic rolling shutter

Sensitivity
（550nm）

4.8V/lux-sec

4.8V/lux-sec

2.1V/lux-sec

1.4V/lux-sec

1.4V/lux-sec

Dynamic Range

>55dB Linear Mode
>80dB-100dBHighDynamicRange

>55dB Linear Mode
>80dB-100dBHighDynamicRange

68.2dB

70.1dB

70.1dB

Lens mount

C、CS

Output

Gigabit Ethernet (GigE) output <-compatible Fast Network>

Transmission distance

Directly to the PC up to 100 meters short

Control signal

4 I / O input (external trigger acquisition), 4 I / O output (flash sync), I / O interface, all the opto isolation; With anti-blink function; external trigger to provide synchronization trigger, asynchronous trigger mode;

External power supply

9V-12V

Provides software

Automatically install the driver of a button; provide Windows SDK development kit (VC, VB, C #), support for Labview, providing OCX controls; IP address of the top software can be modified; supports multiple cameras simultaneously, switching work; the application layer can switch the display frame rate; Overall gain, contrast adjustable; auto white balance, auto exposure

Operating System

Support Windows 2000、Windows XP、Windows Vista、Windows7;
Full support for 32-bit, 64-bit operating system

Dimension

58mmx58mmx80mm
