Specification |

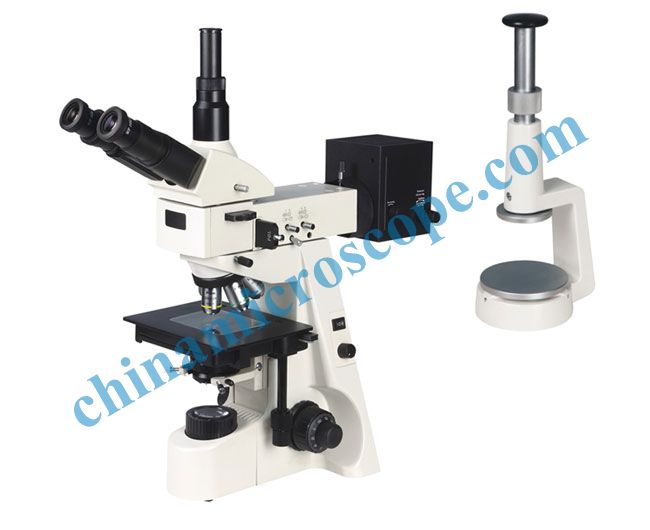

J-M6JB |
J-M6JBT |
||
|
Viewing Head |
Compensation Free Binocular Head Inclined at 30°（55mm-75mm） |
● |
|
|
|
Compensation Free Trinocular Head Inclined at 30°（55mm-75mm） |
|
● |
||
|
Eyepiece |
WF10×/22mm |
● |
● |
|
|
WF10×/20mm,crosshair with reticule 0.1mm |
● |
● |
||
|
Nosepiece |
Quadruple nosepiece |
● |
● |
|
|
Objective |
Infinity Plan metallurgical objective |
4×/0.1W.D.29.4mm |
● |
● |
|
10×/0.25W.D.16mm |
● |
● |
||
|
20×/0.4W.D.10.6mm |
● |
● |
||
|
40×/0.6W.D.5.4mm |
● |
● |
||
|
Stage |
Double layer mechanical stage |
● |
● |
|
|
Stage Size:180mm×150mm |
||||
|
Moving Range:75mm×50mm |
||||
|
Focusing |
Coaxial coarse ＆fine focusing adjustment With rack and pinion mechanism. Fine focusing scale value0.002mm |
● |
● |
|
|
Condenser |
N.A.1.25Abbe Condenser with iris diaphragm ＆filter |
● |
● |
|
|
Light Source |
Epi-Kohler illumination with aperture iris diaphragm and Field iris diaphragm |
● |
● |
|
|
Transmission illumination 12V/30W.AC85V230V Adjustable Brightness |
● |
● |
||
|
Polarizing Device |
Analyzer rotatable360,°Polarizer ＆Analyzer can be moved in/out of the optical path |
● |
● |
|
|
Filter |
Flashboard type filters(green ,blue neutral) |
● |
● |
|
|
Checking Tool |
0.01mm Micrometer |
● |
● |
|
|
Optional Accessory |
Two-dimensional measure software |
|||
|
Professional metallurgical image analysis software |
||||
|
micrometer eyepiece |
||||
|
1.3Mega、2.0 Mega、3.0 Mega,5.0 Mega pixels CMOS Digital camera eyepiece |
||||
|
Photography attachment and CCD Adapter 0.5×、0.57×、0.75× |
||||
|
Infinity Plan metallurgical objective: 50×/0.55W.D.5.1mm，80×/0.75W.D.4mm、100×/0.8W.D.3mm |
||||
|
Planishing tool |
||||
|
CCD Camera, colour1/3″High resolution 520 TV lines |
||||
