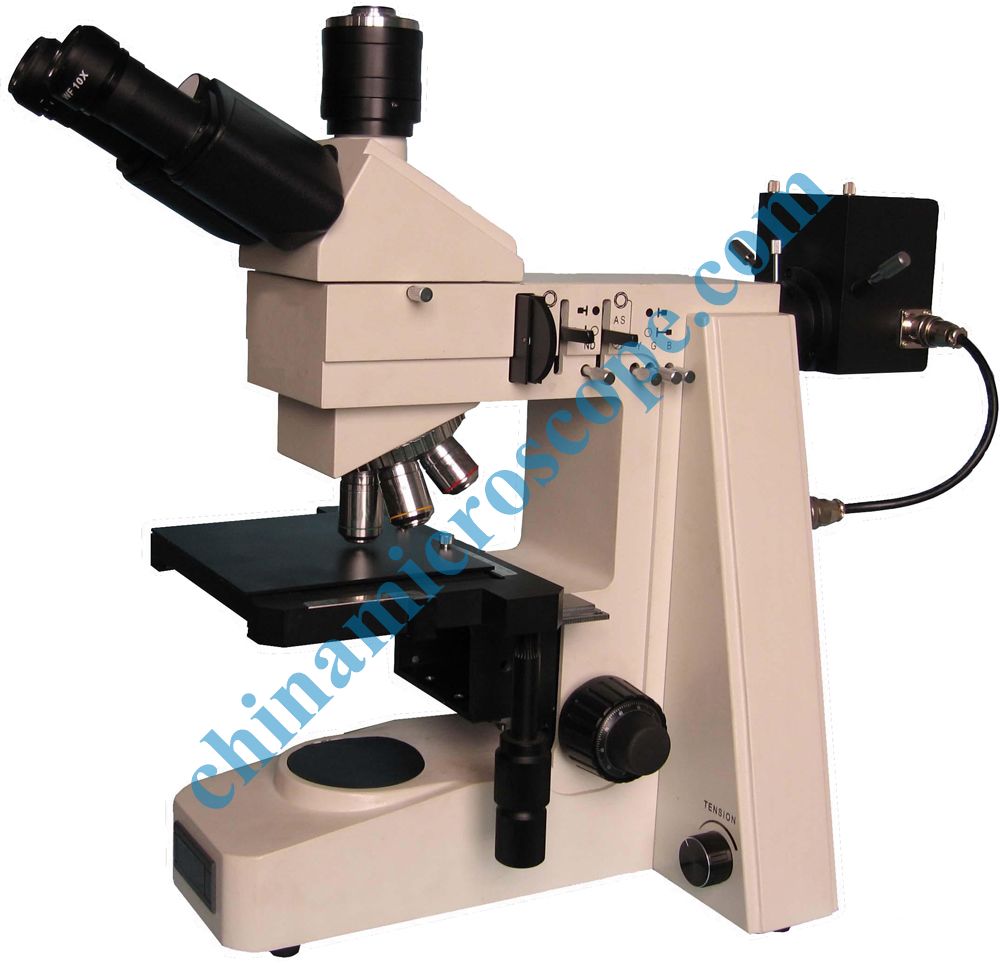

High upright metallographic microscope MIS-SM1 series

High upright metallographic microscope (bright field) MIS-SM1B

High upright metallographic microscope (dark field) MIS-SM1BD

Brief Introduction:

New microscope system, MIC-SM1 Series High upright optical microscope; it has excellent optical properties and multiple functions of the observation.

Specification：

Optical System: UIS infinity optical system.

Objective: unlimited flat-field far exceeds the long working distance objective lens (MIC-SM1B Type)

[Long working distance objective lens shading field metallography (MIC-SM1BD-type)]

4 × (29.4 mm), 10 × (16.0 mm), 20 × (10.5 mm), 40 × (5.4mm).

Eyepiece: large field of view of the high-eye point of flat-field eyepiece 10 × (φ26), 15 × (φ17) (buy).

Observation tube: φ26 field, trinocular tube with an inclination of 30 °, 1 / 2 "CCD optical appropriate, the standard C interfaces.

Lighting system: lighting Kohler reflection, polarization devices, 12V50W halogen, digital voltage meter, Built-in filter (yellow, green, blue, neutral).

Focus System: Coarse micro coaxial, travel 40 mm.

Contents loading table: XY movement range 55 × 80 mm, right hand (or left) hand wheel coaxial low.

Converters: tin converters.

Power System: 90 ~ 260V/50 ~ 60Hz

Optional：

1．12V100W halogen

2．Professional digital camera interface

3．Flat-field unlimited far extra long work distance objective lens（MIC-SM1B）

[long work distance bright dark field metallographic objective lens（MIC-SM1BD)]

50×（9.09mm）    60×（7.01mm）    100×（6.38mm）
