Parts

Specification

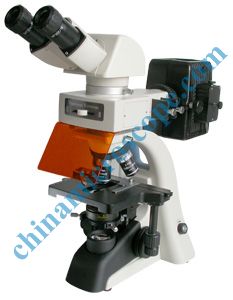

FY-2B

FY-2T

Head

Binocular head

Trinocular head

Microscope Main Body　

Optical System

Infinity optical system

●

●

Total Magnification

40X-1600X

●

●

Eyepiece

Plan P10x/φ18mm

●

●

Plan P16x/φ14mm

●

●

Viewing Head

Infinity compensation binocular head, inclined 30°, interpupillary distance 55-75mm, 360° rotatable.

●

Infinity compensation trinocular head, inclined 30°, interpupillary distance 55-75mm, 360° rotatable.

●

Nosepiece

4 Holes revolving nosepiece, inward

●

●

Fluorescence Free Objective

FL4X

●

●

FL10X

●

●

FL40X(S)

●

●

FL63X(S)

FL100X(SO)

●

●

Focusing System

Coaxial coarse & fine focusing knob, coarse focusing range22mm, fine focusing graduation0.002mm

●

●

Stage

Double layer mechanical stage, size 160x142mm, moving range 76x52mm, can hold 2 slide

●

●

Condenser

Abbe condenser N.A.=1.25, with iris diaphragm, height adjustable

●

●

Transmit Illumination

Critical illumination

●

●

Transmit Light Source

Halogen lamp, 12V/20W, brightness adjustable

●

●

Base Power

Switch power, wide voltage AC100V-250V

●

●

Power Plug

220V/50Hz,Chinastandard

●

●

Supply according to customer requirement

Others

All TV head including CCD adapter

●

Fluorescence Attachment

B,G Exciting? Light Filter System

B（Blue），Exciting light filter system EX490 DM510 BA515

●

●

G（Green）Exciting light filter system EX545 DM580 BA590

●

●

O: Ordinary transmit light system

●

●

Epi-Fluorescent Mercury Light Source

100WHBO Ultra Hi-voltage Spherical Mercury Lamp

●

●

Power Case

AC 220V/60Hz, fuse 250V/8A

●

●

Protection Barrier

Barrier to Resist the Uiraviolet Light

●

●

Oil

Fluorescent free objectives

●

●

Packing

plastic + carton

●

●

Optional Accessories

1.U,V filter system
2.Assistant exciting light filter system EX450-490
3. Video adapter, digital camera adapter
4.CCD camera (0.47Mpixel), Digital CCD camera (2M,3.1M,5Mpixel)
