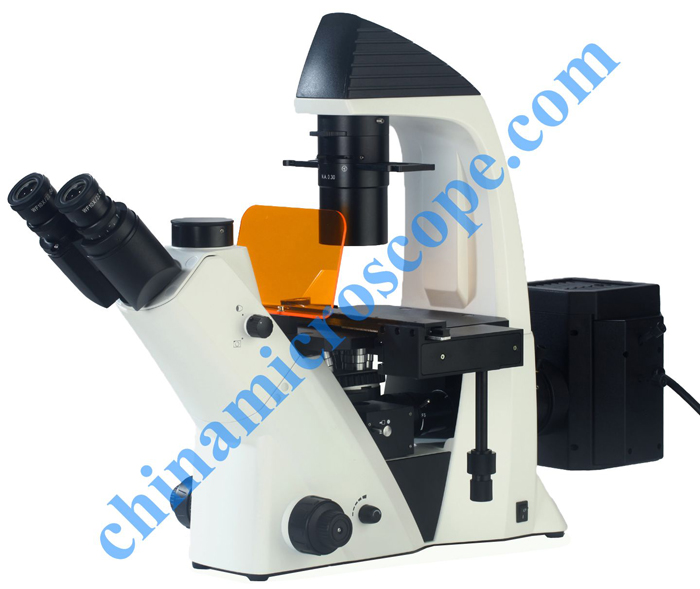

XDS-4BF is MIC TECH’s newly developed inverted fluoresecent microscope

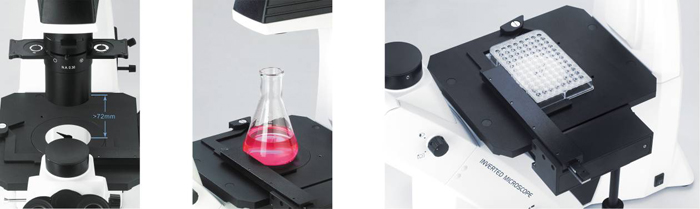

Long working distance condenser N.A. 0.30，Working distance：72mm
Working distance: 195mm (without condenser)，available for extra high culture dish
Large size stage, convenient for research. Size：240mm(X)× 210(Y)mm

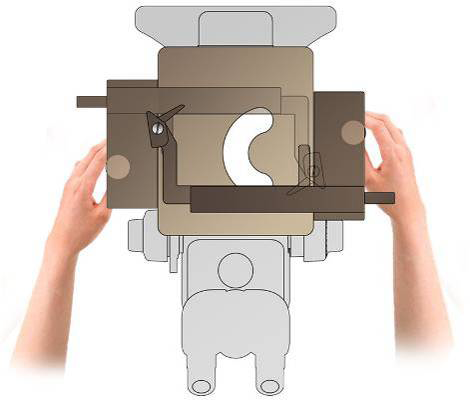

Mechanical stage available for 96 holes plate. Moving range：128mm(X)× 80(Y)mm

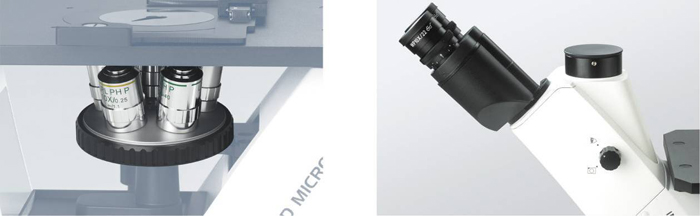

Large diameter quintuple nosepiece can be installed more objectives, more convenient for using.
Light distribution (both): 100 : 0 (100% for eyepiece);
80 : 20 (80% for trinocular head and 20% for eyepiece)
Culture Dish Holder
Φ65mm Φ54mm Φ35mm
Knob can be changed by left or right
|
Objective Parameter List (Cover-glass thickness1.1mm) |
|||
|
|
Objectives |
N.A. |
Working distance (mm) |
|

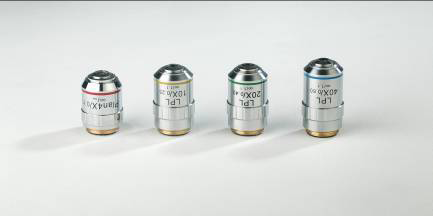

LWD Infinity Plan Objectives |
LPL 4× |
0.11 |
12.1 |
|
LPL 10× |
0.25 |
8.3 |
|
|
LPL 20× |
0.40 |
7.2 |
|
|
LPL 40× |
0.60 |
3.4 |
|
|

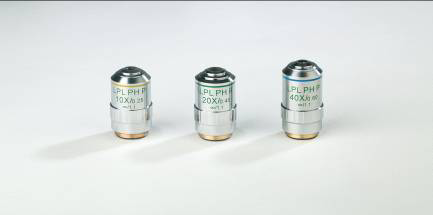

LWD Infinity Plan Phase Contrast Objectives |
LPL Ph P 10× |
0.25 |
8.3 |
|
LPL Ph P 20× |
0.40 |
7.2 |
|
|
LPL Ph P 40× |
0.60 |
3.4 |
|
XDS-4BF Inverted Biological Microscope Outfits
|
Item |
XDS-4BF Specification |
Outfits |
|
|
Eyepiece |
WF10×／22mm(23mm is optional) |
●● |
|
|
LWD Infinity Plan Objectives |
LPL 4×／0.11 |
W.D.=12.1mm |
○ |
|
LPLAN 10×／0.25 |
W.D.=8.3mm |
● |
|
|
LPLAN 20×／0.40 |
W.D.=7.2mm |
● |
|
|
LPLAN 40×／0.60 |
W.D.=3.4mm |
● |
|
|
LWD Infinity Plan Phase Contrast Objectives |
LPL Ph P 10×／0.25 |
W.D.=8.3mm |
○ |
|
LPL Ph P 20×／0.40 |
W.D.=7.2mm |
● |
|
|
LPL Ph P 40×／0.60 |
W.D.=3.4mm |
○ |
|
|
Annular Spot |
10× |
○ |
|
|
20×/ 40× ( for both 20× and 40× ) |
● |
||
|
Seidentopf Trinocular Head |
Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0(100% for eyepiece) 80:20 (80% for trinocular head, and 20% for eyepiece) |
● |
|
|
Nosepiece |
Quintuple |
● |
|
|
Mechanical Stage |
Stage size: X×Y: 210×241mm， Round slide size：Φ118mm, |
|
|
|
Attached mechanical stage (available for 96 holes plate, moving range X×Y：128×80mm.) |
● |
||
|
|
|||
|
Culture Dish Holder |
65mm |
○ |
|
|
54mm |
● |
||
|
35mm |
○ |
||
|
Condenser |
Long working distance, Quickly detachable , N.A.0.3, Working distance: 72mm (with condenser),195mm(without condenser). |
● |
|
|
Koehler Illumination |
6V/30W(input voltage：100V～240V) |
● |
|
|
Filter |
Blue |
● |
|
|
Green |
● |
||
|
Amber |
○ |
||
|
Grey |
○ |
||
|
C-mount |
1× C-Mount (better for digital photograph) |
○ |
|
|
0.5× C-Mount ( focus adjustable, better for digital camera) |
○ |
||
|
Adaptor for Digital Photograph |
Use for CANON／NIKON／OLYMPUS etc. |
○ |
|
|
Epi Fluorescence Illumination |
Epi fluorescence unit , field diaphragm，center adjustable. |
○ |
|
|
100W mercury lamp (OSRAM) |
○ |
||
|
B, G, V, UV fluorescence filters can be chosen. |
○ |
||
|
Digital mercury lamp power box (input voltage:100V～240V) |
○ |
||
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved the right to
make design modification and changes without notice.
Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs
Net Weight: 13.5 kgs

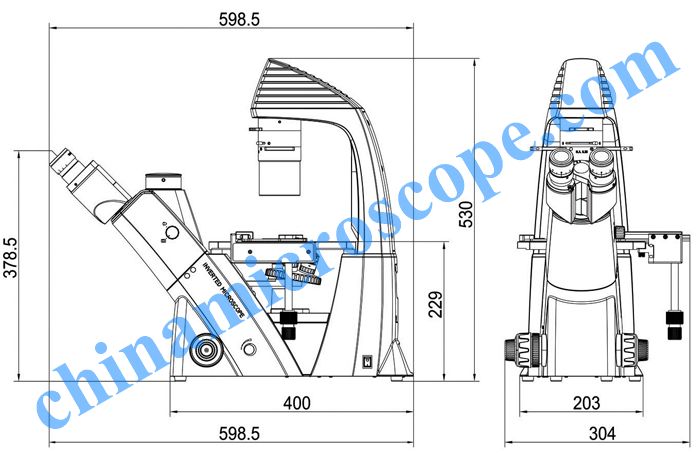

XDS-4BF Inverted Biological Microscope Size(mm)

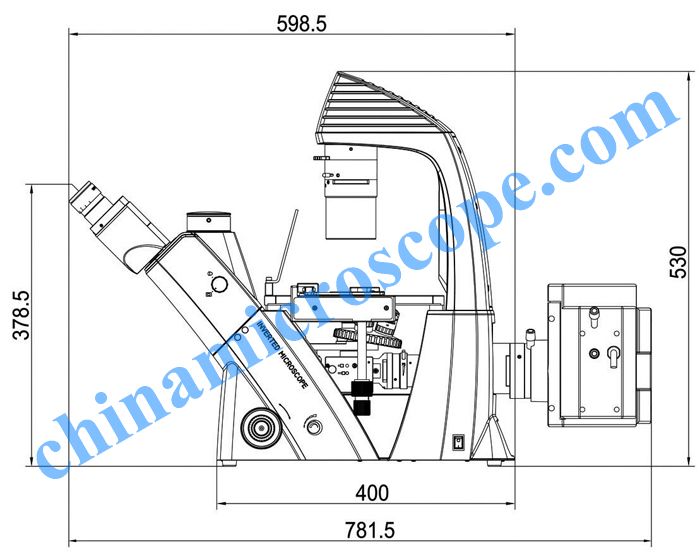

XDS-4BF Inverted Fluorescence Microscope Size(mm)

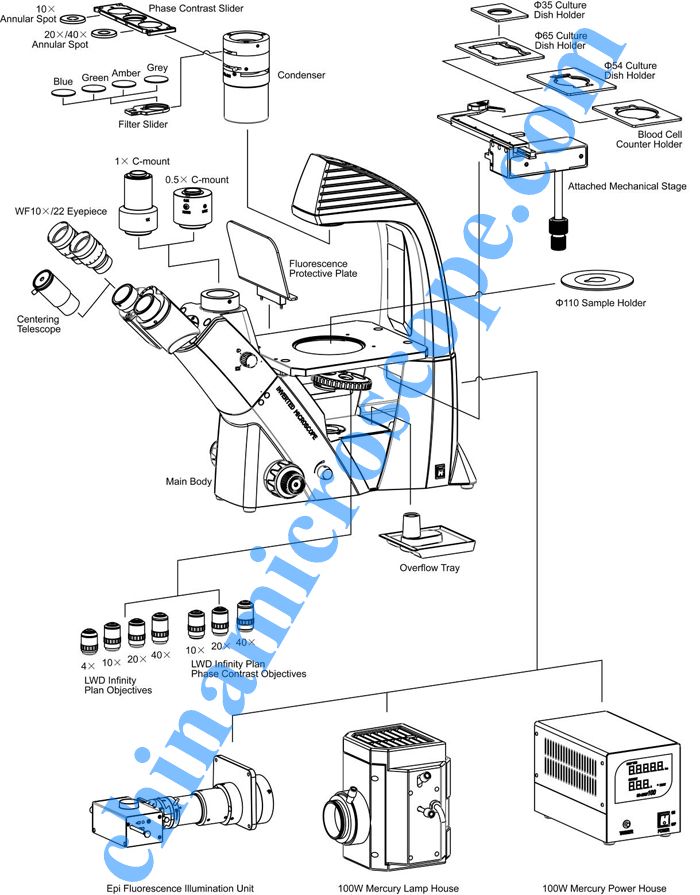

XDS-4BF Inverted Biological Microscope General Layout Diagram
