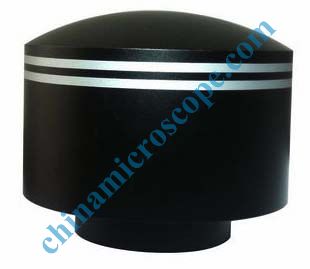

MIC-TS3Mpixel cmos camera
|
Sensor type |
Color CMOS |
||
|
Imaging sensor |
size |
1/2" |
|
|
Pixel size |
3.2μm×3.2μm |
||
|
Effective pixels |
2048x1536 |
||
|
Max resolution |
2048x1536 |
||
|
Sensitivity |
1.0V/lux-sec 550nm |
||
|
Dynamic Range |
>43dB |
||
|
Exposure Controls |
Automatic |
||
|
Gain Control |
Automatic |
||
|
White Balance |
One shot automatic control |
||
|
Image Frame Rate |
11fps @ 2048x1536 15fps @ 1024×768; 30fps @ 640×480. |
||
|
Control interface |
USB 2.0 |
||
|
Lens Mount |
Standard C/CS-mount |
||
|
Control Software Operating System |
Windows XP,Vista, 7 (32 bit and 64 bit) |
||
|
Power |
USB 2.0 supported |
||
|
Operating Temp |
0 to50 °C |
||
|
Dimensions |
55mm×70mm×90mm |
||
|
Weight |
115g |
||
|
Recommended PC Requirements |
Pentium 4, 1.3 GHz or higher |
||
|
512 MB RAM |
|||
|
200/500 MB hard drive free space or more |
|||
|
USB 2.0 Port |
|||
|
Windows XP,Vista, 7 |
|||
|
Application |
Education, Industrial microscopy, Live cell image, Medical, Semiconductor inspection, Metrology |
||
|
Packing Contents |
3.0MP Microscope Camera |
1 |
|
|
USB 2.0 cable |
1 |
||
|
CD with control software S-Viewer and driver |
1 |
||
|
Camera User Manual |
1 |
||
|
Optional accessories |
Reducing lens 0.45X |
||
|
Adapter ring (23.2mmto30mm) |
|||
|
Adapter ring (23.2mmto30.5mm) |
|||
MIC-TS5Mpixel cmos camera
|
Sensor type |
Color CMOS |
||
|
Imaging sensor |
size |
1/2.5" |
|
|
Pixel size |
2.2μm×2.2μm |
||
|
Effective pixels |
2592x1944 |
||
|
Max resolution |
2592x1944 |
||
|
Sensitivity |
1.4V/lux-sec 550nm |
||
|
Dynamic Range |
41dB |
||
|
Exposure Controls |
Automatic |
||
|
Gain Control |
Automatic |
||
|
White Balance |
One shot automatic control |
||
|
Image Frame Rate |
6fps @ 2592x1944 15fps @ 1024×768; 30fps @ 640×480. |
||
|
Control interface |
USB 2.0 |
||
|
Lens Mount |
Standard C/CS-mount |
||
|
Control Software Operating System |
Windows XP,Vista, 7 (32 bit and 64 bit) |
||
|
Power |
USB 2.0 supported |
||
|
Operating Temp |
0 to50 °C |
||
|
Dimensions |
55mm×70mm×90mm |
||
|
Weight |
115g |
||
|
Recommended PC Requirements |
Pentium 4, 1.3 GHz or higher |
||
|
512 MB RAM |
|||
|
200/500 MB hard drive free space or more |
|||
|
USB 2.0 Port |
|||
|
Windows XP,Vista, 7 |
|||
|
Application |
Education, Industrial microscopy, Live cell image, Medical, Semiconductor inspection, Metrology |
||
|
Packing Contents |
5.0MP c-mount usb Microscope Camera |
1 |
|
|
USB 2.0 cable |
1 |
||
|
CD with control software S-Viewer and driver |
1 |
||
|
Camera User Manual |
1 |
||
|
Optional accessories |
Reducing lens 0.45X |
||
|
Adapter ring (23.2mmto30mm) |
|||
|
Adapter ring (23.2mmto30.5mm) |
|||
MIC-TS9Mpixel cmos camera
|
Sensor type |
Color CMOS |
||
|
Imaging sensor |
size |
1/2.3"CMOS |
|
|
Pixel size |
1.75μm×1.75μm |
||
|
Effective pixels |
3488x2616 |
||
|
Max resolution |
3488x2616 |
||
|
Sensitivity |
0.31V/lux-sec 550nm |
||
|
Dynamic Range |
39dB |
||
|
Exposure Controls |
Automatic |
||
|
Gain Control |
Automatic |
||
|
White Balance |
One shot automatic control |
||
|
Image Frame Rate |
2fps @ 3488×2616; 6fps @ 1600×1200; 20fps @ 1280×960; 30fps @ 800×600; 30fps @ 640×480. |
||
|
Control interface |
USB 2.0 |
||
|
Lens Mount |
Standard C/CS-mount |
||
|
Control Software Operating System |
Windows XP,Vista, 7 (32 bit and 64 bit) |
||
|
Power |
USB 2.0 supported |
||
|
Operating Temp |
0 to50 °C |
||
|
Dimensions |
55mmx70mmx90mm |
||
|
Weight |
115g |
||
|
Recommended PC Requirements |
Pentium 4, 1.3 GHz or higher |
||
|
512 MB RAM |
|||
|
200/500 MB hard drive free space or more |
|||
|
USB 2.0 Port |
|||
|
Windows XP,Vista, 7 |
|||
|
Application |
Education, Industrial microscopy, Live cell image, Medical, Semiconductor inspection, Metrology |
||
|
Packing Contents |
9.0MP Digital Microscope Camera |
1 |
|
|
USB 2.0 cable |
1 |
||
|
CD with control software S-Viewer and driver |
1 |
||
|
Camera User Manual |
1 |
||
|
Optional accessories |
Reducing lens 0.45X |
||
|
Adapter ring (23.2mmto30mm) |
|||
|
Adapter ring (23.2mmto30.5mm) |
|||
