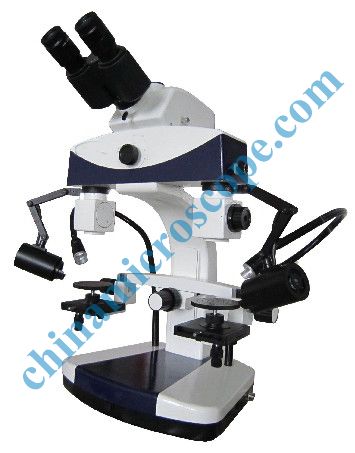

MIC-5 Comparison Microscope

Through optical magnifying, joint and superposition, analyze and compare two images of object field coverage which is observed by the same set of eyepieces to find minimum difference in microscopy and microscopy. It’s widely applied to distinguish minimum difference, such as bullet, tool mark and seal.

There are 5 kinds of objectives lens (0.64x,1.0x,1.6x,2.5x,4x)for use. With good synchronicity and additional objective lens (0.4x),objective field coverage  can be expanded to φ60mm,also cut and overlapped. Equipped with advanced strong power LED lamp, air -cooled strong light source, digital camera of 3 million pixel HD CCD, digital interface, view and camera simultaneously.

Total magnification: 5x-105x

Bridge-body magnification: 1.3x

Eyepiece: 10x (φ24mm) 20x(φ10mm)

Objective lens: 0.64x, 1.0x, 1.6x, 2.5x, 4x, additional low multiple 0.4x objective lens.

Working distance: 100mm

Objective field coverage: φ2mm-φ60mm.

Size of object stage: 100mmx100mm

Moving scope of object stage: width wise 54mm lengthwise 54mm vertical 54mm.

Horizontal moving scope of two stages: 54mm.scope of synchronous lift up and down 54mm.

Camera system: equipped with 3 million pixel HD digital camera.USB2.0 interface. resolution 1024x768.

Illumination: high power LED light source. Brightness or facula adjusted.

Power: IC 220V IN.DC 12V out. national safety standard.

Accessories for choice: digital camera, MIC criminal investigation image processing software, computer.
