Specification |
Model |
||
|

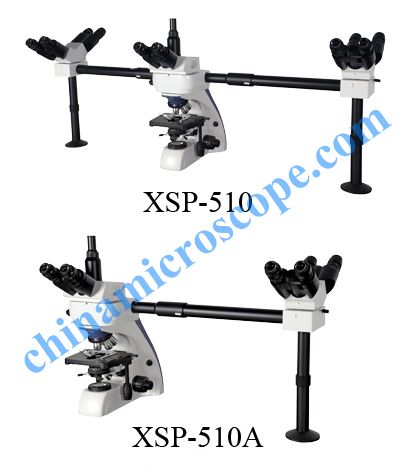

XSP-510 |
XSP-510A |
||
|
Optical system |
Infinite Optical System |
● |
● |
|
Viewing Head |
Compensation Free Trinocular Head Inclined at 30° ( 50mm-70mm ) |
● |
● |
|
4-Binocular head,interpupillary distance adjustable 50mm-75mm |
● |
|
|
|
2-Binocular head, Interpupillary distance adjustable 50mm-75mm |
|
● |
|
|
Eyepiece |
Plan WF10X/22mm |
● |
● |
|
Objective |
infinity plan objective 4X0.10 , 10X/0.25, 40X/0.65, 100X/1.25 Oil |
● |
● |
|
Nosepiece |
Quadruple Nosepiece |
● |
● |
|
Stage |
Double layers mechanical stage |
● |
● |
|
stage size : 180mmx 160mm |
|||
|
Moving range: 80mmx 50mm |
|||
|
Focusing |
Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.002mm |
● |
● |
|
Light Source |
Kohler illumination with aperture iris diaphragm and field iris diaphragm |
● |
● |
|
Halogen Bulb 12V/100W,AC85V-230V |
|||
|
brightness adjustable |
|||
|
Indicator |
LED cursor,brightness adjustable adjustable button.The cursor can be mover freely,any position of the image can be indicated. |
● |
● |
|
Optional Accessory |
Eyepiece WF15X/17mm,WF20X/12.5mm infinity plan objective 20X0.40,60X/0.85 infinity semi-plan objective 4X0.10 ,10X/0.25, 20X/0.40, 40X/0.65, 60X/0.85, 100X/1.25 Oil Photography attachment and CCD C-mount:0.5X,0.57X,0.75X 1.3Mega,2.0Mega,3.0Mega,5.0Mega,10.0Mega CMOS Digital camera eyepiece CCD Camera,colour1/3 High resolution 700 TV lines Image analysis software |
||
