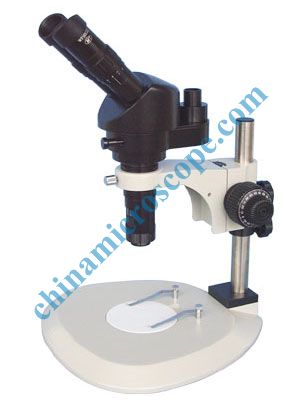

MIC TMM-00 series high-magnification erecting images zoom monocular video microscopes include TMM-00BT (non- coaxial illumination) and TMM-00BTC(coaxial illumination). Original design, characterized by exceed high-magnification, high-resolution， and can be doing video(or digital) displaying, take pictures using digital camera and eyepieces observing at the same time. The image is erecting by binocular eyepieces observing. They fit for observing， checking-up and measure analysis microcosmic surface of various objects.
|
Main technology Specifications: Exceed high-magnification. |
|
Standard eyepieces observing total magnification is 15X~100X. 1.5X~10X zoom magnification body, WFH10X/22 plane eyepieces. The working distance is82mm. |
|
It can be finished video displaying and eyepieces observing at the same time. The orientation of the observing image and the object is the same. The image is erecting. Choose to buy corresponding adapter, can connect CCD (CMOS) camera, digital camera or film camera. · Long life, environmental protection type many kinds of wavelength (white, purple, red, blue, yellow, green) high lightness LED coaxial illuminator (use in TMM-00BTC). Binocular eye tubes inclined 45°. |
|
The range of adjusting the diopter is ±6 Interpupillary distance adjustment range 53~75mm. |
|
The range of adjusting focus: Hand wheel adjusting focus is50mm. The height of round post is242mm |
|
The measurement to match between the support and the main body is Φ45mm. WFH10X/22、SWF15X、SWF20X、SWF30X four kinds magnification eyepieces and 0.5X、0.75X、1X、1.5X、2X、5X auxiliary objectives to be matched. |
Standard specification：
|
|
TMM-00BT |
TMM-00BTC |
|
Main body ZDH15100BT |
● |
|
|
Main body ZDH15100BTC |
|
● |
|
Eyepieces WFH10X/22 |
●● |
●● |
|
Eye shields |
●● |
●● |
|
Stand SD1J -D |
● |
|
|
Stand SD11J-D |
|
● |
|
LED illuminator MLC1000 |
|
● |
Main optical data: M means magnification, V means visual field, W means Working distance (mm), A means Auxiliary objective
|
Eyepiece |
Auxiliary objective |
Main body |
0.5X |
0.75X |
1.5X |
2X |
5X |
|||||
|
10X/Φ22 |
M |
15X~100X |
7.5X~50X |
11.25X~75X |
22.5X~150X |
30X~200X |
75X~500X |
|||||
|
V |
Φ14.67~Φ2.2 |
Φ29.33~Φ4.4 |
Φ19.56~Φ2.93 |
Φ9.78~Φ1.47 |
Φ7.33~Φ1.1 |
Φ2.93~Φ0.44 |
||||||
|
15X/Φ17 |
M |
22.5X~150X |
11.25X~75X |
16.875X~112.5X |
33.75X~225X |
45X~300X |
112.5X~750X |
|||||
|
V |
Φ11.33~Φ1.7 |
Φ22.67~Φ3.4 |
Φ15.11~Φ2.27 |
Φ7.56~Φ1.13 |
Φ5.67~Φ0.85 |
Φ2.27~Φ0.34 |
||||||
|
20X/Φ14 |
M |
30X~200X |
15X~100X |
22.5X~150X |
45X~300X |
60X~400X |
150X~1000X |
|||||
|
V |
Φ9.33~Φ1.4 |
Φ18.67~Φ2.8 |
Φ12.44~Φ1.87 |
Φ6.22~Φ0.93 |
Φ4.67~Φ0.7 |
Φ1.87~Φ0.28 |
||||||
|
30X/Φ9 |
M |
45X~300X |
22.5X~150X |
33.75X~225X |
67.5X~450X |
90X~600X |
225X~1500X |
|||||
|
C |
Φ6~Φ0.9 |
Φ12~Φ1.8 |
Φ8~Φ1.2 |
Φ4~Φ0.6 |
Φ3~Φ0.45 |
Φ1.2~Φ0.18 |
||||||
|
W |
82 |
175 |
117 |
54 |
35 |
10.1 |
||||||
|
Magnification range of zoom body 1.5X～10X |
||||||||||||
|
Video displaying: |
||||||||||||
|
|
CCD adapter |
|||||||||||
|
0.5X |
1X |
|||||||||||
|
1X |
M |
0.75X~5X |
M |
1.5X~10X |
||||||||
|
V |
4.8X6.4~0.72X0.96 |
V |
2.4X3.2~0.36X0.48 |
|||||||||
|
W |
82 |
|||||||||||
|
0.5X |
M |
0.375X~2.5X |
M |
0.75X~5X |
||||||||
|
V |
9.6X12.8~1.44X1.92 |
V |
4.8X6.4~0.72X0.96 |
|||||||||
|
W |
175 |
|||||||||||
|
0.75X |
M |
0.5625X~3.75X |
M |
1.125X~7.5X |
||||||||
|
V |
6.4X8.53~0.96X1.28 |
V |
3.2X4.27~0.48X0.64 |
|||||||||
|
W |
117 |
|||||||||||
|
1.5X |
M |
1.125X~7.5X |
M |
2.25X~15X |
||||||||
|
V |
3.2X4.27~0.48X0.64 |
V |
1.6X2.13~0.24X0.32 |
|||||||||
|
W |
54 |
|||||||||||
|
2X |
M |
1.5X~10X |
M |
3X~20X |
||||||||
|
V |
2.4X3.2~0.36X0.48 |
V |
1.2X1.6~0.18X0.24 |
|||||||||
|
W |
35 |
|||||||||||
|
5X |
M |
3.75X~25X |
M |
7.5X~50X |
||||||||
|
V |
0.96X1.28~0.144X0.192 |
V |
0.48X0.64~0.072X0.096 |
|||||||||
|
W |
10.1 |
|||||||||||
|
Magnification range of zoom body 1.5X～10X |
||||||||||||
|
|
||||||||||||
