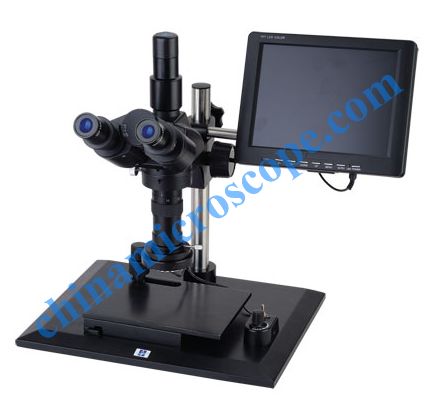

MIC-DS industry Video Microscope Configuration
|
Item |
standard |
MIC-DS-B3 |
|
Viewing head |
Trinocular head of articulated type |
● |
|
Zoom body |
0.7x-4.5x |
● |
|
eyepiece |
WF10X/18mm （with eyepiece cover） |
● |
|
Objective |
1x |
● |
|
CCD eyepiece |
0.5x |
● |
|
AM35 Camera |
AV output |
● |
|
8’’ LCD display screen |
AV input/VGA input，with cross，Multi-Language |
● |
|
illumination |
LED ring lamp，adjustable brightness |
● |
|
LCD display screen |
360°adjustable |
● |
|
Mobile stage |
Stage size：135x175mm |
○ |
|
Stander |
Base size：325（L)*265(W)*290(H)mm |
● |
|
Mounting holes size for focus arm |
● |
Note ●: Item included ○: Item for optional
MIC-DS Industry Video Microscope optical data： Note: zoom rang 0.7x-4.5x
|
Objective |
CCD eyepiece |
eyepiece |
|||
|
0.5X |
|||||
|
0.5X |
Video Magnification |
5.9X-38.1X |
visual Magnification |
3.5X-22.5X |
10x |
|
Field of video(mm) |
Φ34.3-Φ5.3 |
Field of visual |
Φ51.4-Φ8 |
||
|
Work distance(mm |
198 |
||||
|
0.75X |
Video Magnification |
8.9X-57.2X |
visual Magnification |
5.3X-33.8X |
|
|
Field of video(mm) |
Φ22.9-Φ3.6 |
Field of visual |
Φ34.2-Φ5.3 |
||
|
Work distance(mm) |
131 |
||||
|
1X |
Video |
11.9X-76.2X |
visual Magnification |
7X-45X |
|
|
Field of video(mm) |
Φ17.1-Φ2.7 |
Field of visual |
Φ25.7-Φ4 |
||
|
Work distance(mm) |
96 |
||||
|
1.5X |
Video Magnification |
17.8X-114.3X |
visual Magnification |
10.5X-67.5X |
|
|
Field of video(mm) |
Φ11.4-Φ1.8 |
Field of visual |
Φ17.1-Φ2.7 |
||
|
Work distance(mm) |
63 |
||||
|
2X |
Video Magnification |
23.7X-152.4X |
visual Magnification |
14X-90X |
|
|
Field of video(mm) |
Φ8.6Φ1.3 |
Field of visual |
Φ12.9-Φ2 |
||
|
Work distance(mm) |
46 |
||||
