9.7inch PAD Android Digital Microscope Camera
Model Number: MIC-PAD550
Highlights：

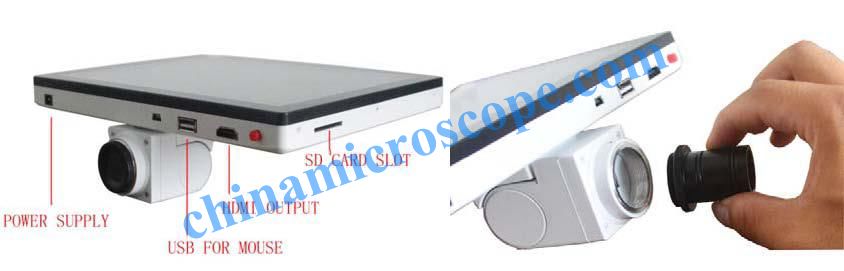

9.7inch PAD Android Digital Microscope Camera, Screen Definition 1024*768 C mount, High Resolution 5MP 1/2.5inch cmos Sensor Support WIFI output, HDMI output, Mouse input and SD card Free software to take photo, record video and measurement
Introduction
The MIC-PAD550 is the third generation smart digital microscopic camera, which inherits the perfect integration concept of MIC-PAD500 on the functions of digital imaging, storage, processing and transmitting. Equipped with the most stable hardware and software system, binding professional multi-functional measurement software, which is R&D by ourselves. it is easy to achieve all your desires of exploration and discover the mystery of the microscopic kingdom. Very Important, Compare to other model PAD camera, this model is quite cheap and performance also very good. So we think this model can be well accepted by customers and will be widely used all over the world,
|
Camera Sensor |
Aptina MT9P001 |
|
|
Scanning Mode |
Line |
|
|
Sensor Size |
1/2.5 inch (4:3) |
|
|
Pixels Size |
5.70mm(H)x4.28mm(V) |
|
|
7.13mm(diagonal) |
||
|
Effective Resolution |
2592H x 1944V |
|
|
Pixels Size |
2.2µm x 2.2µm |
|
|
Dynamic Range |
66.5dB |
|
|
S/N Ratio |
40.5dB |
|
|
A/D Bits |
12-bit, on-chip |
|
|
Sensitivity |
0.53V/lux-sec(550nm) |
|
|
Video and Framerate |
1280x720 |
15fps |
|
640x480 |
30fps |
|
|
Exposure |
Auto Exposure |
|
|
Shutter Tyep |
Electronic Rolling Shutter |
|
|
Softwarei Function |
Snap, Video, Measurement |
|
|
Optional Output |
HDMI,WIFI |
|
|
SD Card |
Support |
|
|
Power Supply |
DC 5V2A |
|
|
PAD Size |
220*170*20mm |
|
|
Tablet GW |
1.1kg |
|
