XSP-NYF

Optical System

Infinite Optical System

●

Viewing Head

Compensation Free Trinocular Head Inclined at 30°，Interpupillary Distance 48-75mm

●

Eyepiece

Extra Wide Field Eyepiece EW10×/22

●

Nosepiece

Backward Quintuple Nosepiece

●

Objective

Objective Infinite Plan Achromatic Objective

4×

●

10×

●

20×

○

40×

●

100×

●

Infinite Plan Fluorescent Objective

4×,10×,20×,40×, 100×

○

Condenser

Swing Condenser NA 0.9/ 0.25

●

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division0.001mm

●

Stage

Double Layers Mechanical Stage 185×142/ 75×55 mm

●

Photo Attachment

○

Video Adapter

○

Kohler Illumination

External Illumination, Aspherical Collector, Halogen Lamp6V/ 30W

●

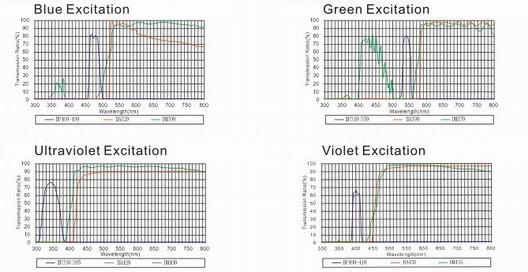

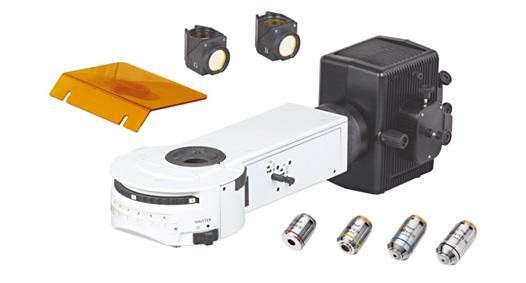

Reflected Light Source

Excitation

Dichroic Mirror

Barrier Filter

Blue excitation

BP460~490

DM500

BA520

●

Blue one excitation

BP460~495

DM505

BA510-550

○

Green excitation

BP510~550

DM570

BA590

●

Ultraviolet excitation

BP330~385

DM400

BA420

○

Violet excitation

BP400~410

DM455

BA455

○

Lamp

100W  HBO Ultra Hi-voltage Spherical Mercury Lamp

●

Protection barrier

Barrier to Resist the Ultraviolet Light

●

Power Supplier

Power Supplier NFP-1, 220V/ 110V  interchangeable , Digital Display

●

Immersion Oil

Fluorescent Free Oil

●

Neutral ND25/ ND6 Filter

○

Centering Target

○
