MIC-600 High-definition Minimum illumination Micro-industrial Cameras
CHARACTERISTIC
OF PRODUCTS:
1、Minimum illumination micro-industrial
cameras used: SONY CCD sensor and a better life, better reliability and
stability.
2、DSP digital signal processing technology,
so that a clearer image, outline more clearly defined and stronger contrast.
3、Minimum illumination micro-industrial
cameras excellent eliminate interference ultrasound in the signal、 a high-quality images and high sensitivity.
4、Using 3 D digital fall noise
system, can be more clear color images.
5、AGC: advanced digital backlight
compensation function
6、Minimum illumination micro-industrial
cameras compact and cabinet appearance, lower power consumption, suit using of
narrow setting space.
7、Minimum illumination micro-industrial
cameras can be choose strong light adjustable LED light source
APPLICATIONS:
industrial inspection、 industrial measurement、 medical imaging、 image recognition、 orientation、 industrial supervising、 instrumentation、 machine vision and others industrial
automation area.
SPECIFICATIONS:
|
MODEL |
616H |
616HC |
620H |
620HC |
625H |
625HC |
|
Image Sensor Device |
1/3" Sony Ex-view CCD |
|||||
|
Effective Pixels |
PAL: (H)752×(V)582 |
|||||
|
System of Signal |
PAL: 625 TVL, 50 Field/s |
|||||
|
Synchronous System |
Internal line lock |
|||||
|
Horizontal Resolution |
600line |
480 line |
600 line |
480 line |
600 line |
480 line |
|
Video output |
1Vp-p 75Ω , Negative |
|||||
|
White Balance |
Auto |
|||||
|
S/N Ratio |
> 46dB |
|||||
|
Gamma Correction |
0.45 |
|||||
|
Minimum illumination |
1.0 Lux |
0.05Lux |
1.0 Lux |
0.05Lux |
1.0 Lux |
0.05Lux |
|
Electronic Shutter |
PAL : 1/50~1/100,000s |
|||||
|
Fixed Lens |
f:3.7mmplane-taper Pinhole Lens or Customize Lens |
|||||
|
Power Requirement |
12V±10%DC， 100mA |
|||||
|
Operation Temperature |
-10℃～+50℃, RH 95% Max |
|||||
|
Storage Temperature |
-20℃～+60℃, RH 95% Max |
|||||
|

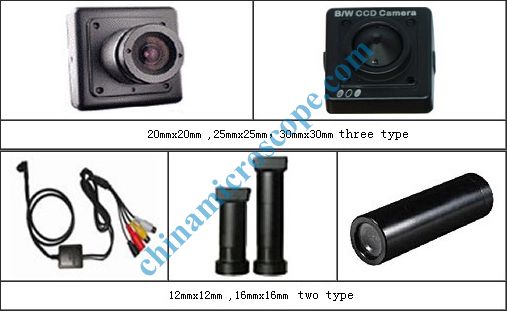

Dimension(mm) |
16x16mm |
20x20mm |
25x25x18.5mm |
|||
