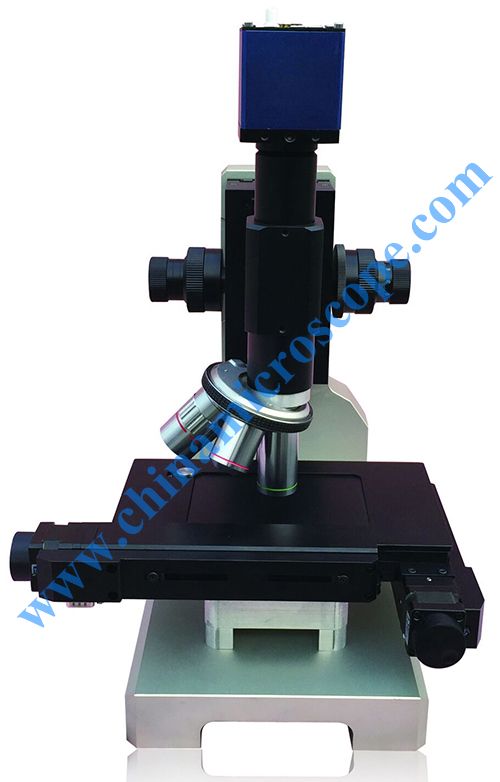

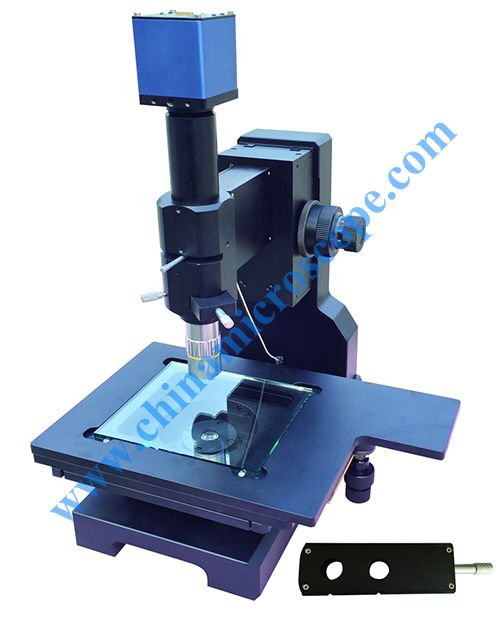

MIC-N10 DIC model microscope
MIC-N10 DIC model microscope with infinite optical system, long working distance Apo-objective, big stable main frame, precise focusing system. With LED coaxial transmitting light and LED reflecting light. Polarizing system polarizer can be 100° rotatable for polarizing orthogonal observation. DIC slot system is position changeable to have best DIC image. Wide field  monocular head, with high resolution camera for high precision pictures. Widely used on semi-conductor, electrical industry
Application:
1 Bright field observationbrightness adjustable coaxial illumination, for inspection on crystal, integrated circuit, precise industrial assembly, parts quality checking.
2 Transmitting lightbrightness adjustable transmitting illumination, especially for transparent sample checking, very good for LCD quality checking, users can clearly see the LED RGB module from the screen.
3 Polarizing observation inner fixed polarizing system, polarizer is fixed on the illumination system, analyzer is fixed on the image-forming system, 100° rotatable for polarizing orthogonal observation, good for metallurgical sample, can also be applied for mineral and chemical industry.

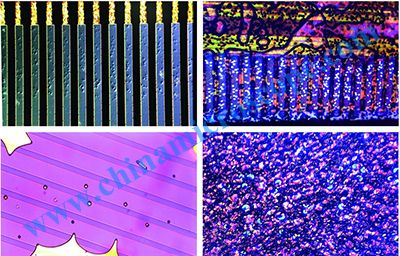

4 DIC observationinsert DIC lens system (Wollaston prism;) under bright field and polarizing orthogonal observation. As one of the best quality checking method, it does not have high requirement for your metallurgical sample, can show customers 3D image, something like relief shape, can have accurate judge on  granule, crack, cavity and etc. Users can see more details or something complicated structure compare with ordinary bright field, can be recorded in color format,  DIC is especially good for current-conducting plate in the LCDconducting particles can be seen very clearly under DIC observation with super high contrast

Specification

1. Infinite optical systemf=200mm

2. Mag.20X50X100X200X500X

3. Long working distance5~45mm

4. Focus range60mm

5. Working stage260X220mm; Glasses170X150mm

6. Moving rangeX±75mm Y±75mm

7. Both reflecting and transmitting illumination

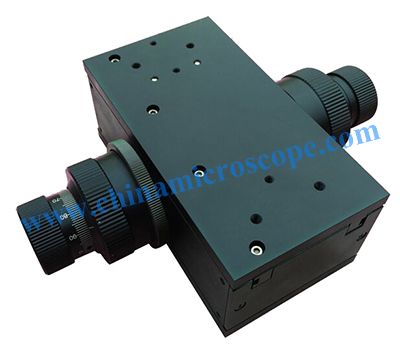

Can be customized to high precision auto-stage

1. Full automatic focus

2. Moving rangeX±100mm、 Y±75mm

3. Repeatability: better than 2μ


4. Control method: computer auto control or by panel

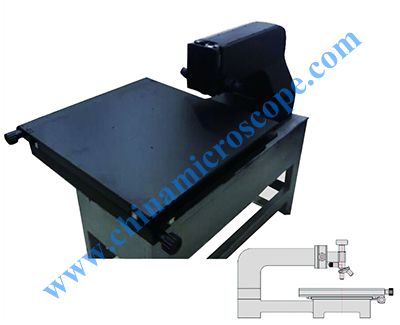

MIC-N10 model industrial testing microscope

Infinite optical system with coaxial illumination, 2X,5X,10X,20X,50X,long working distance plan achromatic objective

Dimension: L-770MM, W-1240MM, H-470MM

Fixed stage size: 650x650MM

Moving range:X-±270mm,Y-±270mm

Main focus range: Z-40MM

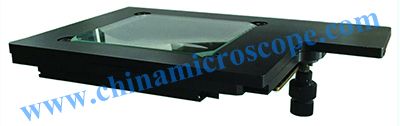

6 inches high precision manual mechanical stage:

Working table: 260x220MM

Glass size: 170X250MM

Moving range: X±75mm、 Y±75mm
