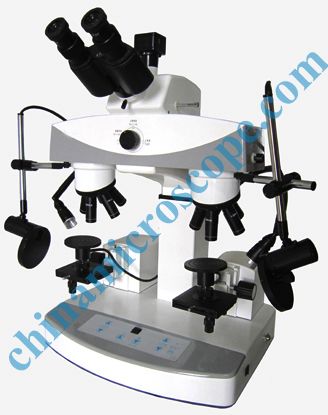

MIC-10 all-electric model comparison microscope
MIC-10 all-electric model comparison microscope, the optical zoom, eyepiece with the same group, while two objects were observed around the object like a square field of view, which of the two exhibits by docking overlap comparison of macro and micro, the operation of the instrument can be done manually, can also be controlled by computer software, electric operation is complete and can be remotely through the network than the right. Warm with a high power LED lighting, air-cooled strong light. New electric 5 hole converter agencies, with 300 million high-definition CCD digital camera.
|
Optical microscopy system |
|
|
Optical magnification |
5.6×－127×，Definition 3000NA。 |
|
Eyepiece |
10X（24mm）and 20X（12.5mm）Wide Field Eyepiece |
|
Objective |
0.6X、 1X、 1.5X、 2.5X、4X（stepping motor controlled fixed zoom change） |
|
Working distance |
100mm |
|
The stage |
Mobile Range: X / 80 Y/80 Z/54, the level of rotation angle 0 ° -360 °, the table in any direction angle 0 ° -60 ° can be achieved through the computer manual can be unilateral or bilateral loading station loading platform level rotation, to achieve three-dimensional motion. Structure with ball screw and linear guide |
|
Range of electric lift bridge |
0～150mm，Electric hydraulic lifting device can be used to observe larger samples. |
|
Material Field of the range observed |
φ1mm-φ90mm（With additional eyepiece, objective） |
|
Focal plane precision fine-tuning： |
0.002mm |
|
Bullets start instrument |
Small bullets start instrument |
|
Low magnification objective lens |
0.4x/φ90 |
|
Magnification synchronization |
A magnification instructions about the same magnification lens to adjust the organization |
|
Light source |
Strong light source: 50W/12V five-band air-cooled, light intensity adjustable. Cold light source: high power LED warm light, up to 100,000 hours life, with the lens, adjustable brightness and spot |
|
Camera system |
3 million high-definition digital camera, USB2.0, resolution 1600 × 1200, no interpolation |
|
Light Accessories |
Coaxial opticallensPolarized lens |
|
Adapter |
And CCD camera adapter |
|
Power supply |
220V AC, 12V DC output, in line with international safety standards |
|
PC Control |
Through the computer can be X, Y, Z axis and the stage rotated, depending on the field switching operation can also be remotely through the network than |
|
MIC forensic image processing software and electronic control software |
|
