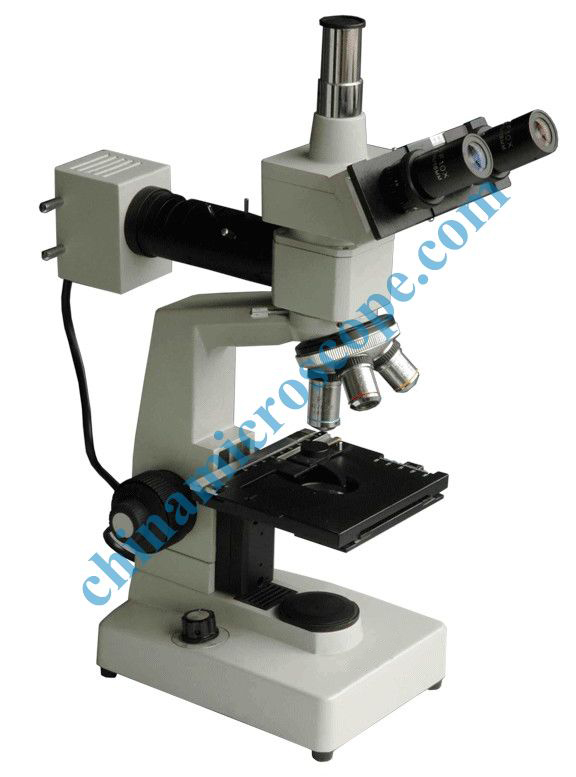

This model is suitable in the field of electronics, metallurgy, chemicals and instrument industry. If could visualize the transparent, semitransparent or opaque material.
|
Technical Specification |
Model |
|||||
|
MIC-A102 |
MIC-A103 |
MIC-A108 |
MIC-A109 |
|||
|
Viewing Body |
Monocular Body |
Square 45°Incline |
● |
|
|
|
|
Dual Viewing body |
|
● |
|
|
||
|
Binocular Body |
30°Incline,
Interpupillary |
|
|
● |
|
|
|
Trinocular Body |
|
|
|
● |
||
|
Eyepiece |
WF10×(Viewing
Field Diameter:ø18mm) |
● |
● |
● |
● |
|
|
Metallurgical Plain-field Objectives (without cover glass) 4×NA0.1, 10×/NA0.25, 40(S)×/NA0.65 |
● |
● |
● |
● |
||
|
Mechanical Stage |
Size:130mm×122mm Moving Range:70mm×30mmVernier Division:0.1mm |
● |
● |
● |
● |
|
|
Nosepiece |
Nosepiece of Three Holes Revolving On Ball |
● |
● |
● |
● |
|
|
Focusing |
Coaxial Coarse And Fine Focusing System |
● |
● |
● |
● |
|
|
Focusing Range:40 mm |
||||||
|
Division Of Fine Focus Adjustment:0.002mm |
||||||
|
Upright Vertical Illumination |
110V, 220V/6V 20W Halogen Bulb, with brightness adjustable; Filter(Light Blue、Light Green) |
● |
● |
● |
● |
|
|
Optional Accessory |
Photo Unit |
|||||
|
Color Micro-TV Unit |
||||||
|
Digital Micro-Photo Unit |
||||||
|
Metallurgical Achromatic Objectives: 63X(s)、100X(s、oil) |
||||||
|
Plain-Field Eyepiece: 12.5×/ø11、20×/ø11 |
||||||
|
Optional Transmit light source 6V 20W |
||||||
