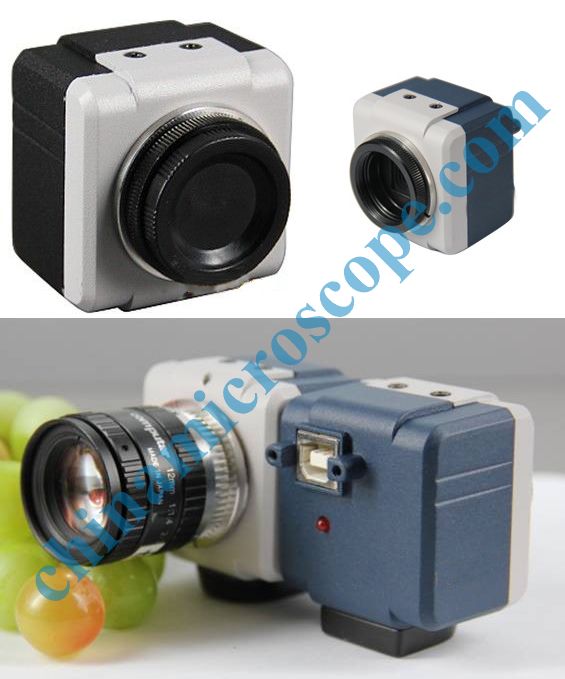

Model |
MIC-S1000 |
|
Sensor Type |
1/2.3" Color CMOS |
|
Pixel |
3664*2748(10M) |
|
Resolution and frame rate |
3664*2748: 3FPS |
|
2592*1944(ROI): 5FPS |
|
|
1600*1200(BIN):16FPS |
|
|
1920*1080(BIN): 16FPS |
|
|
1280*720(BIN): 28FPS |
|
|
1024*768(BIN): 30FPS |
|
|
800*600(BIN): 36FPS |
|
|
Any size ROI |
|
|
Pixels Size |
1.67μm*1.67μm |
|
Scan Mode |
Progressive scan |
|
Shutter Mode |
Electronic Rolling Shutter |
|
Exposure Time |
0.172-3000ms |
|
Image data format |
Raw8/Raw10/Raw12 |
|
Sensitivity |
0.31V/Lux-sec(550nm) |
|
spectral response |
380nm-650nm(with IR-filter) |
|
SNR |
34dB |
|
Dynamic Range |
65.2dB |
|
Definition |
1500 line |
|
Exposure control |
Manual/auto/area exposure |
|
White Balance |
Manual/one time white balance/area white balance |
|
Hardware upgrade |
Remote upgrade |
|
Picture formate |
RAW、BMP、JPG、PNG |
|
Programming control |
Camera working speed, picture size, format, brightness, exposure time, contrast, RGB plus, arc strobe, GAMMA, RGB plus, saturation, black balance, sharpness |
|
System |
Windows XP(32); Win7(32/64) ; Win8(32/64) |
|
Software interface |
TWAIN，Direct Show |
|
Data interface |
USB2.0 480Mb/s |
|
Camera hint |
LED light on, flash for working |
|
Capacity |
Less than 1W when working, stand by about 0.3W |
|
Power supply |
USB 5V |
|
Working Temperature |
0~50℃ |
|
Storage Temperature |
-20℃~60℃ |
|
Working humidity |
10%-90%RH |
|
Storage humidity |
10%-60%RH |
|
Lens interface |
C/CS |
|
Size |
45*48*36.4mm |
|
Weight |
About 100g |
|
Model |
MIC-S500 |
|
Sensor Type |
1/2.5" Color CMOS |
|
Pixel |
2592*1944（5M） |
|
Resolution and frame rate |
2592*1944：5.3FPS |
|
2048*1536（ROI）：8FPS |
|
|
1920*1080（ROI）：11.5 FPS |
|
|
1280*960（SUM）：13 FPS |
|
|
1280*960（BIN）：13FPS |
|
|
640*480（SUM）：20 FPS |
|
|
640*480（BIN）：20 FPS |
|
|
Any size ROI |
|
|
Pixels size |
2.2μm*2.2μm |
|
Scan Mode |
Progressive scan |
|
Shutter Mode |
Electronic Rolling Shutter |
|
Exposure Time |
0.120-3000ms |
|
Image data format |
Raw8/Raw10/Raw12 |
|
Sensitivity |
1.76V/Lux-sec(550nm) |
|
Spectral response |
380nm-650nm(with IR-filter) |
|
SNR |
38.5dB |
|
Dynamic Range |
67.7dB |
|
Definition |
1100-1200 line |
|
Exposure control |
Manual/auto/area exposure |
|
Hardware upgrade |
Remote upgrade |
|
Picture format |
RAW、BMP、JPG、PNG |
|
Programming control |
Camera working speed, picture size, format, brightness, exposure time, contrast, RGB plus, arc strobe, GAMMA, RGB plus, saturation, black balance, sharpness |
|
System |
Windows XP(32); Win7(32/64) ; Win8(32/64) |
|
Software interface |
TWAIN，Direct Show |
|
Data interface |
USB2.0 480Mb/s |
|
Camera hint |
LED light on, flash for working |
|
Capacity |
Less than 0.8W when working, stand by about 0.3W |
|
Power supply |
USB5V |
|
Working Temperature |
0~50℃ |
|
Storage Temperature |
-20℃~60℃ |
|
Working humidity |
10%-90%RH |
|
Storage humidity |
10%-60%RH |
|
Lens interface |
C/CS |
|
Size |
45*48*36.4mm |
|
Weight |
About 100g |
|
Model |
MIC-S300 |
|
Sensor type |
1/2" color CMOS |
|
Pixel |
2048*1536(3M) |
|
Resolution and frame rate |
2048*1536:9FPS |
|
1600*1200(ROI):13FPS |
|
|
1280*1024(ROI):17FPS |
|
|
1024*768(BIN):22FPS |
|
|
640*480(ROI):36FPS |
|
|
Any size ROI |
|
|
Pixels size |
3.2μm*3.2μm |
|
Scan Mode |
Progressive scan |
|
Shutter Mode |
Electronic Rolling Shutter |
|
Exposure Time |
0.114-3000ms |
|
Image data format |
Raw8/Raw10 |
|
Sensitivity |
>1.0V/Lux-sec(550nm) |
|
Spectral response |
380nm-650nm(with IR-filter) |
|
SNR |
43 dB |
|
Dynamic Range |
61 dB |
|
Definition |
850 line |
|
Exposure control |
Manual/auto/area exposure |
|
White balance |
Manual/one time white balance/area white balance |
|
Hardware upgrade |
Remote upgrade |
|
Picture format |
RAW、BMP、JPG、PNG |
|
Programming control |
Camera working speed, picture size, format, brightness, exposure time, contrast, RGB plus, arc strobe, GAMMA, RGB plus, saturation, black balance, sharpness |
|
System |
Windows XP(32); Win7(32/64) ; Win8(32/64) |
|
Software interface |
TWAIN，Direct Show |
|
Data interface |
USB2.0 480Mb/s |
|
Camera hint |
LED light on, flash for working |
|
Capacity |
Less than 0.7W when working, stand by about 0.35W |
|
Power supply |
USB5V |
|
Working Temperature |
0~50℃ |
|
Storage Temperature |
-20℃~60℃ |
|
Working humidity |
10%-90%RH |
|
Storage humidity |
10%-60%RH |
|
Lens interface |
C/CS |
|
Size |
45*48*36.4mm |
|
Weight |
About 100g |
|
Model |
MIC-S130 |
|
Sensor Type |
1/3" color CMOS |
|
Pixel |
1280*1024(1.3M) |
|
Resolution and frame rate |
1280*1024:17FPS |
|
640*480(ROI):56FPS |
|
|
Any size ROI |
|
|
Pixels size |
3.6μm*3.6μm |
|
Scan Mode |
Progressive scan |
|
Shutter Mode |
Electronic Rolling Shutter |
|
Exposure Time |
0.069-3000ms |
|
Image data format |
Raw8/Raw10 |
|
Sensitivity |
1.0V/Lux-sec(550nm) |
|
Spectral response |
380nm-650nm(with IR-filter) |
|
SNR |
44dB |
|
Dynamic Range |
71dB |
|
Definition |
TBD |
|
Exposure control |
Manual/auto/area exposure |
|
Hardware upgrade |
Remote upgrade |
|
Picture format |
RAW、BMP、JPG、PNG |
|
Programming control |
Camera working speed, picture size, format, brightness, exposure time, contrast, RGB plus, arc strobe, GAMMA, RGB plus, saturation, black balance, sharpness |
|
System |
Windows XP(32); Win7(32/64) ; Win8(32/64) |
|
Software interface |
TWAIN，Direct Show |
|
Data interface |
USB2.0 480Mb/s |
|
Camera hint |
LED light on, flash for working |
|
Capacity |
Less than 0.7W |
|
Power supply |
USB5V |
|
Working Temperature |
0~50℃ |
|
Storage Temperature |
-20℃~60℃ |
|
Working humidity |
10%-90%RH |
|
Storage humidity |
10%-60%RH |
|
Lens interface |
C/CS |
|
Size |
45*48*36.4mm |
|
Weight |
About 100g |
