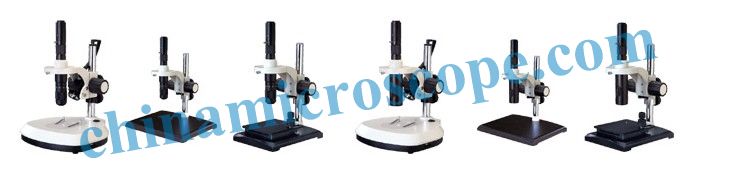

TYX-M series monocular zoom microscopes, they have long working distance, clear and smooth image quality, convenience operation etc.
They can be used for inspection of electro-industry product line and printed circuit board.
Feature
Standard C mount design, connecting the camera directly.
Digital & video camera, CCD camera and photography eyepiece can be chosen.
TYX-M1 series are equipped with outside rotating optical body.
TYX-M2 series are equipped with inside rotating optical body, annular LED illumination can be chosen. Objective range of zoom magnification 0.7X~4.5X.
TYX-M1 series
|
|
TYX-M1B |
TYX-M1C |
|||
|
Model Specification |
TYX-M1A |
TYX-M1B |
TYX-M1C |
||
|
CCD adapter |
1X |
||||
|
Objective |
Objectives range of zoom magnification 0.7X~4.5X |
||||
|
Working distance |
88mm |
||||
|
Vertical effective movement |
10mm<=h<215mm |
10mm<=h<265mm |
10mm<=h<240mm |
||
|
Base size |
260X290X55mm |
300X240X25mm |
240X180X25(mm) with movable stage, movement range:42X42(mm) |
||
|
Illumination model |
Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness |
No light source |
|||
|
|
|||||
TYX-M2 series
|
TYX-M2A |
TYX-M2B |
TYX-M2C |
|||
|
Model Specification |
TYX-M2A |
TYX-M2B |
TYX-M2C |
||
|
CCD adapter |
1X |
||||
|
Objective |
Objectives range of zoom magnification 0.7X~4.5X |
||||
|
Working distance |
88mm |
||||
|
Vertical effective movement |
10mm<=h<215mm |
10mm<=h<265mm |
10mm<=h<240mm |
||
|
Base size |
260X290X55mm |
300X240X25mm |
240X180X25(mm)with movable stage, movement range:42X42(mm) |
||
|
Illumination model |
Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness |
No light source |
|||
Optional accessories
|
Name |
Sort/Technique parameter |
NO. |
|
Eyepiece |
Divisional wide field eyepiece 10X(¦µ18mm)0.1mm/Div |
1021010 |
|
Divisional wide field eyepiece 10X(¦µ20mm)0.1mm/Div |
1111010 |
|
|
Eyepiece adapter |
For divisional wide field eyepiece10X(¦µ20mm) |
830008 |
|
Additional objective |
0.3X W.D.249mm |
620001 |
|
0.5X W.D.152mm |
621001 |
|
|
0.75X W.D.113mm |
622001 |
|
|
1.5X W.D.55.5mm |
624001 |
|
|
2XW.D.40.7mm |
625001 |
|
|
Illumination |
8W/90«265V Annular LED illumination W.D.:35~200mm |
630001 |
|
CCD adapter |
0.35X |
813001 |
|
0.5X |
813002 |
|
|
Camera |
Photography eyepiece with USB out |
1096001 |
|
Photography eyepiece with Video out |
1108001 |
|
|
DV-1 With USB & video output |
800001 |
|
|
DV-2 With USB output |
800003 |
|
|
DV-3 With video output |
800005 |
|
|
CCD Camera |
800007 |
