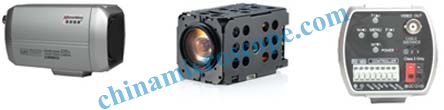

MIC-8XX High-definition DSP Zoom Industrial Cameras
CHARACTERISTIC OF PRODUCTS:
1、 Apply to
industrial testing equipment, medical imaging equipment with high-definition
zoom CCD industrial camera .
2、 DSP
high-definition zoom industrial cameras high-performance compact size of the
integration of digital color / Monochrome video camera, a built-in 220 times
the electrical zoom、 autofocus lens.
3、 Chinese /
English screen (OSD) function, high sensitivity, Minimum illumination is only 1
LU ×, Star model: 0.07 Lu ×
4、 DSP
high-definition zoom industrial cameras auto / manual focus、 auto backlight compensation、auto / manual white balance、AGCl adjustment、 anti-flicker, and other functions.
5、With
cross-line functional、 with the screen freeze function、 to receive an external trigger signal
6、 Negative
features, automatic Iris Control, programmable settings boot –strap display
information
SPECIFICATIONS：
|
MODEL |
860H Mini- zoom cameras |
860H Mini- zoom cameras |
870H high-definition zoom cameras |
870H high-definition zoom cameras |
880HC high-definition zoom cameras |
880H high-definition zoom cameras |
|
System |
PAL/NTSC |
CCIR/EIA |
PAL/NTSC |
CCIR/EIA |
PAL/NTSC |
CCIR/EIA |
|
Signal Sensor Device |
1/4“color” |
1/4“B/W” |
1/4“color” |
1/4“B/W” |
1/4“color” |
1/4“B/W” |
|
Pixel Matrix |
752(H)×582(V) |
795(H) × 596(V) |
||||
|
Variable Focal Lens |
×10（f=4.2-42mm) |
×22 (3.9-85.8mm) |
×22（4.0-88.0mm） |
|||
|
Horizontal Resolution |
520 TVL |
520 TVL |
600 TVL |
520/580 TVL |
600 TVL |
|
|
Minimum illumination |
3Lu× |
3Lu× |
0.1LU× |
0.001LU× |
0.07 Lu× |
0.07 Lu× |
|
Focus Range |
10mm-∞ |
|||||
|
White Balance |
AutocontrollAuto Tracking/Auto |
Auto/preset/manual/keying/paticular |
Automatic/manual locking/fixed temperature |
|||
|
Telecontrol variable focal |
Power 6~12VDC |
|||||
|
Shutter Control |
|
Auto/Manual 1/50－1/10000 |
1/50~1/120,000 |
|||
|
Screen display |
ON/OFF |
|||||
|
Control System |
RS-232C/RS-485 |
RS232C/2 group Ad code /voltage |
Dry switch，RS-232C/RS-485 |
|||
|
Screen List |
ENGLISH/CHINESE |
|||||
|
Vide Output |
Combined & Devided Image signal output,1.0Vp-p at 75ohm |
|||||
|
Sync.System |
Internal of external(line lock) |
External line lock |
Internal/Vertical Sync.Locking |
|||
|
S/N Ratio |
> 46dB |
>48dB |
>48dB |
|||
|
Cross line |
﹨ |
﹨ |
ON/OFF Screen list，software adjustable |
|||
|
Freeze Function |
﹨ |
﹨ |
Outer trigger of Screen list controlling |
|||
|
Storage states |
﹨ |
﹨ |
64Group (extend and focus) |
|||
|
Montion Detect |
﹨ |
﹨ |
48 zone (Screen list controlling) |
|||
|
Auto Iris Control |
﹨ |
﹨ |
Auto/fixed |
|||
|
Operation Voltage |
12VDC±10% |
9V-15VDC |
12V ± 1VDC |
|||
|
Operation Power |
3.6W(Max） |
<4.7W |
300mA |
|||
|
Operating Temperature |
（-10℃-60℃） |
-5℃-60℃ |
-10℃-50℃ |
|||
|
Dimension(mm) |
60mm ×48mm×40mm |
60 mm ×62 mm×92 mm |
60 mm ×62 mm×92 mm |
|||
