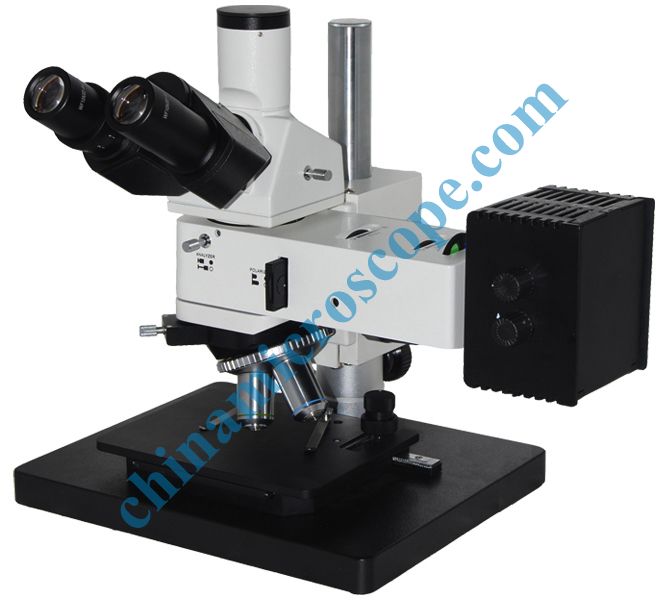

XYX-M100/ XYX-M100BD
XYX-M100/M100BD Industry checking and measure microscopes are suitable to observe surfaces structure and geometry of work piece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece. Quickly and effectively locate the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.
|
Technical specifications (standard) |
|||
|
Eyepiece |
10X wide field plan eyepiece and field of view number is Φ18mm, the eyepiece interface is Ф23.5mm |
||
|
Infinity plan achromatic objectives |
XYX-M100 Equipped bright field objective |
PL L5X/0.12 working distance：26.1 mm |
|
|
PL L10X/0.25 working distance：5.0 mm |
|||
|
PL L20X/0.40 working distance：8.80 mm |
|||
|
PL L50X/0.70 working distance：3.68 mm |
|||
|
Eyepiece tube |
Trinocular inclined 30˚, can be shot in 100% light flux. |
||
|
Focusing system |
Coaxial coarse/fine focus system, with tension adjustable device, minimum division of fine focusing: 1.0μm. |
||
|
Nosepiece |
Quintuple (Backward ball bearing inner locating) |
||
|
Stage |
Mechanical stage，overall size：185mmX140mm，moving range: 35mmX30mm |
||
|
Illumination system |
XYX-M100DIC |
12V50W halogen and brightness enable control. |
|
|
Integrated field diaphragm, aperture diaphragm and puller type polarizer. Equipped with frosted glass and yellow ,green and blue filters |
|||
|
DIC group |
10X/20X DIC group |
||
