Specification
|
|
|

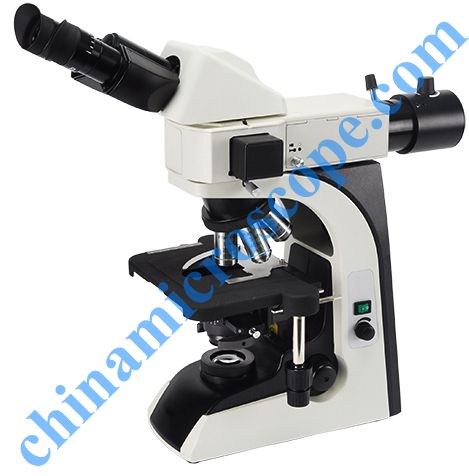

XSP-200LEDF |
||||
|
Optical System |
Infinite Optical System |
● |
||||
|
Viewing Head |
Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm |
● |
||||
|
Seidentopf Trinocular Head Inclined at 30°，Interpupillary 48-75mm |
○ |
|||||
|
Eyepiece |
Ф30 Wide Field Eyepiece EW10×/22, Eyepiece Tube Diameter 30mm |
● |
||||
|
Wide Field Eyepiece EW15×/16 |
○ |
|||||
|
Wide Field Eyepiece EW20×/12 |
○ |
|||||
|
Nosepiece |
Backward Quintuple Nosepiece |
● |
||||
|
Backward Quadruple Nosepiece |
○ |
|||||
|
Objective |
Infinite Plan Achromatic Objective 4×，10×，40×，100× |
● |
||||
|
Infinite Plan Achromatic Objective 20×，60× |
○ |
|||||
|
Condenser |
Abbe Condenser NA1.25 with Aperture Diaphragm |
● |
||||
|
Focusing System |
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, |
● |
||||
|
Stage |
Double Layers Mechanical Stage 230×150mm, Moving Range 78×54mm |
● |
||||
|
Illumination |
12V/20W Halogen Lamp, Brightness Adjustable |
● |
||||
|
12V/30W Halogen Lamp, Brightness Adjustable |
○ |
|||||
|
LED Illumination |
○ |
|||||
|
Reflected LED light source |
|
|||||
|
|
Excitation |
Dichroic Mirror |
Barrier Filter |
|
||
|
Blue LED exciter |
BP460-490 |
DM505 |
BA515 |
● |
||
|
Green LED exciter |
BP510-550 |
DM570 |
BA590 |
○ |
||
|
Accessories |
Photo Attachment |
○ |
||||
|
Video Adapter |
C Mount 0.4× |
○ |
||||
|
C Mount 0.5× |
○ |
|||||
|
Polarization Attachment |
○ |
|||||
|
Phase Contrast Kit |
○ |
|||||
|
Dark Field Attachment |
Dark-field Condenser (Dry) |
○ |
||||
|
Dark-field Condenser (Oil) |
○ |
|||||
|
Kohler Illumination |
○ |
|||||
|
Epi-Fluorescent Attachment |
○ |
|||||
