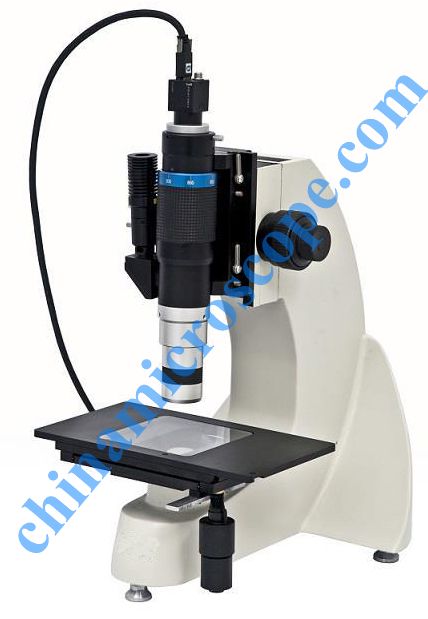

MIC-WM10 digital microscopy system
Compared with the traditional optical microscope, MIC-WM10 digital microscopy system using high performance optical device and a CCD camera, can be observed on the display screen vivid color images; because the use of digital technology, you can easily make use of the computer and network platform digitizing sample observation, measurement, and processing, etc.
MIC-WM10 is one digital microscope with the powerful function of micro-imaging & digital metrology, z-axis measurement, profile projection and matching, it is a product integrated the latest optical and electronic technologies for optical inspection.
Detailed description of the MIC-WM10 digital microscope
Continuous magnification
High Quality Image With in TheWideMagnificationRangeof 125X-2500X
Different magnification imaging, always maintain a clear and sharp

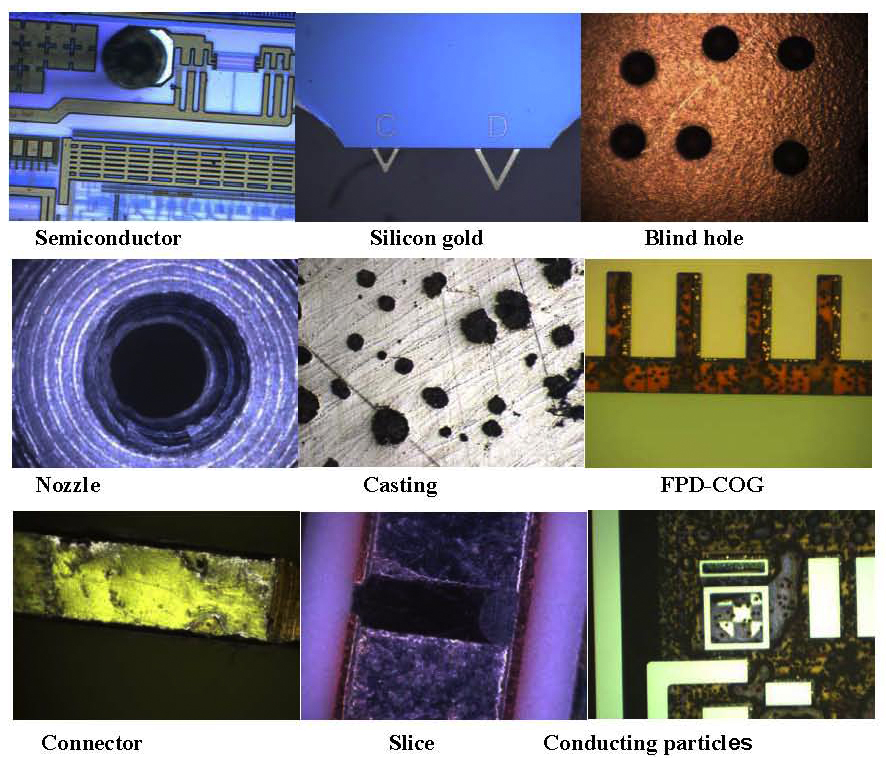

From the electronic semiconductor, LCD, fiber to the automotive, metal, chemical, food, image quality be consistent from beginning to end

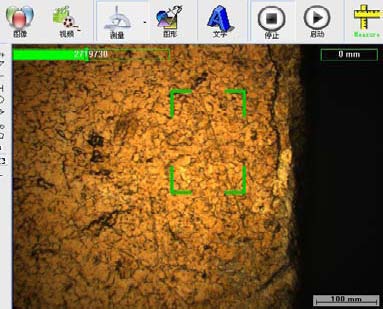

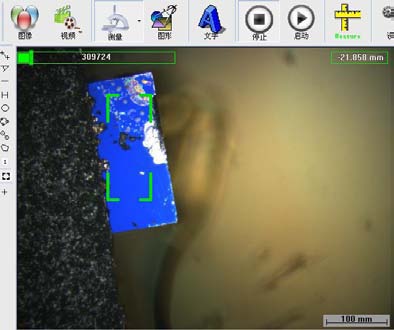

1st Step：Catch the Datum Plane 2nd Step：Catch the Measurement Plane
Non-contact of Z-axis Measurement at Micro-meter Grade
Simple operation - Z-axis measuring just two steps
Focusing accuracy - electronic aids focus function makes measurement more objective and more consistent
Accurate measurement -- the resolution to 1 μm

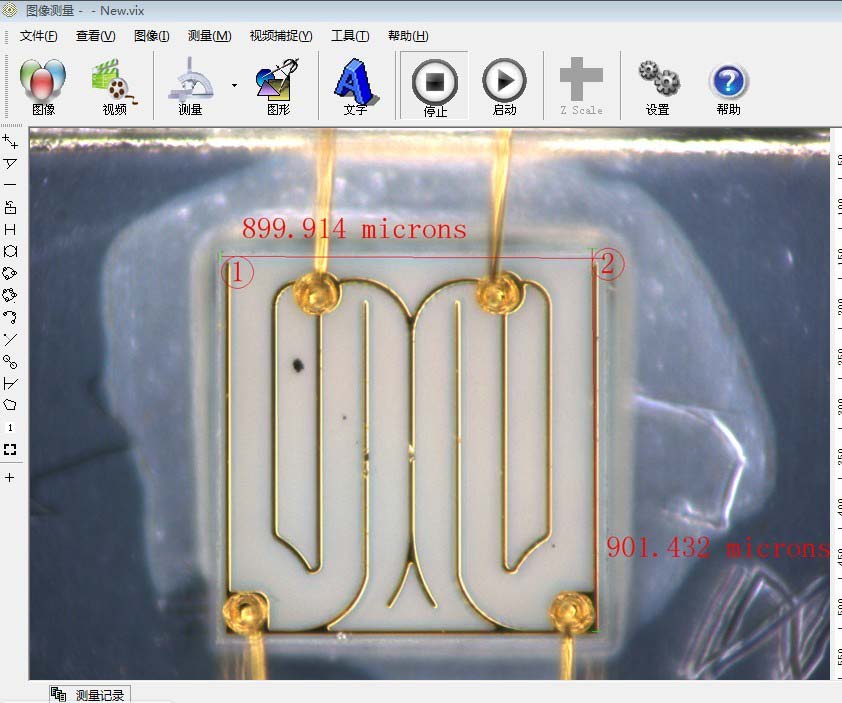

Video measurement
Directly on the screen straight, angle, perimeter, area measurement without having to take pictures.
Measuring image are free to edit, access
The measurement results can be Excel or Word format output, for statistical analysis and archiving
Variety of Illumination
Support for bright field, dark field, perspective, polarized light, variable aperture, etc.
Optional light rich
|
Model |
MIC-WM10 Specification |
850× |
850×BD |
1250× |
2500× |
|
||
|
|
Stage |
Dimension |
268mm×152mm |
|
||||
|
Travel range |
100mm×85mm |
|
||||||
|
Glass dimension |
115mm×115mm×3mm |
|
||||||
|
Bearing |
4.5kg(max) |
|
||||||
|
Illumination |
LED lights(12V,3W) |
|
||||||
|
Focusing Accuracy |
Coarse :30mm/rotation; Fine:1μm/Grad,0.1mm/rotation |
|
||||||
|
Focusing Travel: |
90mm |
|
||||||
|
Zoom Body |
Optical magnification |
2.6-18.4× |
2.6-18.4× |
3.75-26.3× |
7.5-52.5× |
|
||
|
N.A |
0.22 |
0.22 |
0.28 |
0.42 |
|
|||
|
Total Magnification（with 15" monitor） |
125-875× |
125-875× |
180-1250× |
360-2500× |
|
|||
|
F.O.V（mm) |
3.02-0.50 |
3.02-0.50 |
2.10-0.35 |
1.0-0.17 |
|
|||
|
W.D(mm) |
35.4 |
35.4 |
34 |
20.68 |
|
|||
|
Resolution(μm) |
1.25 |
1.25 |
1 |
0.7 |
|
|||
|
Depth of Focus (μm) |
±5.7 |
±5.7 |
±3.5 |
±1.6 |
|
|||
|
Camera |
Model |
Point Gray FL2 14S3C |
|
|||||
|
Resolution |
1392×1032 （1.4 M Pixels） |
|
||||||
|
Pixel Size |
4.65×4.65μm |
|
||||||
|
Digital Interface |
Bilingual 9-pin IEEE-1394b for camera control, video data transmission, and power |
|||||||
|
Maximum Frame Rate |
1392×1032 @ 15FPS |
|
||||||
|
Gauges |
Model |
SONY U30B |
|
|||||
|
Measuring Range |
0~30mm |
|
||||||
|
Resolution |
1μm |
|
||||||
|
Accuracy |
2μm |
|
||||||
|
Digital Interface |
RS232 |
|
||||||
|
System |
Power Supply |
Input |
AC 100-240V,50/60Hz |
|
||||
|
Output |
DC 12V |
|
||||||
|
Consumption |
Max 10W(without Computer and monitor) |
|
||||||
|
Dimension |
31cm×41cm×52cm |
|
||||||
|
weight |
~12KGS |
|
||||||
|
Operation Conditions |
Air Conditions |
Dustproof, No Corrosive Gas |
|
|||||
|
Temperature |
0-40℃ |
|
||||||
|
Relative Humidity |
25%-85%（No Condensation） |
|
||||||
|
Working Area |
50cm×120cm(Monitor included), Noiseless |
|
||||||
|
|
||||||||
