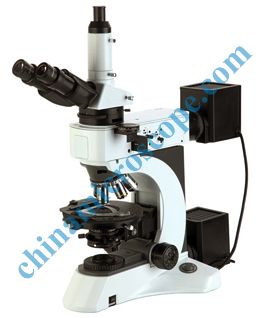

Home > MicroscopePolarizing Microscope > XSP-NYP microscope

Features

Supply high quality and contrast image with special strain free objective.

Single polarization, orthogonal polarization and conoscopic observation.

Transmitted light and reflect light, 24V/100W long life halogen lamp.

Stage with 45°located, attachable mechanical stage with large moving range, high efficiency by no interference when turning objectives.







NYPRF

NYPTRF

Optical System

Infinite optical system

Viewing Head

Seidentopf trinocular head inclined at 30°, Interpupilary 48-75mm

Eyepiece

Plan eyepiece EW10X/22

Plan eyepiece with scale of crosshair, Plan eyepiece with cross, Plan eyepiece with gridding

Strain-Free Plan
Achromatic Objective

5X/0.12/∞/-  WD15.5mm

10X/0.25/∞/-  WD10.0mm

20X/0.4/∞/0  WD5.8mm

50X/0.75/∞/0  WD0.32mm

100X/0.8/∞/0  WD2mm

40X/0.65/∞/0.17  WD0.54mm



100X/1.25/∞/0.17  WD0.13mm



Nosepiece

Backward quintuple nosepiece, Center adjustable

Analyzer

360° dial rotation  Minimum scale reading0.1°Vernier scale

Conoscopic observation
attachment

Switch between orthoscopic and conoscopic observation, Bertrand lens position adjustable

Optical Compensator

First-order red plate, Guarter-wave plate, Quartz wedge

Polarizing Rotatable
Stage

Diameter Φ170mm, Center adjustable, 360° scale, Minimum divison 1°, Minimum reading 6 by means of vernier scale ,45° Click stop knob

Attachable Stage

Moving range 30mmX40mm

Condenser

Strain-free swing condenser NA0.9/0.25



Focusing

Coaxial coarse & fine adjustment, Range32mm, Fine division0.001mm, Coarse stroke
37.7mmper rotation, Fine stroke0.1mmper rotation

Polarizer

Transmitted: 360° Rotatable 0° position adjustable



Reflected: Fixed

Illumination

24V/100W Halogen lamp, Brightness adjustable





Reflected light: 24V/100W Halogen lamp, Brightness adjustable

Transmitted light: 24V/100W Halogen lamp, Brightness adjustable



Filter

Blue filter Φ45mm



ND6 Neutral density filter Φ45mm



ND25 Neutral density 25 filter Φ45mm



Blue filter Φ25mm

ND6 Neutral density filter Φ25mm

ND25 Neutral density filter Φ25mm

Attachment

Video attachment

0.01mm Micrometer

Note: “●” in the table is standard attachment. “○” is optional accessories.

Design change: To keep pace with technological advances, we have reserved the right to make design modification and changes without notice.
