Promotion now!!!
Nikon quality Plan Achromatic objective, binocular head, 3W LED
Advanced
technology and excellent cost performance. The ideal instrument in biological,
histological, pathological field and can be widely used in academic
demonstration and research.
|
|
XSP-100 |
|
|
Viewing Head |
Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm |
● |
|
Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm |
○ |
|
|
Eyepiece |
WF10×/18 |
● |
|
WF16×/12 |
○ |
|
|
Objective |
Achromatic Objective 4×, 10×, 40×, 100× |
● |
|
Plan Achromatic Objective 4×, 10×, 40×, 100× |
○ |
|
|
Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× |
○ |
|
|
Nosepiece |
Quadruple Nosepiece |
● |
|
Focusing System |
Coaxial Coarse and Fine Adjustment, Fine Division0.002mm, Coarse Stroke37.7mmper Rotation, Fine Stroke0.2mmper Rotation, Moving Range20mm |
● |
|
Stage |
Double Layers Mechanical Stage132×142mm/75×40mm |
● |
|
Condenser |
Abbe Condenser NA1.25 with Aperture Diaphragm |
● |
|
Illumination |
3W LED |
● |
|
12V/20W Halogen Lamp, Brightness Adjustable |
○ |
|
|
Kohler Illumination |
○ |
|
|
Optional |
Photo Attachment, Video Attachment, Dark Field Condenser |
○ |
Ergonomic design:

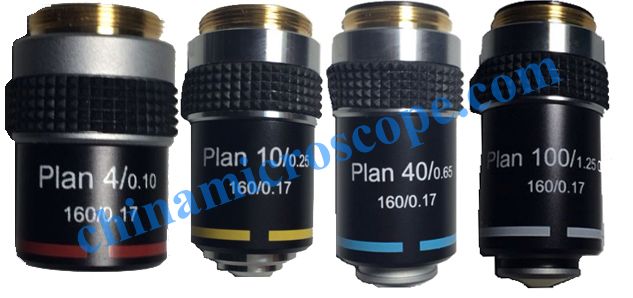

Nikon quality lens:

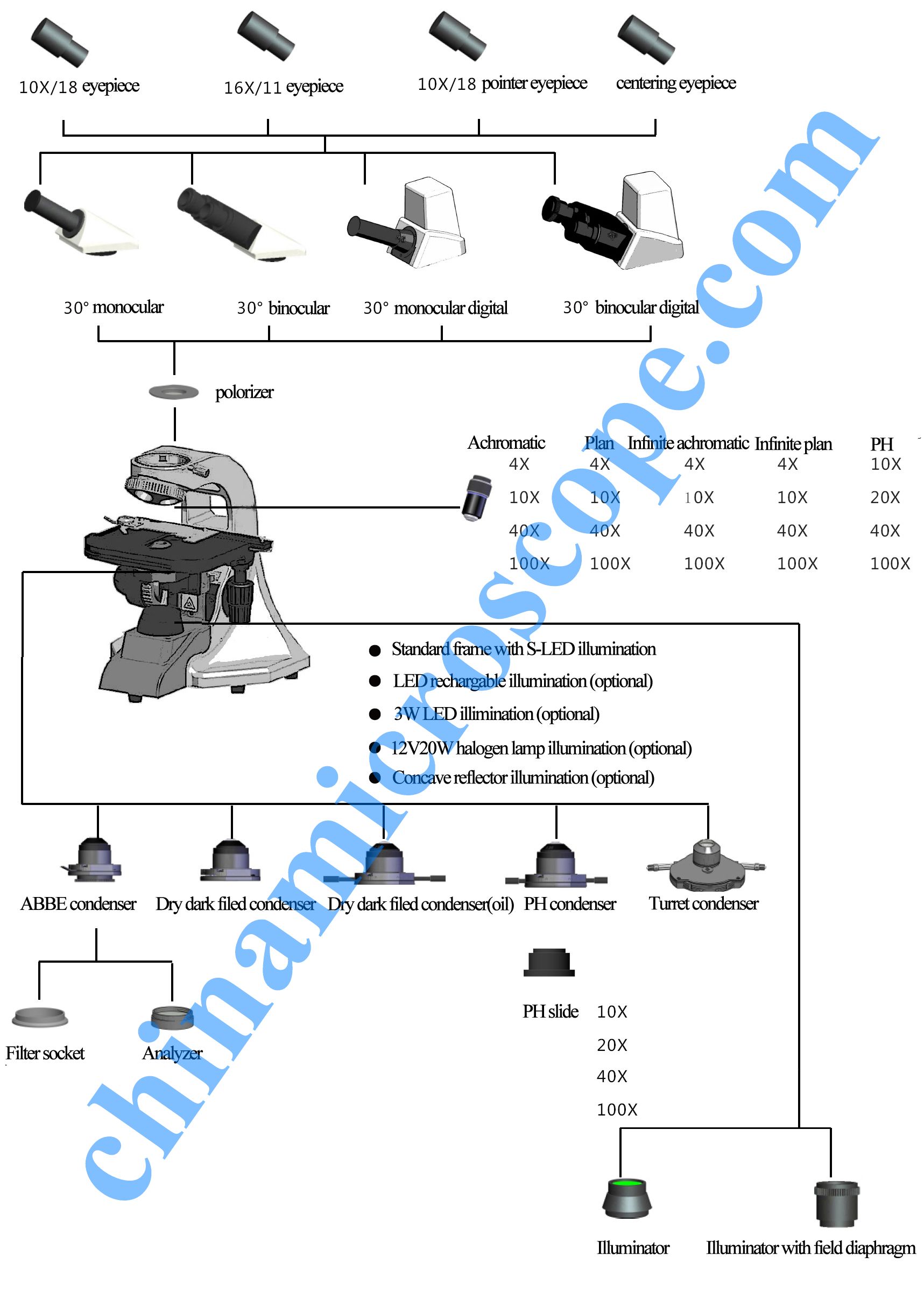

System Diagram

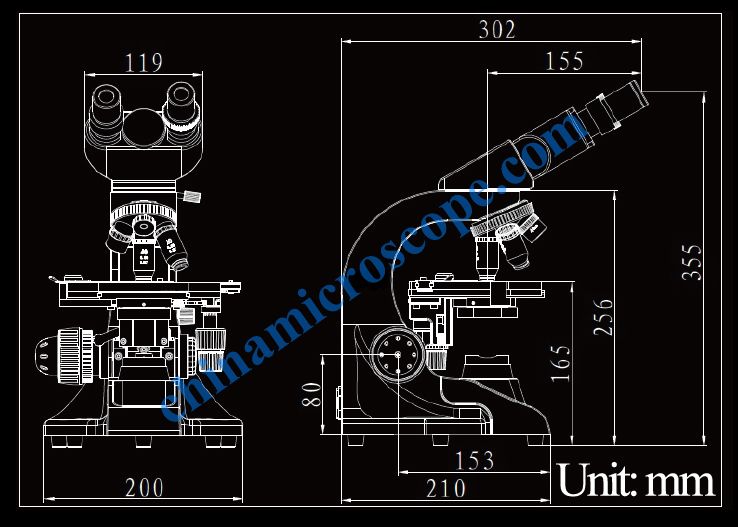

Dimension
Note: “●” in the
table is standard attachment. “○” is optional accessories.
Design change: To keep pace with technological advances, we have reserved the right to make design modification and changes without notice.
