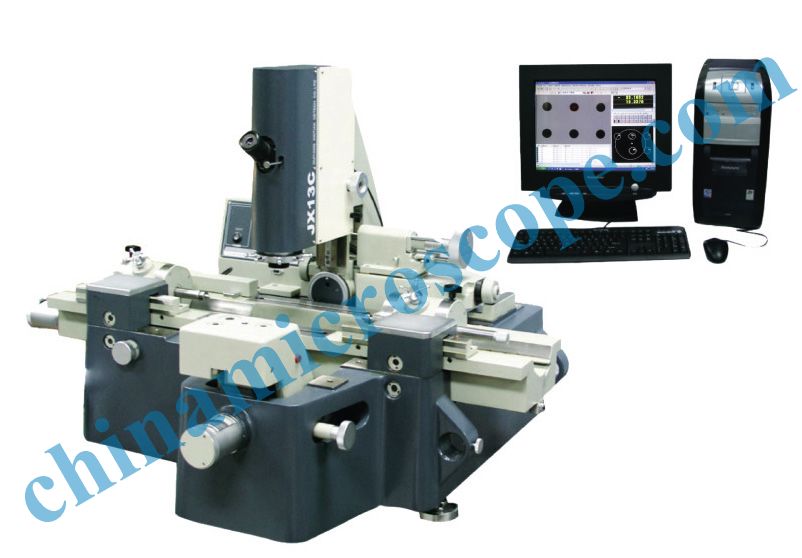

MIC-JX13Cuniversal computer multipurpose toolmaker’s microscope for image processing
Characteristics:
1. The imported precision grating system is adopted as the sensory element; with numerous strong points of low heating power, corrosion resistance, pollution resistance, good vibration strength etc.
2. The microscope, with powerful image processing software, can complete complicated measuring work, with its software data communicating with CAD to complete the surveying and mapping work.
3. The semi-conducting laser as a sensor finder is used for speedily defining the measuring location, thus upgrading the efficiency of image locating.
4. The software of digital imaging technology is adopted to automatically identify the outline boundary and to reduce human caused errors, thus upgrading the operational efficiency.
5. With a digital display rotary table and a height-measuring device; all measured results of angles and heights can be digitally displayed, direct and convenient.
6. The LED cold light source is adopted for the whole lighting device, with low heating power and long life.
7. The master microscope can out-beat left and right, suitable for the measurement of helical parts.
Technical Parameter
Worktable:
Stroke of measurement: X-coordinate:200mm Y-coordinate:100mm
Resolution ratio of X- and Y-coordinate measurement:0.0002mm
Accuracy of the X- and Y- coordinate: (1+L/100)μm, of which L=length of the measured work piece, unit: mm
Area of square worktable (mm) 260x270
Maximum height of the stored work piece on the square worktable (mm): 140
Microscope upright column
Angle tilting range:±12° Angle tilting division value: 30′
Objective
|
Objective Magnification |
1X |
3X |
5X |
|
Working distance |
≈82mm |
≈70mm |
≈49mm |
|
Visual field (mm) |
6.0x4.0 |
2.0x1.5 |
1.5x0.9 |
|
Screen image range(mm) |
1/2〃≈5.2x4.1 |
1/2〃≈1.7x1.4 |
1/2〃≈1.0x0.8 |
|
1/3〃≈4.1x3.1 |
1/3〃≈1.4x1.0 |
1/3〃≈0.8x0.6 |
Tailstock
Maximum diameter gripped by the tailstock: Φ100mm
Maximum length gripped by the tailstock:700mm
Higher Tailstock
Maximum diameter gripped by the higher tailstock: Φ250mm
Maximum length gripped by the higher tailstock:200mm
Digital display index head
Angle measuring range: 0°--360°
Resolution ratio of the angle measuring: 5〃
Accuracy of the angle measuring: 30 〃
CCD camera head
1/2〃or 1/3〃 black&white (or colored )CCD Pixel: 795x596
Optional position indicator
Minimum detection aperture:Φ5mm
Maximum detection depth:15mm Metering force: 0.1N
Locating stability:0.001mm Limit error gauged for head diameter:0.0005mm
Maximum load of the instrument: 40KG
Overall size of the main machine of the instrument: (LxBxH)=1300x1250x800
Weight of the main machine: 450KG
Ambient environment of the instrument service: room temperature: 20℃±1℃
Relative humidity: Not more than 60%
