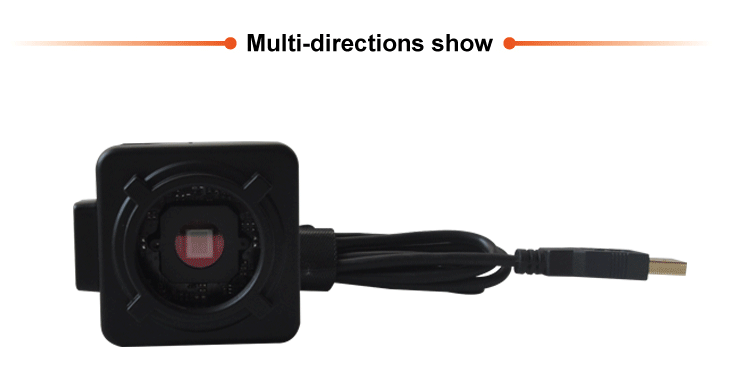

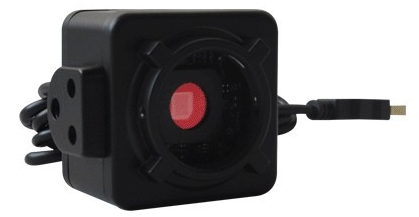

USB Camera MIC-5MD--High quality and good price
A. Hardware advantages

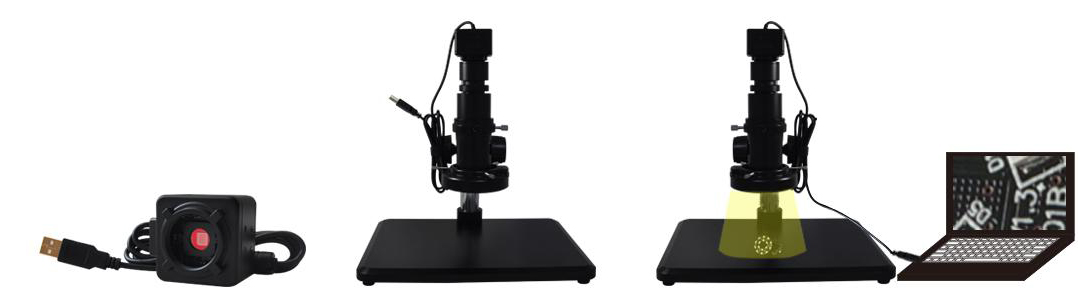

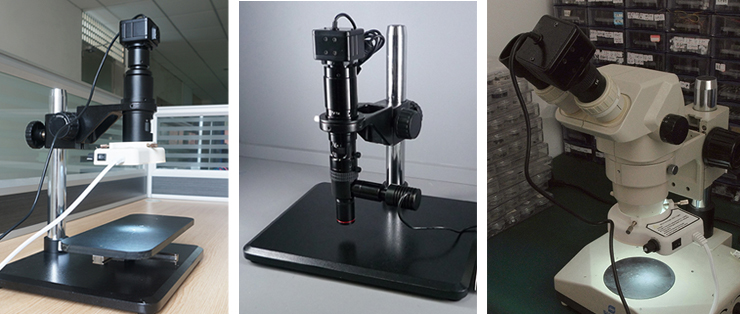

1.Good quality with competitive price, the
best suitable camera for your microscope..

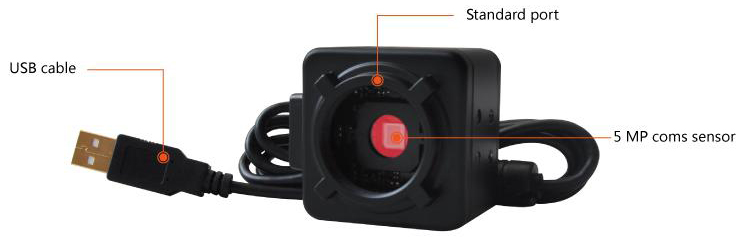

2. Five Mega high sensitive CMOS chip to
restore every true color.

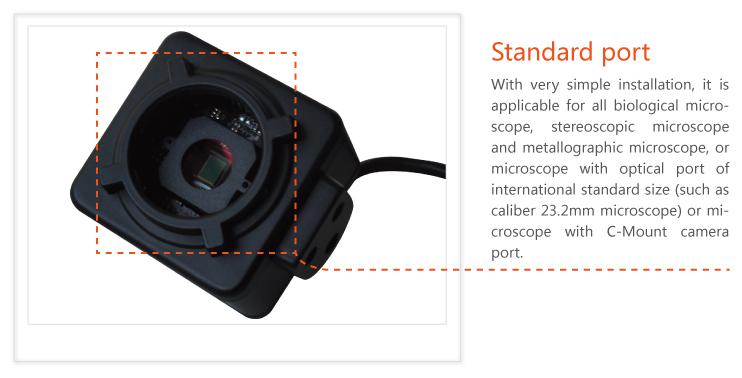

3. Camera adapter has the best
compatibility, standard C-mount joggle, optional ocular size 23.2/30/
4. General appearance structure, total
5. High speed USB joggle, insert and use, transferring
images faster and steadier.
6. Data USB cable accord with Universal
Serial Bus Specification USB Revision 2.0 April 27, 2000 standard, tiny details
design showing good quality.
B. Software advantages

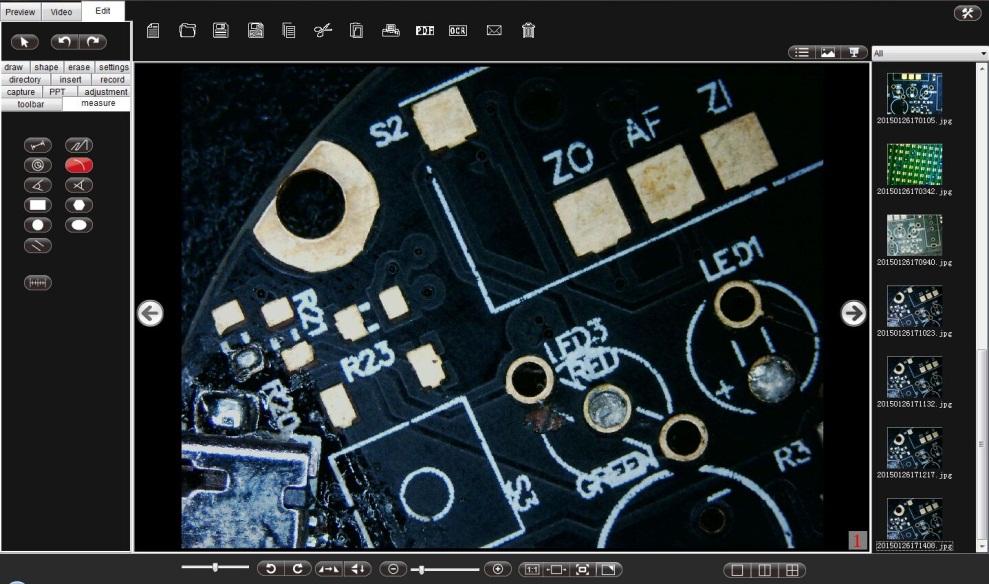

1. Professional custom software MicroCam
for windows, there are powerful functions to meet market’s need.
3. Simply to save picture and video
records, convenient to manager documents.
4. Many languages interface, can OEM
different languages.
5. Dynamic and still annotations, powerful measure
functions choice freely.
6. Two split screens and four split screens
display, being good for different observations’ comparison and analysis.
7.Fix-time continuous captured photo, high efficiently to track the whole changing process of observe things.
8.Rotate picture with any angle when
preview, there is no request for placing observe things, put and photo.
9. Creative image manage special effect,
upgrade user’s vision experience feeling.
10. Hardware device support hot-plug and
hot-unplug when using software, it never stop working.
C. Free software
instruction
1. PC computer user：Micro Cam, there are 200 functions
including measure.

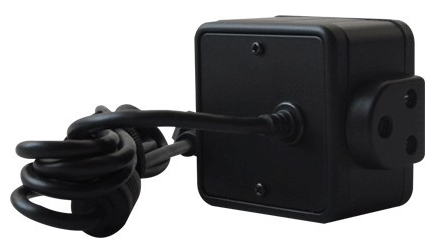

Product size
50x50x51mm
Package size
Single weight :300g, dimension: 15.5x11.5x7cm
20pcs/Canton:6.5kg, dimension: 56x31x16cm

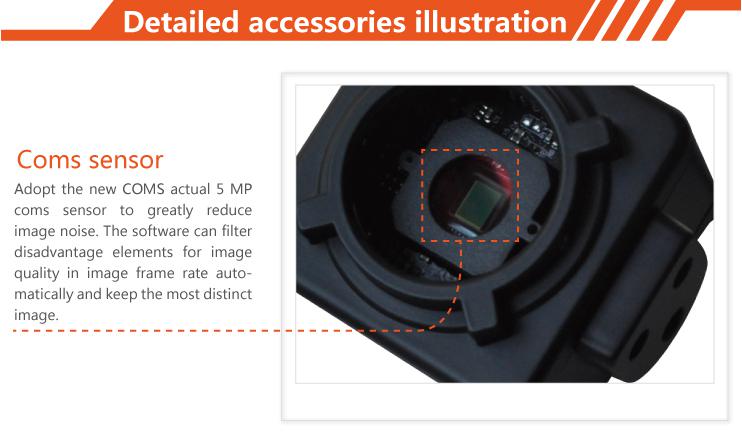

Sensitive Chip
1/2.5”true color CMOS (5.70mm(H) x4.28mm(V), diagonal7.13mm)

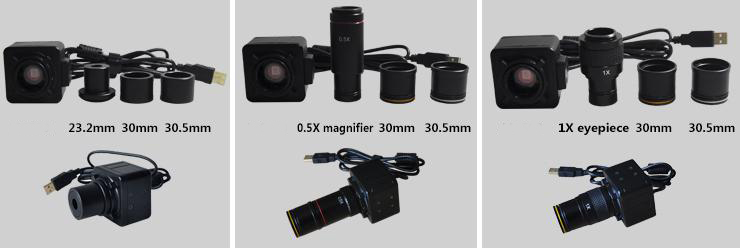

Tube size
C Port, Adapter ring（optional）23.2mm,D30mmor30.5mm
Resolution
Max: 2592 x 1944( 5,038,848 Mega Pixel)
Pixel size
2.2μm x 2.2μm
Dynamic range
70.1dB
A/D switch
12-bit on chip,10-bit to pc
SN Ratio
38.1dB
Spectral Range
380-650nm(with IR filter)
IR filter
9x9x0.3mm(Lx W x H), IR: 650nm
IR+UV+AR
The distance from sensor to IR+UV+AR is4.3mm
Binning
1 x 1,2 x 2
Exposure
3.9ms - 320ms, auto/manual exposure
White balance
Automatic White Balance
Focus mode
Manual fine adjust, wide range
auto-focus;
Snapshot control API
Direct Show, UVC
Observe methods
Still picture and video in real time
Software Language
Chinese, English, Japanese, Swedish,Deutsch,
accept OEM languages
Image format Frame rate
YUV output:
OS requirement
Microsoft® Windows® XP /Vista/ 7 / 8 (32 & 64 bit)
Hardware
CPU: equivalent to Intel Core2 1.6GHz or
higher Memory :2GB or higher
Operation software
Windows: MicroCam
640x480@30fps,800x600@20fps,1280x960@10fps,1280x720@10fps,2592x1944@5fps
MJPG output：
640x480@40fps,800x600@40fps,1280x960@40fps,1280x720@40fps,2592x1944@15fps
requirement
USB port :USB2.0 High-speed port DVD-ROM(required when installing
software)
Software windows

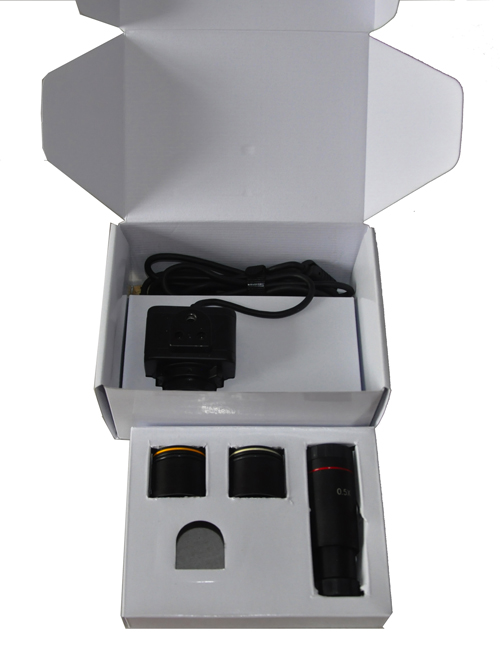

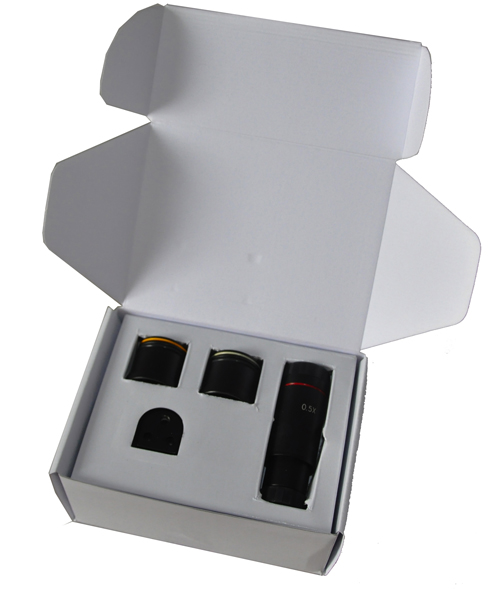

PACKING
