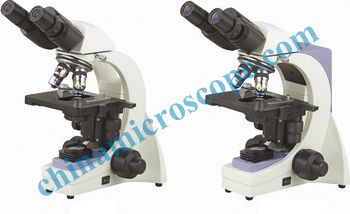

Sharp Image Display with Excellent Optical Function
Small Space Occupancy with Integral Stand Design, Low Environment Requirement with Anti-mould Technology.
Comfortable Operation with Ergonomic Design.
Features：
|
|
Available to observe the specimen from rear of the body（N-120） |
|
|
Comfortable Operation with Low Position Coarse & Fine Adjustment Knobs |
|
|
Higher Contrast and Sharper Image with High Quality Objectives |
Specification：
|
|
XSP-Y1 |
|
|
Viewing Head |
Compensation Free Binocular Head, Inclined at 30° |
● |
|
Compensation Free Trinocular Head, Inclined at 30° |
○ |
|
|
Eyepiece |
Wide Field Eyepiece WF10×/ 18 |
● |
|
Wide Field Eyepiece WF16×/ 11 |
|
|
|
Objective |
Achromatic Objective 4×、10×、40×、100× |
● |
|
Plan Achromatic Objective 4×、10×、40×、100× |
○ |
|
|
Nosepiece |
Quadruple Nosepiece |
● |
|
Stage |
Double Layers Mechanical Stage 140×140mm/ 75×50mm |
● |
|
Condenser |
NA 1.25 Abbe Condenser with Iris Diaphragm and Filter |
● |
|
Illumination |
S-LED Illumination，Brightness Adjustable |
● |
|
Halogen Lamp 6V/ 20W, Brightness Adjustable |
○ |
|
|
Photo Attachment |
|
○ |
|
Video Adapter |
C Mount 1× |
○ |
|
C Mount 0.5× |
○ |
|
|
Filter |
Blue Filter |
○ |
|
Green Filter |
● |
|
|
Dark Field Attachment |
Dark Field Condenser (Dry) |
○ |
|
Dark Field Condenser (Dry) |
○ |
|
|
Phase Contrast Kit |
Single Phase Contrast Kit |
○ |
|
Sliding Phase Contrast Kit |
○ |
|
|
Turret Phase Contrast kit |
○ |
|
|
Polarization Set |
Simple Polarization Set |
○ |
|
Fluorescent Attachment |
Epi-fluorescent Attachment |
○ |
Note: “●” in the table is standard attachment. “○” is optional accessories.
Design change:
To keep pace with technological advances, we have reserved the right to
make
design modification and changes without notice.
