Items

Specification

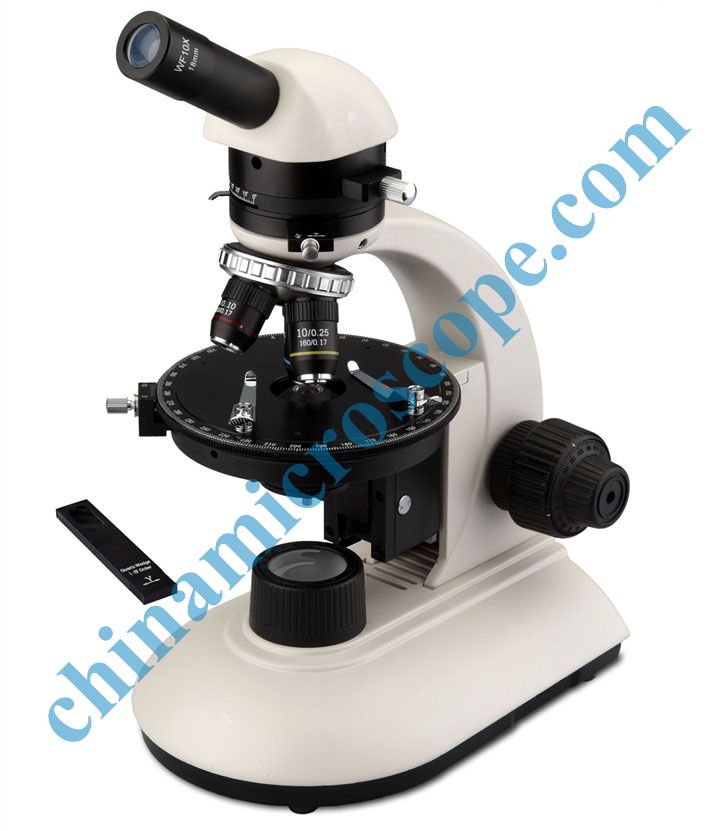

OP-3

Eyepiece

WF 10×-18mm (Cross, Reticule 0.1mm)

●

WF 16×-13mm

○

Non-stress

Achromatic Objective

4×

●

10×

●

40× (S)

●

20×

○

60× (S)

○

Mono Head

Inclined 30°, Rotatable 360°

●

Nosepiece

Quadplex

●

Analyzer Unit

0-90°，It can be moved out of the optical path for single polarizing observe.

●

Bertrand Lens

It can be moved out of the optical path.

●

λ Slip

First Class Red

●

1/4λ Slip

●

Quartz Wedge

(Ⅰ-Ⅳ Class)

○

Revolving Round Stage

Rotatable 360°, Division 1°, Vernier division 6’，can be locked.

●

Polarizing Attached Mechanical Stage

○

Condenser

Abbe N.A. 1.25

●

Polarizing Unit

It can be moved out of the optical path.

●

Filter

Blue

●

Illumination

6V/20W Halogen Lamp

●

LED Lamp

○
