MIC TECH’S 5G serials microscope is with high efficiency,flexibility and stability. It is specially developed for various application fields.It is widely used,from daily work to scientific research,in laboratory,hospital and college.Because of higher cost performance and reasonable humanized design,it becomes the first choice of individual,hospital and scientific research organization.
Features:
1,Wide-field eyepiece,high light illumination and superior optical components make the image clear,sharp and high brightness;
2,Backward nosepiece with superior objectives make the better viewing effect and more space for operators;
3,Wide mechanical stage with double specimen holder provides more convenient for the observers;
4,High precision focusing adjustment system and humanized configuration design provide operator more relaxing
|
Specification |

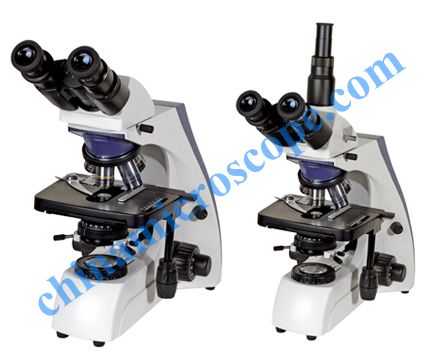

Model |
||
|
XSZ-5G |
XSZ-5GT |
||
|
Viewing head |
Compensation free binocular head,inclined at 30°（48mm-75mm） |
● |
|
|
Compensation free binocular head,inclined at 30°（48mm-75mm） |
|
● |
|
|
Eyepiece |
WF10×/22mm |
● |
● |
|
Objective |
infinite Semi-Plan objective:4×,10×,40×(s),100×ion(s)Oil |
● |
● |
|
Stage |
Double layers mechanical stage |
|
|
|
Stage Size:180mm×160mm |
● |
● |
|
|
Moving Range:80mm×50mm |
|
|
|
|
Condenser |
N.A.1.25Abbe condenser with iris diaphragm & filter holder |
● |
● |
|
Focusing |
Coaxial coarse & fine focusing adjustment with rack and pinion mechanism , fine focusing scale value0.002mm |
● |
● |
|
Light Source |
Halogen bulb 12V30W. AC85V-230V Adjustable brightness |
● |
● |
|
Collector |
High brightness Kohler illumination |
● |
● |
|
Optional Accessory |
Eyepiece:WF16×,WF20×,P16× and 3.0Mega CMOS Digital camera eyepiece infinite Semi-Plan objective:20×(s),60×(s), infinite Plan Objective:4×,10× ,20× ,40×(s),60×(s),100×(s)Oil Light Source:LED,Adjustable brightness Phase contrast attachment Photography attachment and CCD C-mount:0.5X,0.57X,0.75X,1X 1.3Mega,2.0Mega,3.0Mega,5.0Mega,10.0Mega pixels CMOS Digital camera eyepiece CCD Camera,color 1/3 High resolution 700 TV lines |
||
