As an upgraded metallurgical microscope, MIC-M40 is with excellent imaging performance and comfortable operating experience, MIC-M40 provides high cost effective solution for metallurgic analysis and industrial inspection. With higher color correction and better coating design, new improved LMPlan series objectives enhance the image resolution and color reducibility.

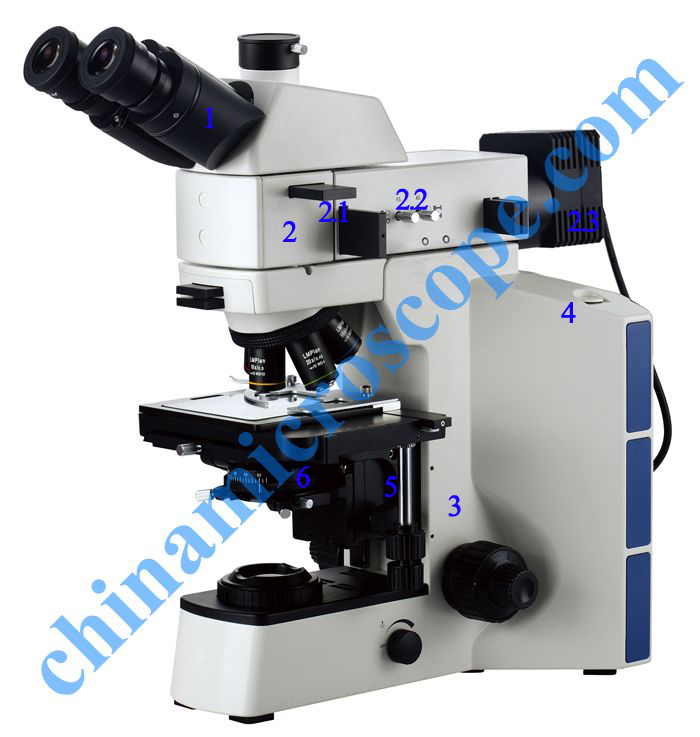

1. With the most suitable viewing degree, 30°inclined head holds everyone in the best working state, less tension and fatigue. You can adjust the interpupillary distance to optimum according to the scale on viewing head.
2. Reflected illuminating with field/aperture diaphragm and oblique light device, as well as slots for polarizing kit and filters, adopts LED Kohler illumination system.
2.1 Simple polarizing observation is available with plug-gable polarizing kit. More ideal images are here with different filters.
2.2 With pull-rod devices for adjusting the centers of field and aperture diaphragm, stray light can be eliminated by expanding or shrink the illumination zone.
2.3 Comparing with other LED, single 5W LED with warm white light (3000-3300K) reduces the fatigue on observer's vision at the extreme.

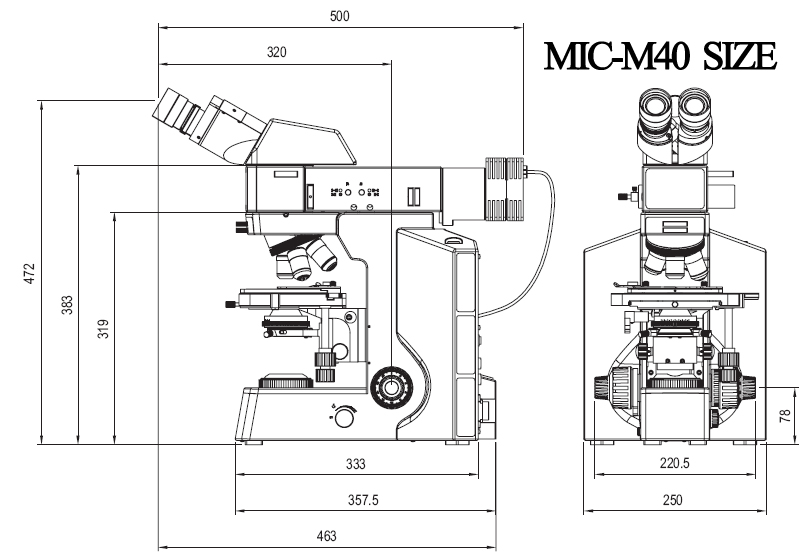

3. The highest sample can be tested is
4. M4 wrench for socket head screws places in the frame, making the best of the available space and improving your working efficiency.
5. Up-limit device is helpful to avoid the damage caused by impact between sample and objective.

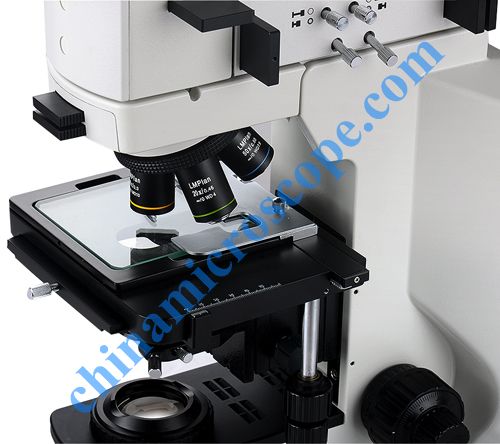

6. Using the outstanding condenser system, much
more transmitted light can be through with bigger numerical aperture and
stronger intensity.
Item
Magnification
Numerical aperture
Working distance
Cover glass thickness
Parfocal distance
Conjugate distance
LMPLAN
5X
0.15
10.80
0
45
∞
10X
0.30
10.00
20X
0.45
4.00
50 X
0.55
7.90
100X
0.80
2.10

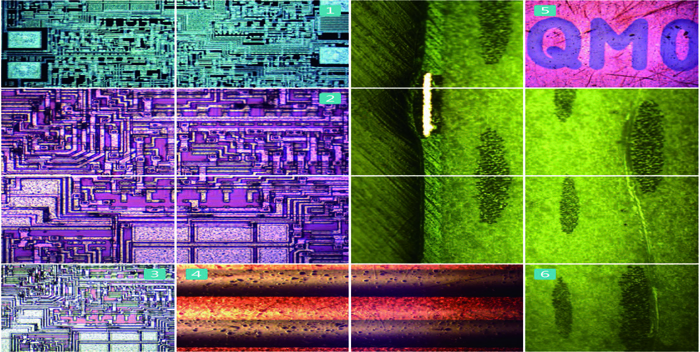

1,2,3 is bright field image
4,5 is oblique light image
6 is simple polarizing image
Optical system
Infinity color corrected optical system
Viewing head
30°inclined
gemel binocular head, interpupillary distance:54mm~75mm,
left diopter ±5
adjustable
30°inclined
gemel trinocular head, interpupillary distance:54mm~75mm,
diopter ±5 adjustable,
splitting ratio R:T=100:0 or 50:50
Eyepiece
High eye-point wide field plan eyepiece PL10X22mm
High eye-point wide field plan eyepiece PL10X22mm, with reticle
High eye-point wide field plan focusing eyepiece PL10×22mm
High eye-point wide field plan eyepiece PL15X16mm
Objective
LWD plan achromatic metallurgical objective 5X / 10X / 20X / 50X /
100X
Nosepiece
Reversed quintuple nosepiece
Focus Adjustment
Transmitted & Reflected frame, coaxial focus system with
tension adjustment and up-limited device, coarse range:28mm, fine precision:0.002mm. Stage can be
adjusted up and down,28mmhigh sample is available.
Reflected frame, coaxial focus system with tension adjustment and
up-limited device, coarse range:28mm,
fine precision:0.002mm.
Stage can be adjusted up and down,78mmhigh sample is available.
Stage
Double layer mechanical stage with X/Y coaxial adjustment, size:
175mmX145mm,
moving range: 76mmX42mm.
Metal plate for transmitted frame; glass plate for transmitted
& reflected frame.
Reflected illumination
Wide-range voltage 100V-240V_AC50/60Hz, reflected lamp-house with
single 5W LED, warm color. Kohler illuminating with oblique light device,
center adjustable field and aperture diaphragm
Transmitted illumination
Wide-range voltage 100V-240V_AC50/60Hz, transmitted lamp-house
with single 5W LED, warm color.
Condenser
N.A.0.9swing-out achromatic
condenser for transmitted frame, with center adjustable aperture iris
diaphragm.
Other accessories
Yellow/neutral/IF550/LBD filter for transmitted light
Digital camera adapter: 1X, 0.67X, 0.5X focusing C-mount, 3.2X
photo eyepiece, photo tube with PK or MD mount, relay lens
Interference filter for reflected light: Blue
filter <=480nm Green filter
520nm~570nm Red filter
630~750nm White balance filter
High precision micrometer, scale value0.01mm
Bright field, oblique light and simple
polarizing are all available with MIC-M40. Bright field image with high
brightness and high resolution shows original color of samples. And oblique
light is used to show 3D relief image.
