Specification |

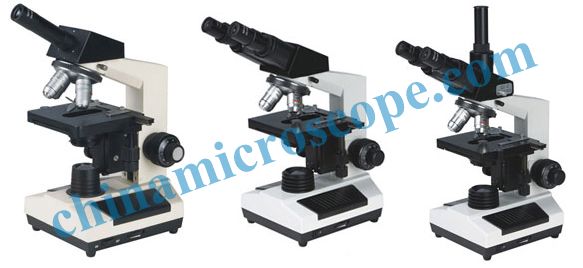

XSZ-N13 |
XSZ- N13B |
XAZ- N13BT |
|
|
Viewing Head |
Monocular Inclined at 45°,360° rotatable |
● |
|
|
|
Compensation Free Binocular Head, Inclined at 30°(55mm-75mm) |
|
● |
|
|
|
Compensation Free Trinocular Head, Inclined at 30°(55mm-75mm) |
|
|
● |
|
|
Eyepiece |
WF10×/18mm |
● |
● |
● |
|
Objective |
Achromatic 4×、10×、40×(s)、100×(s)Oil |
● |
● |
● |
|
Stage |
Double layer mechanical stage |
● |
● |
● |
|
Stage Sixe:140mm×140mm |
||||
|
Moving Range:75mm×50mm |
||||
|
Condenser |
N.A.1.25Abbe condenser with iris diaphragm and filter |
● |
● |
● |
|
Focusing |
Coaxial coarse & fine focusing adjustment Fine focusing scale value0.002mm |
● |
● |
● |
|
Light Source |
Halogen bulb 6V20W or 6V15W, AC 220V/110V Adjustable light intensity |
● |
● |
● |
|
Base Frame |
Black decorating panel |
● |
● |
● |
|
Optional Accessory |
Eyepiece：WF16×、WF20×、P16× |
|||
|
Objective：20×、60(s) |
||||
|
Semi-plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil |
||||
|
Plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil |
||||
|
Reflective Mirror, Demonstration(Teaching) Head Dark field and Phase contrast device |
||||
|
1.3Mega、2.0Mega、3.0Mega、5.0Mega pixels CMOS Digital camera eyepiece |
||||
|
Photography attachment and CCD Adapter 0.5×、0.57×、0.75× |
||||
|
Compensation Free Binocular & Trinocular Head (48mm-75mm) |
||||
|
LED illumination |
||||
