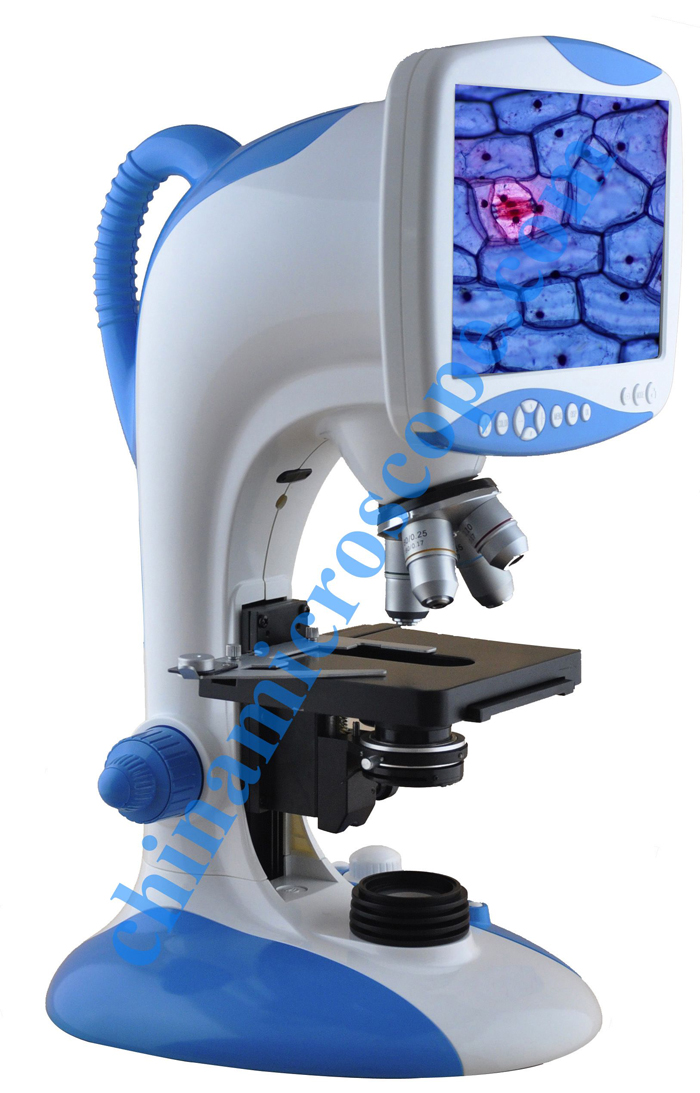

MIC-T Series Multifunction Digital LCD Microscope Specifications:
|
Model Specifications |
MIC-TS0 |
MIC-TS1- |
MIC-TS2- |
MIC-TS3- |
MIC-TS1 |
MIC-TS2 |
MIC-TS2+ |
MIC-TS3 |
MIC-TS4 |
|
LCD Screen |
9 Inches HD |
9 Inches HD |
9 Inches HD |
9 Inches HD |
9 Inches HD |
9 Inches HD |
9 Inches HD |
9 Inches HD |
9 Inches HD |
|
LCD Resolution |
1280×800 |
1280×800 |
1280×800 |
1280×800 |
1280×800 |
1280×800 |
1280×800 |
1280×800 |
1280×800 |
|
Image Resolution |
No |
4M |
4M |
4M |
5M |
5M |
5M |
12M |
12M |
|
Video Resolution |
No |
720P/30fps |
720P/30fps |
720P/30fps |
720P/30fps |
720P/30fps |
720P/30fps |
1080P/30fps |
1080P/30fps |
|
Photo/Video Playback |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Data Output |
No |
USB |
UP HDMI/ USB |
Down HDMI/ USB |
USB |
UP HDMI/ USB |
Down HDMI/ VGA/USB |
Down HDMI / VGA/USB |
Down HDMI / VGA/USB |
|
External Interface |
No |
PC |
PC/TV/ Projector |
PC/TV/ Monitor /Projector |
PC |
PC/TV/ Projector |
PC/TV/ Monitor /Projector |
PC/TV/ Monitor /Projector |
PC/TV/ Monitor /Projector |
|

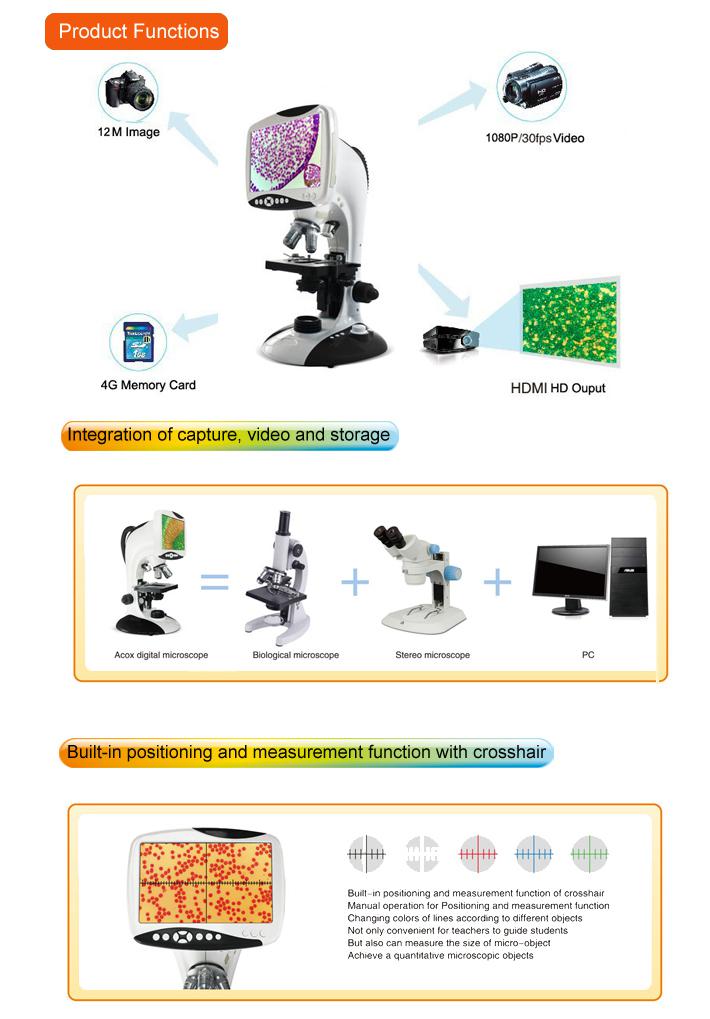

Measurement |
No |
Crosshair |
Crosshair |
Crosshair |
Crosshair |
Crosshair |
Crosshair |
Crosshair |
Crosshair |
|
Positioning |
No |
Crosshair/ Arrow pointer |
Crosshair/ Arrow pointer |
Crosshair/ Arrow pointer |
Crosshair/ Arrow pointer |
Crosshair/ Arrow pointer |
Crosshair/ Arrow pointer |
Crosshair/ Arrow pointer |
Crosshair/ Arrow pointer |
|
Coordinate Colors |
No |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
|
Application |
Biological Microscope |
Biological Microscope |
Biological Microscope |
Biological + Stereo Microscope |
Biological Microscope |
Biological Microscope |
Biological Microscope |
Biological + Stereo Microscope |
Biological + Stereo+ Metallurgical Microscope |
|
Biological Objectives |
4X/10X/20X /40X |
4X/10X/20X /40X |
4X/10X/20X /40X |
4X/10X/20X /40X |
4X/10X/40X /100X |
4X/10X/40X /100X |
4X/10X/40X /100X |
4X/10X/40X /100X |
4X/10X/40X /100X |
|
Stereo Objectives |
No |
No |
No |
1X/2X |
No |
No |
No |
1X/2X |
1X/2X |
|
Digital Magnification |
No |
8X |
8X |
8X |
8X |
8X |
8X |
8X |
8X |
|
Total Magnifications |
100X-1360X |
100X-1360X |
100X-1360X |
25X-1360X |
70X～2380X |
70X～2380X |
70X～2380X |
20X～2380X |
20X～2380X |
|
Storage |
No |
SD Card |
SD Card |
SD Card |
SD Card |
SD Card |
SD Card |
SD Card |
SD Card |
|
Focusing System |
Coaxial Coarse/Fine Focus System |
Coaxial Coarse/Fine Focus System |
Coaxial Coarse/Fine Focus System |
Coaxial Coarse/Fine Focus System |
Coaxial Coarse/Fine Focus System |
Coaxial Coarse/Fine Focus System |
Coaxial Coarse/Fine Focus System |
Coaxial Coarse/Fine Focus System |
Coaxial Coarse/Fine Focus System |
|
Nosepiece |
Quadruple |
Quadruple |
Quadruple |
Quadruple |
Quadruple |
Quadruple |
Quadruple |
Quadruple |
Quadruple |
|
Stage |
Double Layers Mechanical Stage |
Double Layers Mechanical Stage |
Double Layers Mechanical Stage |
Double Layers Mechanical Stage |
Double Layers Mechanical Stage |
Double Layers Mechanical Stage |
Double Layers Mechanical Stage |
Double Layers Mechanical Stage |
Double Layers Mechanical Stage |
|
Condenser |
Sliding-in Condenser NA1.25 |
Sliding-in Condenser NA1.25 |
Sliding-in Condenser NA1.25 |
Sliding-in Condenser NA1.25 |
Sliding-in Condenser NA1.25 |
Sliding-in Condenser NA1.25 |
Sliding-in Condenser NA1.25 |
Sliding-in Condenser NA1.25 |
Sliding-in Condenser NA1.25 |
|
LED Illumination |
Transmitted Light |
Transmitted Light |
Transmitted Light |
Transmitted / Reflected |
Transmitted Light |
Transmitted Light |
Transmitted Light |
Transmitted / Reflected Light |
Transmitted / Reflected /Coaxial Light |
|
Voltage |
12V-19V |
12V-19V |
12V-19V |
12V-19V |
12V-19V |
12V-19V |
12V-19V |
12V-19V |
12V-19V |
