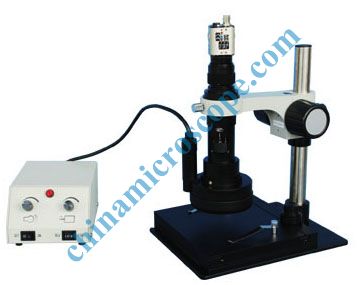

MIC TMM-50 three-dimensional rotated zoom video microscope systems，adopts advanced optical technology and fine machine electron technology. It is made observe from single front to three-dimensional many-sided and more fine. It needn't incline, you can observe high-resolution dynamic image of 360°all-direction, large depth of fields. It has realistic stereo perception and gradation and revolving speed can be changed. It can be observed the place of tradition lens unable display, e.g. below of PCB board, inside of metal hole, side-wall etc. It can be used extensively in surface board of SMT、PCB、BGA etc.
Main technology Specifications：
|
Lens can be rotated 360°, large depth of fields, stereo observing each direction of objects. |
|
Inlet miniature motor, long life LED illumination，90V~260V breadth voltage input. 5 revolutions to 27 revolutions/minutes, step-less regulation. |
|
Zoom objective magnification 0.56X~3.75X. |
|
The measurement to match between the support and the main body is Φ45mm. |
|
The diameter of the round post is Φ25mm. |
|
0.5X(standard outfits)、0.67X、1X、1.5XCCD adapters and kinds of stands to be selected.(CCD is selected to buy) |
|
Adjusting explanation: Loosen two screws above the Holder, the CCD attachment may revolve 360°so as to adjust the direction of CCD; meanwhile loosen three screws of the annular knurl part, and revolved the annular knurl part, it can adjust the high and low on focus. The top three screws can be adjusted when the CCD target surface isn’t in the central. |
Standard specification：
|
|
MZDR0850 |
|
Main body ZDR0850 |
● |
|
Special stand |
● |
|
Dimmer |
● |
|

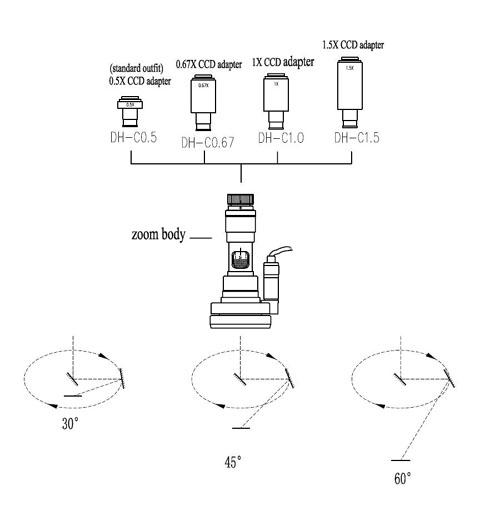

Three-dimensional rotated zoom video microscope systems(main body)analyzed picture: |
|
|
CCD adapter |
Optical magnification |
Total magnification |
Field of view(mm) |
Working distance(mm) |
Observing angle(from level direction) |
||||||||
|
0.5X (standard outfits) |
0.28X～1.875X |
16.65X～111X |
12.9X17.1～1.92X2.56 |
20 |
45° |
||||||||
|
0.67X |
0.4X～2.5X |
23.7X～148X |
9X12～1.44X1.92 |
||||||||||
|
1X |
0.56X～3.75X |
33.3X～222X |
6.4X8.6～0.96X1.28 |
||||||||||
|
1.5X |
0.84X～5.625X |
49.95X～333X |
4.3X5.7～0.64X0.85 |
||||||||||
|
Note：Total magnification, field of view are based on 1/3”CCD camera and14”monitor. |
|||||||||||||
|
Optional other observing angles and optical data: CCD adapter |
Optical magnification |
Total magnification |
Field of view(mm) |
Working distance(mm) |
Observing angle(from level direction) |
||||||||
|
0.5X (standard outfits) |
0.28X～1.875X |
16.65X～111X |
12.9X17.1～1.92X2.56 |
11 |
30° |
||||||||
|
0.67X |
0.4X～2.5X |
23.7X～148X |
9X12～1.44X1.92 |
||||||||||
|
1X |
0.56X～3.75X |
33.3X～222X |
6.4X8.6～0.96X1.28 |
||||||||||
|
1.5X |
0.84X～5.625X |
49.95X～333X |
4.3X5.7～0.64X0.85 |
||||||||||
|
Note：Total magnification, field of view are based on 1/3”CCD camera and14”monitor. |
|||||||||||||
|
CCD adapter |
Optical magnification |
Total magnification |
Field of view(mm) |
Working distance(mm) |
Observing angle(from level direction) |
||||||||
|
0.5X (standard outfits) |
0.1875X～1.25X |
11.1X～74X |
19.2X25.6～2.88X3.84 |
65 |
60° |
||||||||
|
0.67X |
0.25X～1.675X |
14.8X～99.3X |
14.4X19.2～2.1X2.9 |
||||||||||
|
1X |
0.375X～2.5X |
22.2X～148.2X |
9.6X12.8～1.44X1.92 |
||||||||||
|
1.5X |
0.5625X～3.75X |
33.3X～222.3X |
6.4X8.5～0.96X1.28 |
||||||||||
|
Note：Total magnification, field of view are based on 1/3”CCD camera and14”monitor. |
|||||||||||||
