1. Sharp stereo erect image over a wide field of view.
2. 45° inclined binocular head with locked-in eyepiece. The left ocular-tube with diopter adjustment ±5dp. The interpupillary distance is between 55-75mm.
3. Three kinds of rotational objective for selection: 1x/2x/3x or 1x/2x/4x.

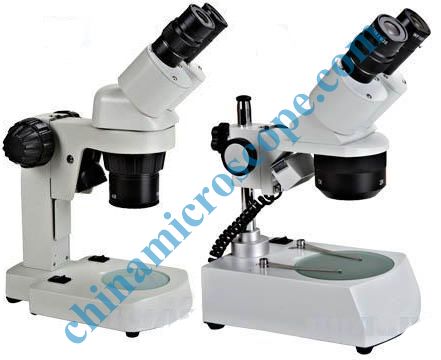

4. THH-8Cseries supplied with arm curved style stand: XTX-9A, XTX-9Csupplied with pillar style stand.
5. Product has CE approval.
6. Power supply 110V/60Hz or 220V/50Hz.
7. Illumination: 1.Incandescent lamp12V 10W 2.Halogen lamp12V 10W 3. High brightness LED lamp.
8. Each set packed in Styrofoam and in an inner box. Four sets in one carton. The outer measurement is 68x31x37cm
Specification
|
Model |
Eyepiece |
Objective |
Working Stage |
Illumination |
|
THH-8C-2 |
WF10X |
1X-2X 1X-3X 2X-4X |
Ø75mmFrosted glass |
Incident illumination & transmitted illumination |
|
THH-8C-3 |
WF10X |
1X-2X-3X 1X-2X-4X |
Ø75mmFrosted glass |
Incident illumination & transmitted illumination |
|
THH-9A |
WF10X |
Ø95mmWhite/black |
Incident illumination & transmitted illumination |
|
|
THH-9C |
WF10X |
Ø95mmFrosted glass |
Incident illumination & transmitted illumination |
Optical data: M means magnification, V means visual field, W means Working distance(mm)
O means Objective Magnification
|
Model |
O |
EYEPIECES |
W |
|||||||
|
5X |
10X |
15X |
20X |
|||||||
|
M |
F |
M |
F |
M |
F |
M |
F |
|||
|
THH-8C |
1X |
5X |
20.0mm |
10X |
20.0mm |
15X |
15.0mm |
20X |
10.0mm |
76mm |
|
2X |
10X |
10.0mm |
20X |
10.0mm |
30X |
7.5mm |
40X |
6.5mm |
||
|
3X |
15X |
7.0mm |
30X |
20.0mm |
15X |
15.0mm |
20X |
10.0m |
76mm |
|
|
4X |
20X |
5.0mm |
40X |
6.7mm |
45X |
5.0mm |
60X |
4.3m |
||
|
THH-9 |
1X |
5X |
20.0mm |
20X |
10.0mm |
30X |
7.5mm |
40X |
6.5m |
76mm |
|
2X |
10X |
10.0mm |
40X |
5.0mm |
60X |
3.7mm |
80X |
3.2m |
||
|
3X |
15X |
7.0mm |
20X |
10.0mm |
30X |
7.5mm |
40X |
6.5m |
76mm |
|
|
4X |
20X |
5.0mm |
40X |
5.0mm |
60X |
3.7mm |
80X |
3.2m |
||
