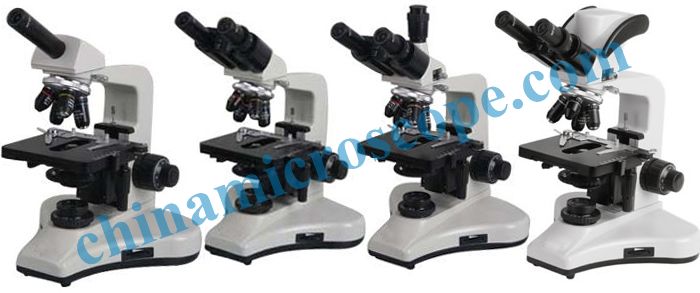

XSY-J2M

XSY-J2B

XSY-J2T

XSY-J2D

Viewing Head

Monocular Head，30º Inclined，360º Rotatable

●

Articulated Free Binocular Head，Interpupillary Distance：55-75mm；30º Inclined，360º Rotatable

●

Articulated Free Trinocular Head，Interpupillary Distance：55-75mm；30º Inclined，360º Rotatable

●

Articulated Free Binocular Head, Intepupillary Distance:55-75mm, 30ºInclined, 360ºRotatable Built-in Digital Camera System, Resolution:1.30M,3.0Mor5.0MPixel USB2.0 with Micro-image Process Software

●

Eyepiece

Wide Field Plane-Scope Eyepiece: WF10X

●

●

●

●

WF16X

○

○

○

○

45mm DIN Achromatic Objective: 4X,10X,40X(S),100X(s,oil);

●

●

●

●

Nosepiece: Forward Quadruple Nosepiece

●

●

●

●

Double  Layers Mechanical Stage:140X155mm,Moving Range X-Y: 70X50mm

●

●

●

●

Ø2-Ø30mmIris Diaphragm And Ø32 Filter with ABBE Condenser: N.A. 1.25

●

●

●

●

Coaxial Coarse And Fine Focusing Adjustable Mechanism:30mm, Precision:0.002mm

●

●

●

●

Built-in illumination:

Halogen Lamp 6V/20W

●

●

●

●

Inca-descent Lamp 20W, Fluorescent Lamp

○

○

○

○

5W,LED Lamp

○

○

○

○

1W,LED Lamp with Rechargeable Device

○

○

○

○
