Specification |

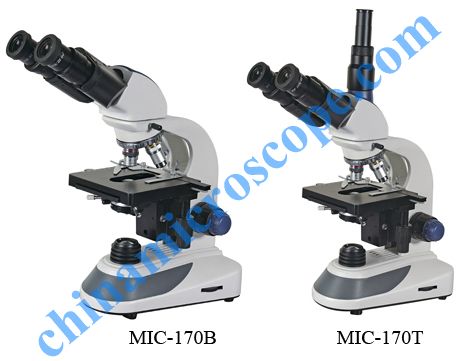

Model |
||||
|
MIC-170 |
MIC-170B |
MIC-170T |
MIC-170BT |
||
|
Head |
Compensation Free Binocular Head, Inclined at 30° ( 48mm -75mm ) |
● |
● |
|
|
|
Compensation Free Trinocular Head, Inclined at 30° ( 48mm -75mm ) |
|
|
● |
● |
|
|
Eyepiece |
WF10 X 18mm |
● |
● |
● |
|
|
WF10 X 22mm |
|
|
|
● |
|
|
|
|
|
|
|
|
|
Objective |
Achromatic Objective： 4X ， 10X ， 40X(S)，100X (S) Oil |
● |
|
|
|
|
infinity Achromatic Objective： 4X ， 10X ， 40X(S)，100X (S) Oil |
|
● |
● |
● |
|
|
Stage |
Double layer mechanical stage |
|
|
|
|
|
Stage Size：132mmx 140mm |
● |
● |
● |
● |
|
|
Moving Range： 70mmx 50mm |
|
|
|
|
|
|
Condenser |
N. A.1.25 Abbe condenser with iris diaphragm and filter |
● |
● |
● |
● |
|
Focusing |
Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.002mm focusing range 30mm |
● |
● |
● |
● |
|
Light Source |
LED,brightness adjustment |
● |
● |
● |
● |
|
Optional Accessory |
Eyeppiece: WF16x,WF20x,P16x Achromatic Objective：20X(S)、60X(S) Plan objective：4X,10X,20X(S),40X(S),60X(S),100X(S)Oil infinity plan objective: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil Dual viewing head Dark field and phase contrast attachment 1.3Mega、3.0Mega、5.0Mega、10.0Mega COMS digital camera eyepiece Photography attachment and CCD C-mount:0.5X、0.57X、0.75X CCD Camera,colur1/3 High resolution 700 TV lines |
||||
