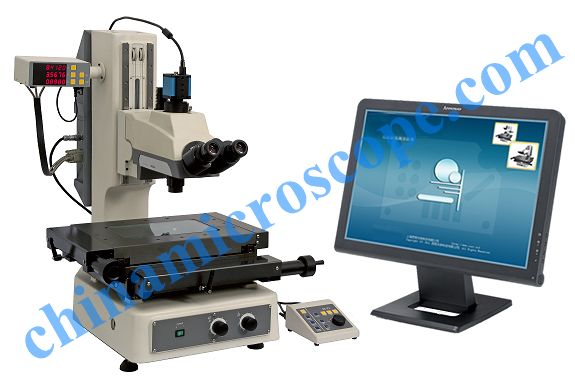

MIC-SQM-FA Microscope
Digital imaging and image processing measurement techniques bigger stage. 300 × 200 for measuring stroke improves the processing capability of the workpiece, using a positive optical system (video image of the article in the same direction) Z-height non-contact measurement and data processing system to work various lighting options optical cross linkage ergonomic design.
MIC-SQM-FA Measuring Microscope Function Icon
1.Assistant focus, guarantee the precision of Z axis
2.Excellent optical system Suitable for the
application of of microscope photographic devices.
3.High-brightness white LED illumination
4.The Z axis electrical moving control Professional controller makes movement more easy and accurate
5.Inner fixed Z axis Linear grating ruler, when carrying on Non-contact height test can read data on Z axis
6.Perfect transmitting illumination, good for outline measurement precision.
Characteristic:
A new optical system can produce clear as in large range
Domestic first ternary system measuring tool microscope
High numerical aperture objective lens
Lighting system (reflection / transmission) High Brightness LED

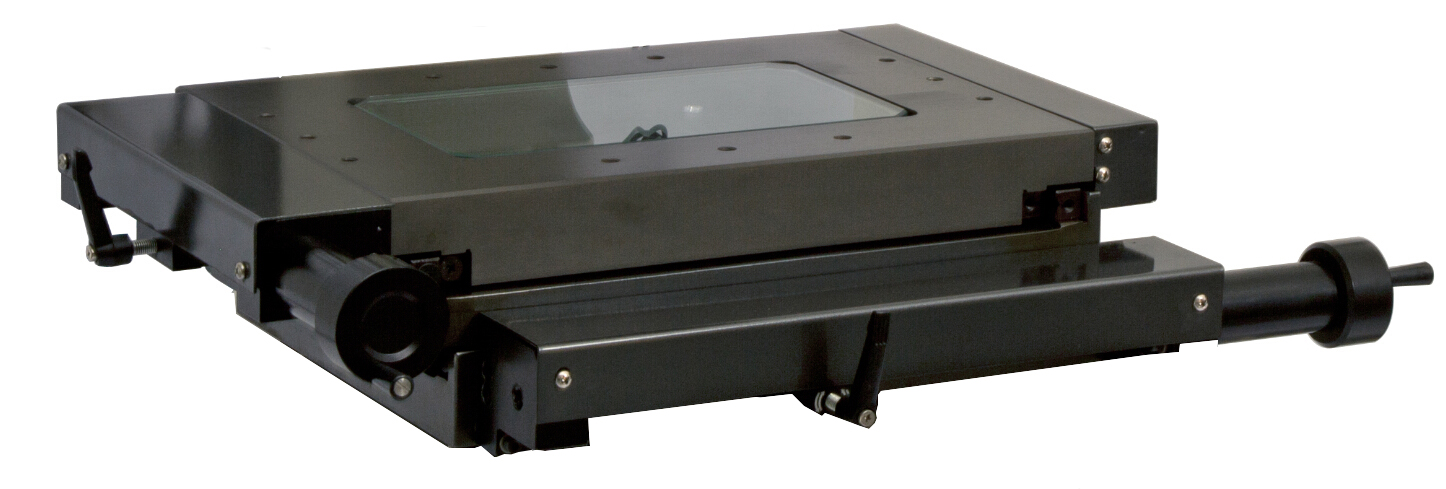

Workbench
Standard size varied, up to 300 *
The measurement of large size or weight, can use the quick release device for rapid moving table
Standard high-precision electric focusing hand wheel, not only to meet the human body works, more suitable for different optical systems and measuring environmental requirements
This ensures that the exact aggregation and observation method, and has nothing to do with handedness
The detection of high magnification eyepiece magnification up to 100X
Standard measuring microscope, optional accessories include imaging system (video device) with a variety of digital CCD cameras
Low-noise design

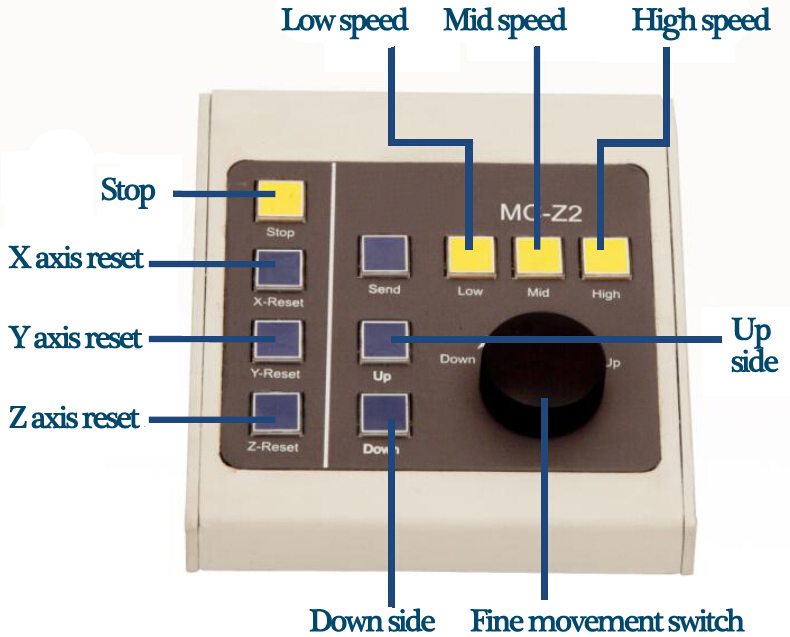

With automatic controller, users will experience more easier
operation.minimum moving range is 0.1um, fully meets customers test efficiency
and precision requirement.

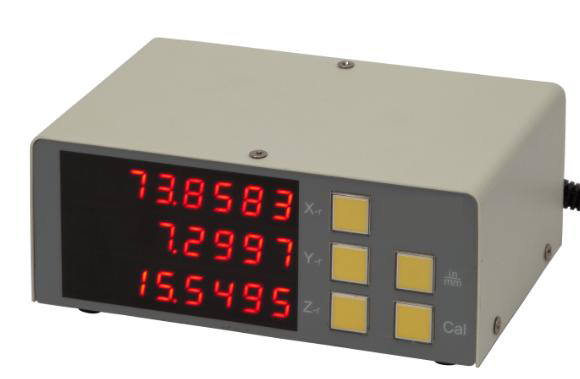

Digital display applied on the microscope main body, it is fixed almost the same height as the tester field of view, very comfortable for operation, minimum move of X,Y,Z axis can be switched between 1um and 0.1um, digital display can be switched between mm and inch,support hardware linear compensation
Large stage with firm Scratch resistant coating, makes your machine looks nice after long time usage.

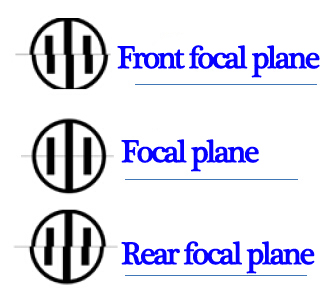

Focus assistance
During height test, due to the depth of
field of objective, different operators judge the focal plane with their
subject feeling, thus focus assistance offers one objective standard, avoiding
utmost personal error

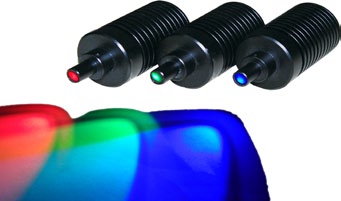

Long life time LED light, guarantee full illumination with over 20000 hours usage, avoiding the problem of changing halogen bulbs.

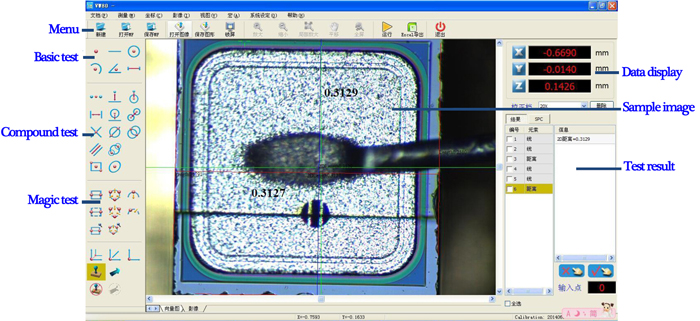

Measuring software
Application field:
Semiconductor packaging Hard drive sliding head MEMS Injection molding parts
FPD panel Measurement precision knife Stamping parts Wafer level CSP
Specification
|
Model |
VITT MIC-SQM-FA |
|
|
The eyepiece lens |
Binocular tube, with a standard camera interface; Cross (cross line); Optical path switching (observed / camera =50/50) |
|
|
The observed image |
Positive |
|
|
Methods of Observation |
Bright field observations polarized light observation |
|
|
Adjustable eyepiece diopter |
10/20x, 20x/16 optional |
|
|
Objective |
Standard lens 5x, 10x, 20x, 50x |
|
|
Focusing System |
Z-axis motor control (fast, medium and slow 3-way adjustable) |
|
|
Lighting |
Adjustable aperture, field of aperture |
|
|
Light source |
Transmission (led illuminator, collimated light) |
|
|
Epi (led lighting, coaxial light) |
|
|
|
Measuring range |
300 *200mm, 200 *100mm |
|
|
Quick release device |
X and y axis standard |
|
|
Length measuring system |
High precision digital scale |
|
|
Digital counters |
Minimum reading 0.1um, RS232Coutput |
|
|
External Dimensions (W * D * H) |
380*705*725mm |
|
|
Measurement Accuracy |
X and y: 3 + L/200 ,3-L / 200. L is the measured length |
|
|
z-axis |
Maximum stroke:200mm |
|
|
Focusing method: Electric hand wheel control adjustment (fast, medium and slow) |
||
|
Linear scale: built-in |
|

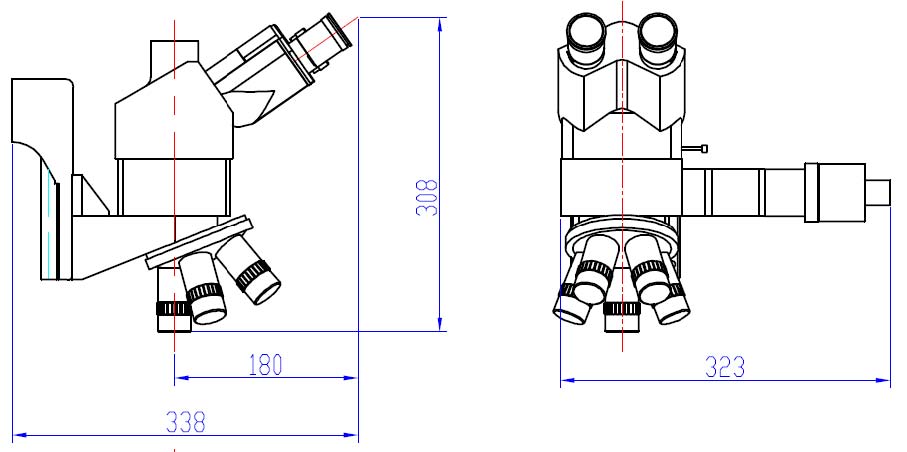

MIC-SQM-FA optical head Description

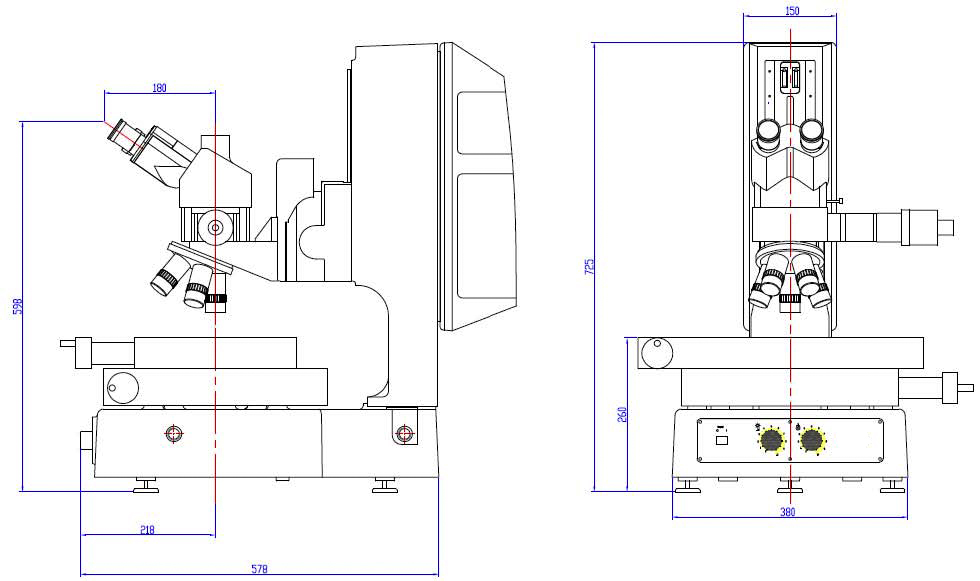

External dimensions (Unit: mm)

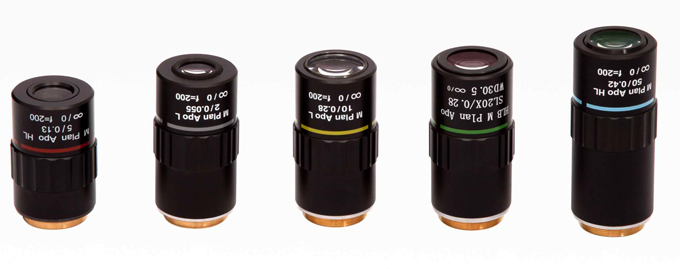

Objectives
Focus is completed, long working distance objective lens between the top surface and the workpiece surface can have a wide space, easy operation on the workpiece.
