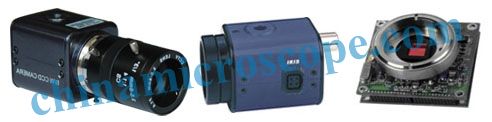

MIC-902 micro- industrial high-definition cameras
FEATURES:
1、 Micro-industrial high-definition cameras used SONY CCD sensor and a better
life, better reliability and stability.
2、DSP digital
signal processing technology, so that a clearer image, outline more clearly
defined and stronger contrast.
3、 Micro-industrial high-definition cameras excellent eliminate interference
ultrasound in the signal、 a high-quality images and high sensitivity
4、Using 3 D
digital fall noise system, can be more clear color images
5、 AGC:
advanced digital backlight compensation function
6、 compact and
cabinet appearance, lower power consumption
APPLICATIONS:
Micro-industrial high-definition cameras used :industrial inspection、industrial measurement、medical imaging、image recognition、orientation、industrial supervising、 instrumentation、machine vision and others
industrial automation.
SPECIFICATIONS：
|
MODEL |
MIC-902HC(color) |
MIC-912HC(color) |
MIC-902H(B/W) |
|
Image Sensor Device |
1/3"SONY CCD |
||
|
Effective Pixels |
752(H)X582(V) |
||
|
System of Signal |
NTSC/PAL |
NTSC/PAL |
CCIR/EIA |
|
Horizontal Resolution |
480 TVL |
520 TVL |
600 TVL |
|
Minimum illumination |
0.5lux at F1.2 |
0.1lux at F1.2 |
0. 001lux at F1.2 |
|
S/N Ratio |
>48dB |
>52dB |
>52dB |
|
Electronic Shutter |
1/50-1/100,000/sec |
||
|
Electronics Shutter Control |
ON/OFF（Switchable） |
||
|
Automatic Gain Control |
ON/OFF（Switchable） |
||
|
Backlight Compensation |
ON/OFF（Switchable） |
||
|
White Balance |
ON/OFF（Switchable） |
||
|
Lens mounting |
C/CS |
||
|
Auto iris lens control |
VIDEO/DC |
||
|
Video output |
1.0Vp-p,75Ω |
||
|
Power Supply |
DC12V |
||
|
Operating Temperature |
-10℃-+50℃ |
||
|
Dimension(mm) |
38(W)×38(H)×50(D) |
||
|
Weight(g) |
About250g |
||
