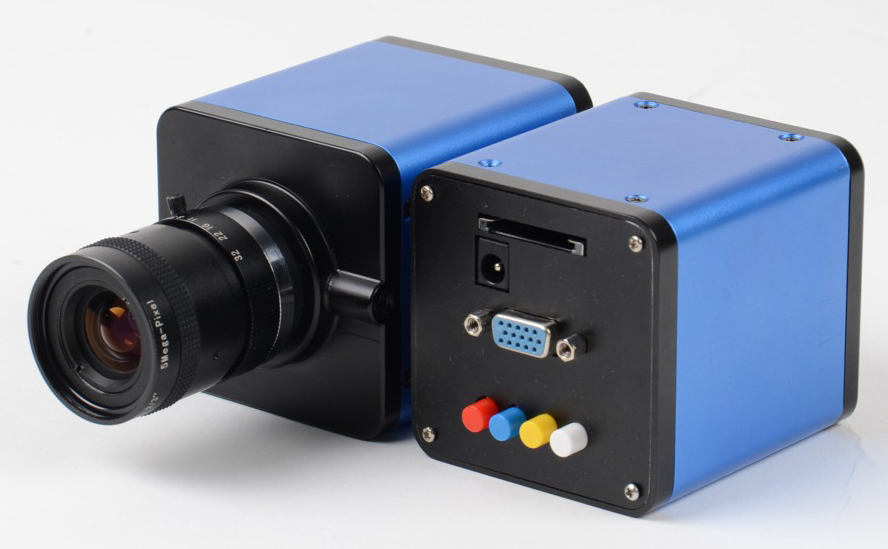

VGA CAMERA
|
Image Pickup Device |
5MP Micron MT9P03 CMOS (Color) |
|
|
Scan Mode |
Progressive |
|
|
Max. Resolution |
1280X720 (16:9) |
|
|
frame rate |
30fps @720P |
|
|
OSD menu |
on/off |
|
|
Exposure |
automatic&closed |
|
|
White balance |
automatic& manual &closed |
|
|
Sensor Size (Diagonal) |
1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm) |
|
|
Pixel Size |
2.2μm x 2.2μm |
|
|
Spectral Range |
380-650nm (infrared filter included) |
|
|
Color engine |
Ultra FineTM color engine |
|
|
Video preview |
video/capture |
|
|
Image storage |
SD card |
|
|
INTERFACE & BUTTON FUNCTIONS |
||
|
|
1X VGA output 1X SD card slot 1X power input |
|
|
Red |
Reticle show: on/off |
|
|
Blue |
Storage in SD card |
|
|
Yellow |
Auto-exposure, WB, on/off |
|
|
White |
Video capture：on/off |
|
|
Power Supply |
||
|
AC input |
100-240VAC 50/60Hz (AC/DC power adapter) |
|
|
DC output |
DC 5V/3A |
|
|
dimension |
||
|
L×W×H |
68 mm (2.67”) × 68 mm (2.67”) × 92mm (3.62”) |
|
|
Weight |
0.25 kg (0.55 lbs) |
|
|
OPERATING ENVIRONMENT |
||
|
Operating Temperature |
0°C (32°F) to 40°C (104°F) |
|
|
Storage Temperature |
–20°C (–4°F) to 60°C (140°F) |
|
|
Operating Humidity |
15% to 85%,RH |
|
|
Storage Humidity |
10% to 90%,RH |
|
|
Optional |
||
|
Lens |
C-mount lens |
|
|
Cable |
VGA data cable |
|
|
SD |
SD card |
|

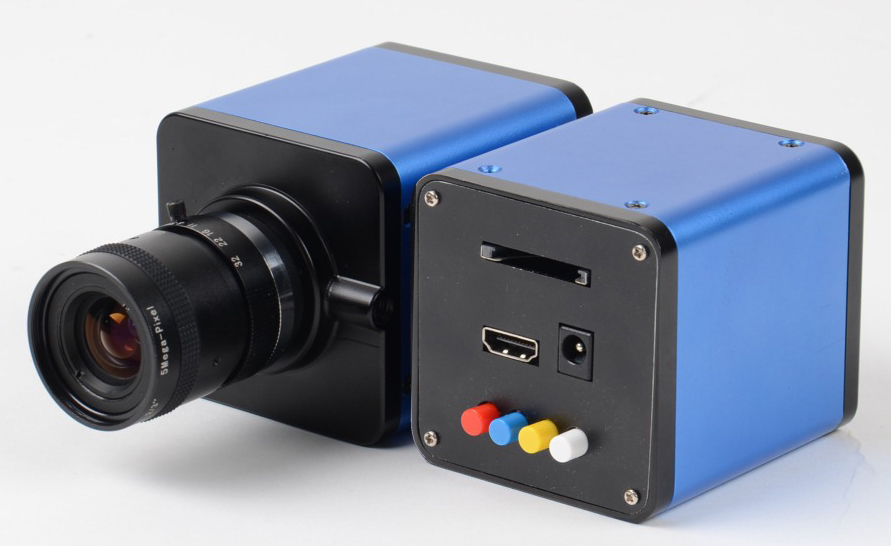

HDMI CAMERA
1. 1/2.5”CMOS color
2. 5M pixel/720P
3. standard C-Mount
4. HDMI output
5. SD card
6. manual exposure control
7. manual white balance control
8. 30FPS high frame image
|
Image Pickup Device |
5MP Micron MT9P03 CMOS (Color) |
|
|
Scan Mode |
Progressive |
|
|
Max. Resolution |
1280X720 (16:9) |
|
|
frame rate |
30fps @720P |
|
|
OSD menu |
on/off |
|
|
Exposure |
automatic&closed |
|
|
White balance |
automatic& manual &closed |
|
|
Sensor Size (Diagonal) |
1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm) |
|
|
Pixel Size |
2.2μm x 2.2μm |
|
|
Spectral Range |
380-650nm (infrared filter included) |
|
|
Color engine |
Ultra FineTM color engine |
|
|
Video preview |
video/capture |
|
|
Image storage |
SD card |
|
|
INTERFACE & BUTTON FUNCTIONS |
||
|
|
1X HDMI output 1X SD card slot 1X power input |
|
|
Red |
Reticle show: on/off |
|
|
Blue |
Storage in SD card |
|
|
Yellow |
Auto-exposure, WB, on/off |
|
|
White |
Video capture：on/off |
|
|
Power Supply |
||
|
AC input |
100-240VAC 50/60Hz (AC/DC power adapter) |
|
|
DC output |
DC 5V/3A |
|
|
dimension |
||
|
L×W×H |
68 mm (2.67”) × 68 mm (2.67”) × 92mm (3.62”) |
|
|
Weight |
0.25 kg (0.55 lbs) |
|
|
OPERATING ENVIRONMENT |
||
|
Operating Temperature |
0°C (32°F) to 40°C (104°F) |
|
|
Storage Temperature |
–20°C (–4°F) to 60°C (140°F) |
|
|
Operating Humidity |
15% to 85%,RH |
|
|
Storage Humidity |
10% to 90%,RH |
|
|
Optional |
||
|
Lens |
C-mount lens |
|
|
Cable |
HDMI data cable |
|
|
SD |
SD card |
|
DIV CAMERA
1. 1/2.5”CMOS color
2. 5M pixel/720P
3. standard C-Mount
4. HDMI / DVI output
5. SD card
6. manual exposure control
7. manual white balance control
8. 30FPS high frame image
