hardware configuration

imaging sensor

APtina AR0330 CMOS Sensor

scan patterns

Scan line by line

The maximum resolution

2304 x 1536 (3,538,944 pixels)

Sensor Optical Format

1/3'' (5.07mm(H) x 3.38mm(V), Diagona 6.09mm)

Pixel Size

2.2μm x 2.2μm

Dynamic Range

69.5dB

ADC

12-bit, 8-Bit R.G.B to PC

SNR（Signal Noise Ratio）

39dB

Spectral Characteristics

380-650nm

Video Mode Resolution

1080P@30FPS, 720P@30FPS, WVGA@30FPS

Snapshot Mode Resolution

2304 x 1536 ，2304 x 1296，1920x1080，1280x720，800x480

Exposure Capability

Real-time auto, Single auto, Manual adjustment

White Balance

Real-time auto, Single auto, Manual adjustment

Software Interface

DirectShow

Capture modes


Resolution：1920x1080，1280x720，800x480

Format：JPG

Video

Resolution：2304 x 1536 ，2304 x 1296，1080P@30FPS, 720P@30FPS, WVGA@30FPS

Format：MOV

Record Route

The local and TF card

Interface parameter

Camera Interface

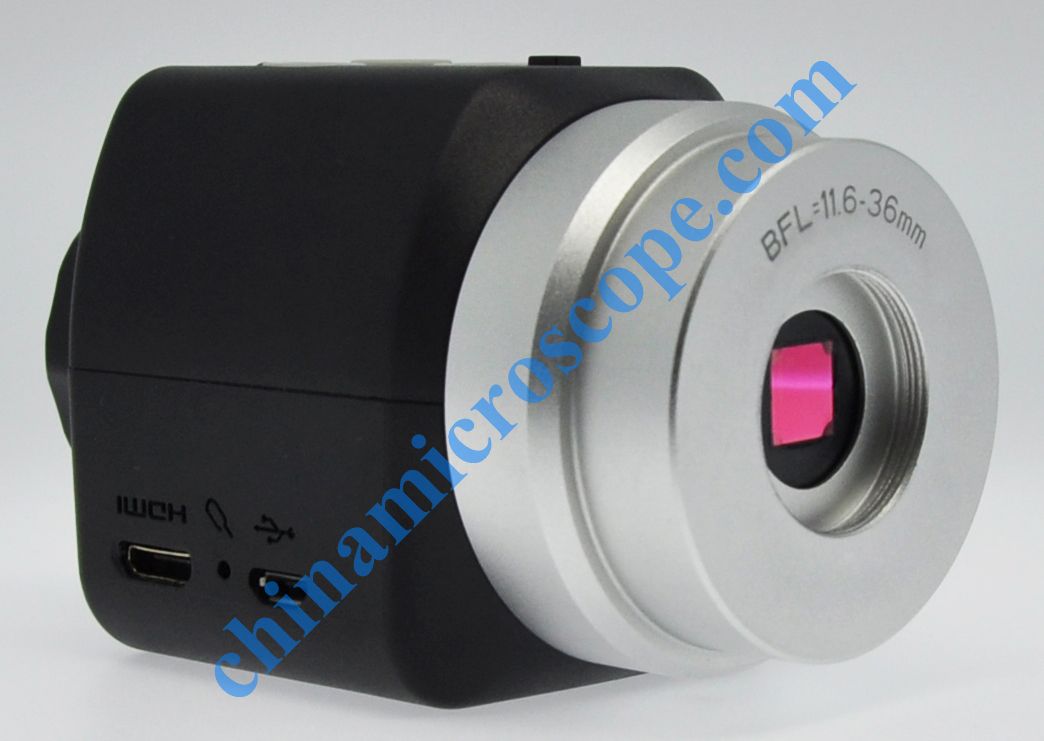

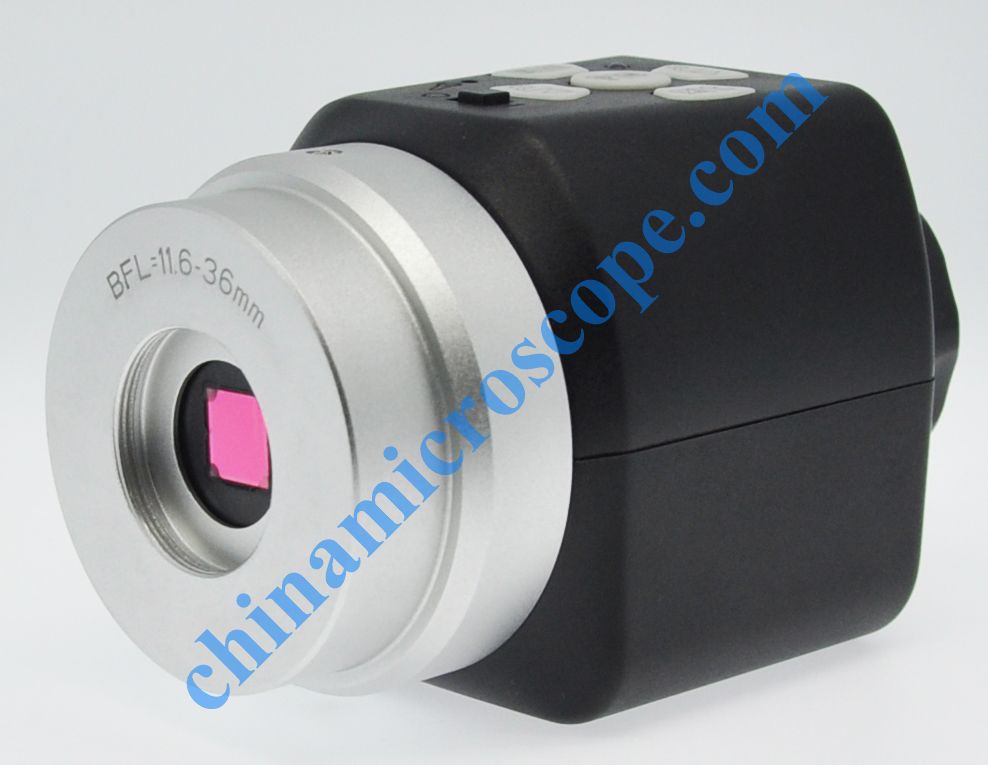

C mount thread（1＂×1/32）BFL: 11.6-36mm

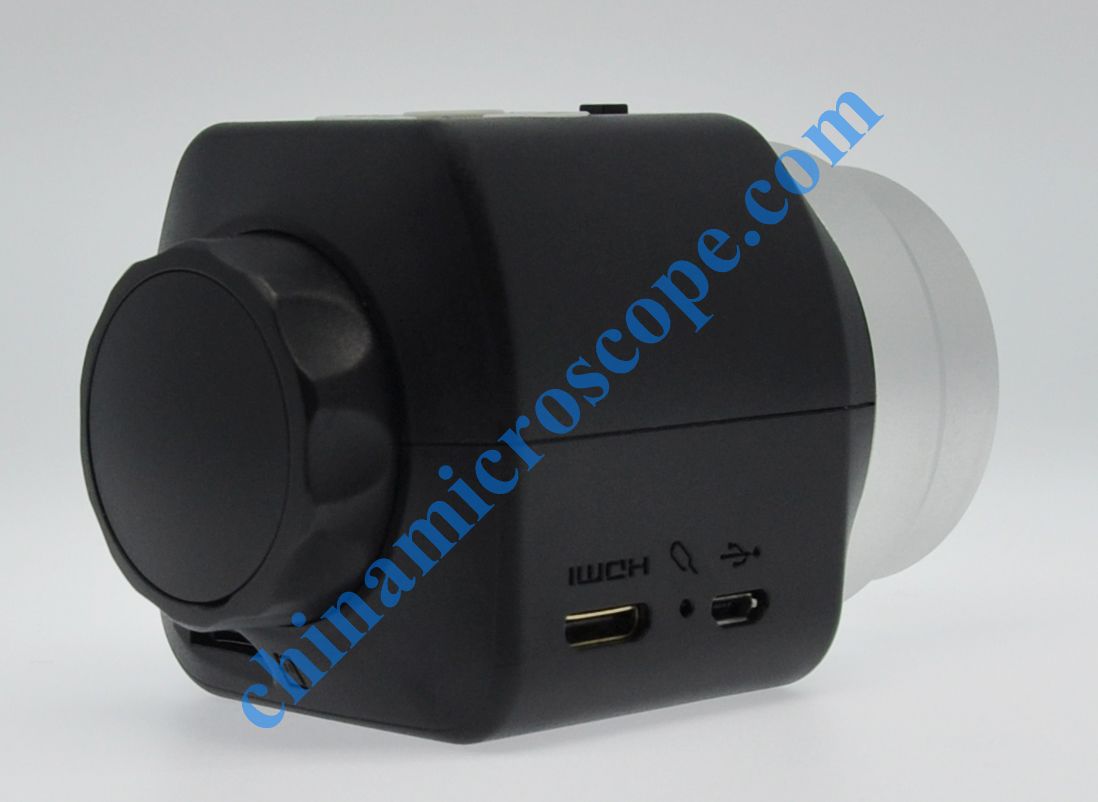

Image Interface

HDMI Model：Mini HDMI

USB Model：Micro USB

Charge Interface

Micro USB，DC5.0V 2A

Software Environment

Operation system

Microsoft® Windows® XP / 7 / 8 /8.1/10(32 & 64 bit)

Computer Configuration

CPU: equal or more than the second generation Intel core 2.8GHz

memory ：2G or more

USB port：USB2.0 high speed port or compatible port

displayer ：suggest 17 inches or larger

Operating Environment

operating temperature

0℃~ 40℃

storage temperature

-20℃~ 60℃

operating Humidity

30~80%RH

Storage Humidity

10~60%RH
