MIC-M serials Industry LCD Microscope
Feature:
1. 9" HD LCD screen, resolution: 1280*800. Deeply resolve fatigue for longterm working and improve effiency.

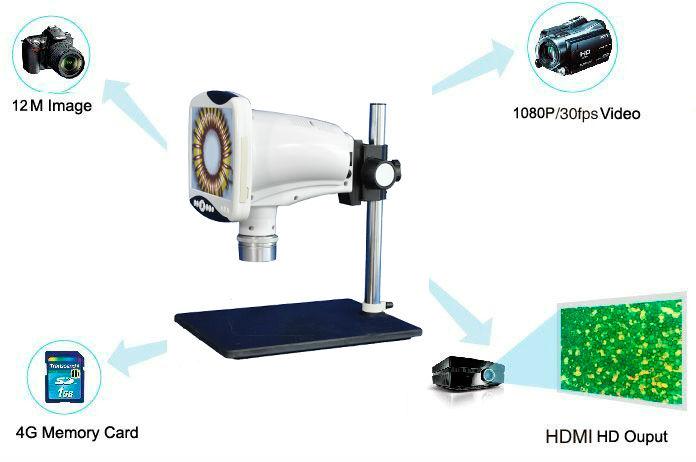

2.The highest 12M images ,1080P/30fps HD video with memory card(Max:64G) to store inspection results anytime ,no need to connect to PC.
3.1X objective and zooming range :07X-4.5X. Total magnifications:9X-76X.
4. HDMI HD output, freely connect to big monitor to anaysis.
5. LED illumination with longterm life expectancy.
6. Improving working efficiency and reducing labor intensity
7.It can be conveniently applied to testing and inspecting in product assembly, research and teaching fields.
Product Function
Crosshari function
Cables Metal fault PCB Board Wafter

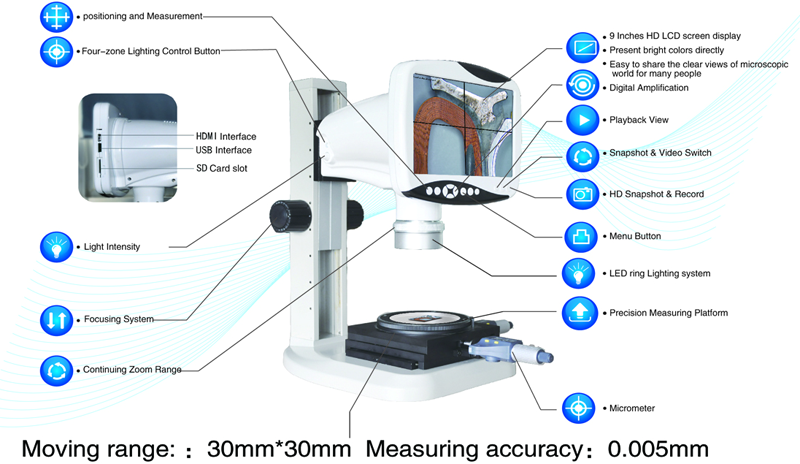

Details

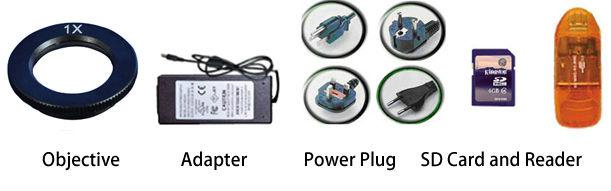

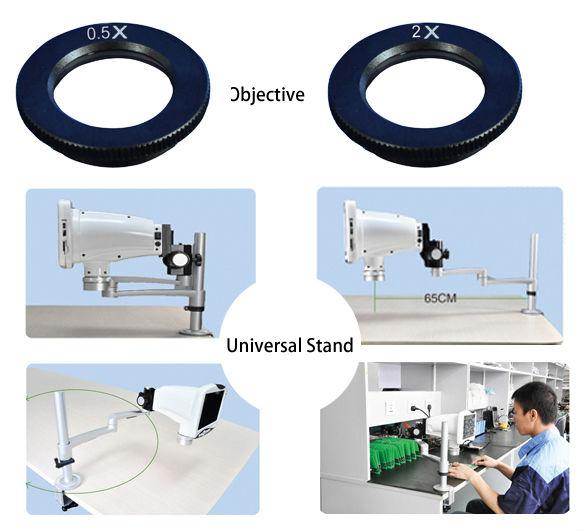

Optional part
MIC-M serials Industry LCD microscope Specifications
|
Model Specifications |
M-11 |
M-12 |
M-13 |
M-21 |
M-22 |
M-23 |
M-24 |
|
LCD Screen |
9 Inches HD |
9 Inches HD |
9 Inches HD |
9 Inches HD |
9 Inches HD |
9 Inches HD |
9 Inches HD |
|
LCD Resolution |
1280×800 |
1280×800 |
1280×800 |
1280×800 |
1280×800 |
1280×800 |
1280×800 |
|
Image Resolution |
No |
5M |
5M |
No |
5M |
5M |
12M |
|
Video Resolution |
No |
No |
720P/30fps |
No |
No |
720P/30fps |
1080P/30fps |
|
Photo/Video Playback |
No |
Yes |
Yes |
No |
Yes |
Yes |
Yes |
|
Data Output |
No |
No |
HDMI |
No |
HDMI |
HDMI |
HDMI |
|
External Interface |
No |
No |
Projector/ Monitor |
No |
Projector/ Monitor |
Projector/ Monitor |
Projector/ Monitor |
|
Measurement |
Crosshair |
Crosshair |
Crosshair |
Crosshair |
Crosshair |
Crosshair |
Crosshair |
|
Positioning |
Crosshair/ Arrow Pointer |
Crosshair /Arrow Pointer |
Crosshair /Arrow Pointer |
Crosshair/ Arrow Pointer |
Crosshair/ Arrow Pointer |
Crosshair/ Arrow Pointer |
Crosshair/ Arrow Pointer |
|
Coordinate Colors |
Black/White /Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
Black/White/ Red/Blue/ Green |
|
Objectives |
0.5 x / 1x/2x/3x/4x (Optional) |
0.5 x / 1x/2x/3x/4x (Optional) |
0.5 x / 1x/2x/3x/4x (Optional) |
Continuing Zoom Range 0.7～4.5 |
Continuing Zoom Range 0.7～4.5 |
Continuing Zoom Range 0.7～4.5 |
Continuing Zoom Range 0.7～4.5 |
|
Digital Magnifications |
8X |
8X |
8X |
8X |
8X |
8X |
8X |
|
Storage |
No |
SD Card |
SD Card |
No |
SD Card |
SD Card |
SD Card |
|
Exposure |
Manual/Auto |
Manual/Auto |
Manual/Auto |
Manual/Auto |
Manual/Auto |
Manual/Auto |
Manual/Auto |
|
White Balance |
Manual/Auto |
Manual/Auto |
Manual/Auto |
Manual/Auto |
Manual/Auto |
Manual/Auto |
Manual/Auto |
|
Color Mode |
Color/Black& White/Negative |
Color/Black& White/Negative |
Color/Black& White/Negative |
Color/Black& White/Negative |
Color/Black& White/Negative |
Color/Black& White/Negative |
Color/Black& White/Negative |
|
Illumination |
Four-zone LED Ring Lighting Control |
Four-zone LED Ring Lighting Control |
Four-zone LED Ring Lighting Control |
Four-zone LED Ring Lighting Control |
Four-zone LED Ring Lighting Control |
Four-zone LED Ring Lighting Control |
Four-zone LED Ring Lighting Control |
|
Stand |
Round Stand |
Round Stand |
Round Stand |
Round Stand |
Round Stand |
Round Stand |
Round Stand |
