1

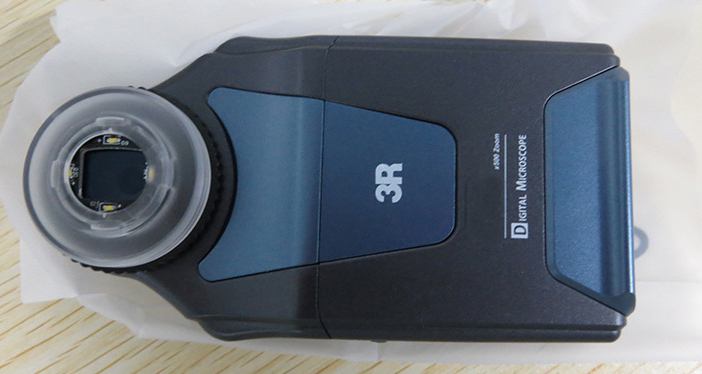

Model

MIC -006

2

Size

115L x 68W x 24.6H mm

3

Sensor

5.0 Megapixels CMOS

4

Image Resolution

1.3 Mega Pixels (1280 X 960)

3.0 Mega Pixels (2048 X 1536)

5.0 Mega Pixels (2560 X 1920)

5


JEPG

6

Resolution

VGA (640 X 480)

QVGA (320x240)

7

Recording

AVI

8

Zoom

Hardware Zoom: 17X magnification

Smart Zoom TM: 8X (Applying) for magnifier mode

Digital Zoom: 1.0X ~32X

Total Enlarge image to 544X (17X32=544X)

9

Working Distance

Manual Focusing: 10mm ~ 50mm

10

Playback zoom

4X

11

Scale

Rule for measuring length reference (TBD)

12

Lens

High sensitivity lens

13

Shutter

1/2 to 1/2000 seconds

14

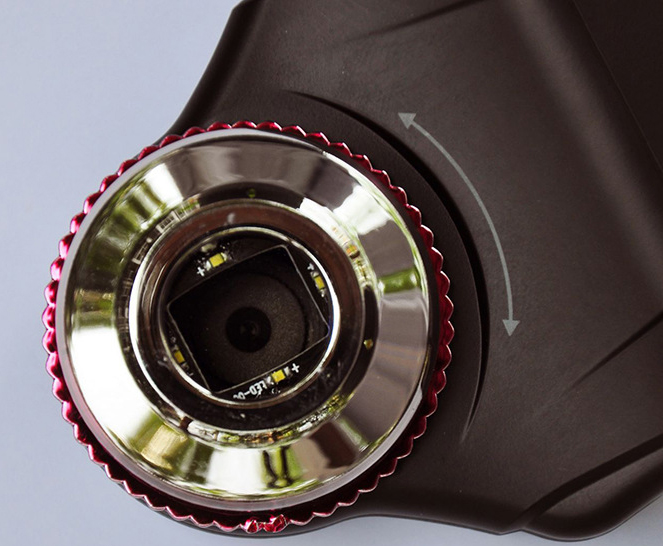

LED

4 White LED with super high brightness(Manual Adjust)

15

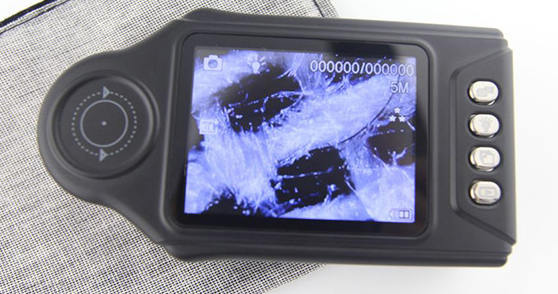

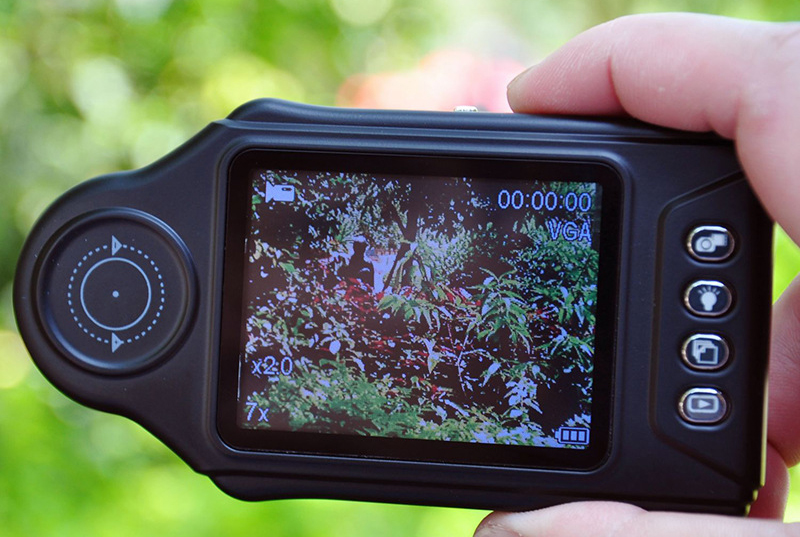

Monitor

2.7inch TFT color LCD screen

16

Flash

2MB Data FLASH, capacity -60pictures

17

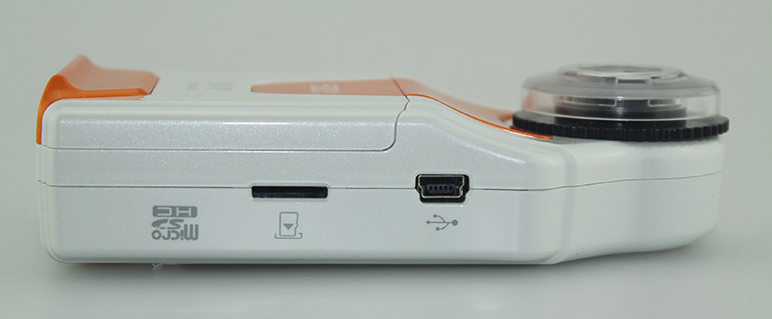

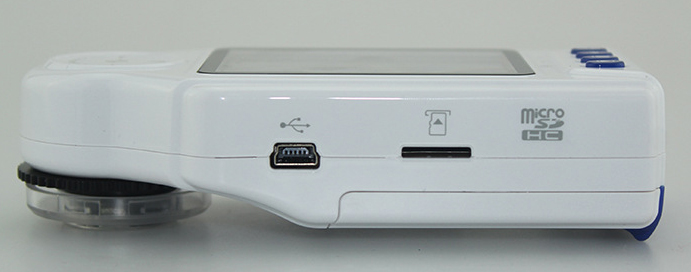

Interface

USB 2.0 to PC and SD card optional

18

Serial port

DC IN terminal (mini USB plug )

19

Power

4 x AAA, RO3, 1.5V alkaline batteries

AC transformer(Output :DC 5.0V/100mA)

Input: AC 100-240V 50/60Hz)

20

Power consumption

Maximum =220mA (with LED) on at highest illumination

21

Weight

Approximately 70 grams (not including batteries )

22

Working Temperature

-50C to 50C

23

Wording humidity

Below 85%(no dew) recommended

24

Power life

Photo capture >/ 100 shots, CIPA(TBA)

25

Language

S-Chinese, T-Chinese, English, German, Italian,

Portuguese, Russian, French, Spanish

26

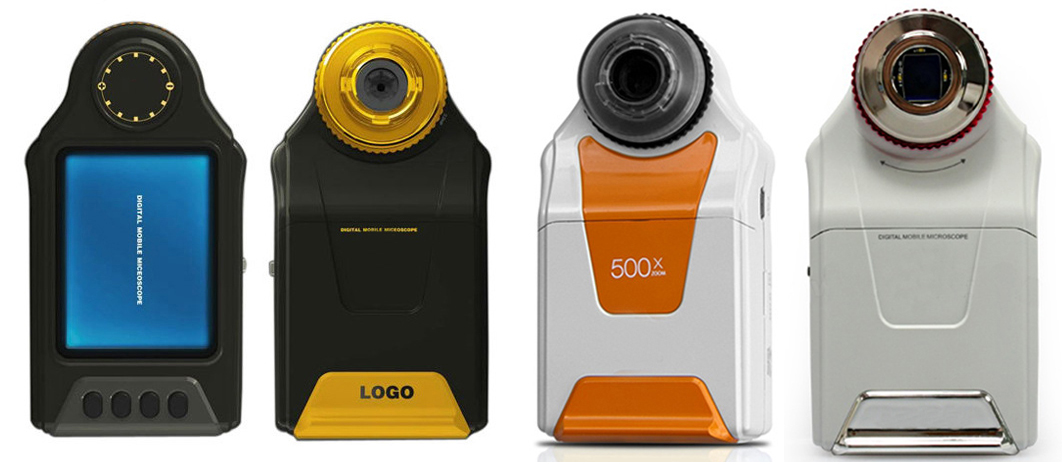

Color Optional

Black and White

Operation System

Windows XP SP3 /Vista /Windows7

 Mac 10.4 or above

CPU

Pentium 4 / 3.0G or faster recommended

RAM

1 GB MB RAM (Vista : 2 GB)

Interface

USB port

CD ROM

CD ROM Driver
