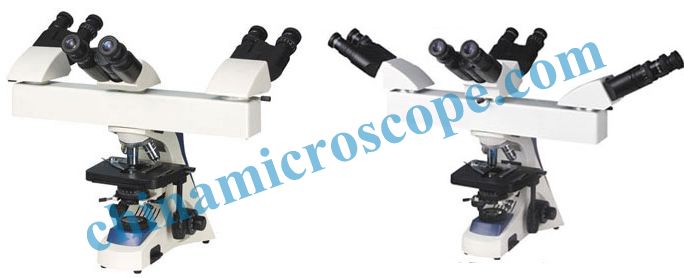

This serials microscope is designed for several people to observe one specimen together at the same time. It has infinity imaging system, high light illumination system and provide sharp & clear image. Particularly, it is suitable for discussion application in Clinic, Research and Teaching.
|
Specification |
MIC-608 |
MIC-608A |
|
|
Viewing Head |
Compensation Free Binocular Head, Inclined at 30° 3Teaching binocular head（55mm-75mm） |
● |
|
|
Compensation Free Binocular Head,Inclined at 30° 4 Teaching binocular head（55mm-75mm） |
|
● |
|
|
Eyepiece |
WF10×/22mm |
● |
● |
|
Objective |
Infinity Achromatic Objective;4×10×40×(s)100×(s)Oil |
● |
● |
|
Stage |
Double layer mechanical stage |
● |
● |
|
Stage Sixe:180mm×150mm |
● |
● |
|
|
Moving Range:75mm×50mm |
● |
● |
|
|
Condenser |
N.A.1.25Abbe condenser with iris diaphragm and filter |
● |
● |
|
Focusing |
Coaxial coarse & fine focusing adjustment Fine focusing scale value0.002mm |
● |
● |
|
Light Source |
Halogen Bulb 12V30W. AC85V-230V Adjustable brightness |
● |
● |
|
Illuminator |
High-light Kohler illumination |
● |
● |
|
Optional Accessory |
Eyepiece：WF16×、WF20×、 |
||
|
Infinity Plan Objectives：20×、60 (s)、 |
|||
|
Infinity Plan Achromatic Objectives:4×10× 20× 40×(s)60×(s)100×(s)Oil |
|||
|
Other model base frame is available Compensation Free Binocular & Trinocular |
|||
|
Head（48mm-75mm） |
|||
|
LED cursor(Pointer) |
|||
