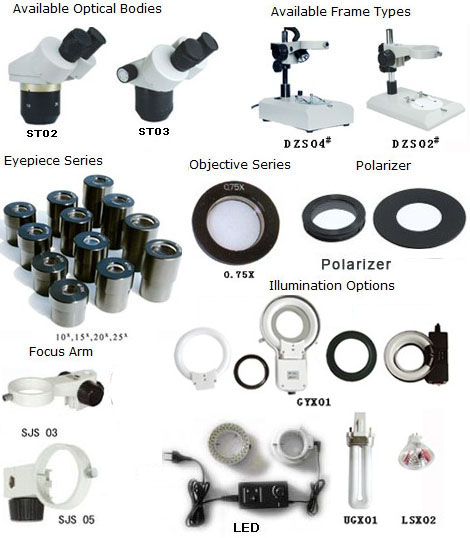

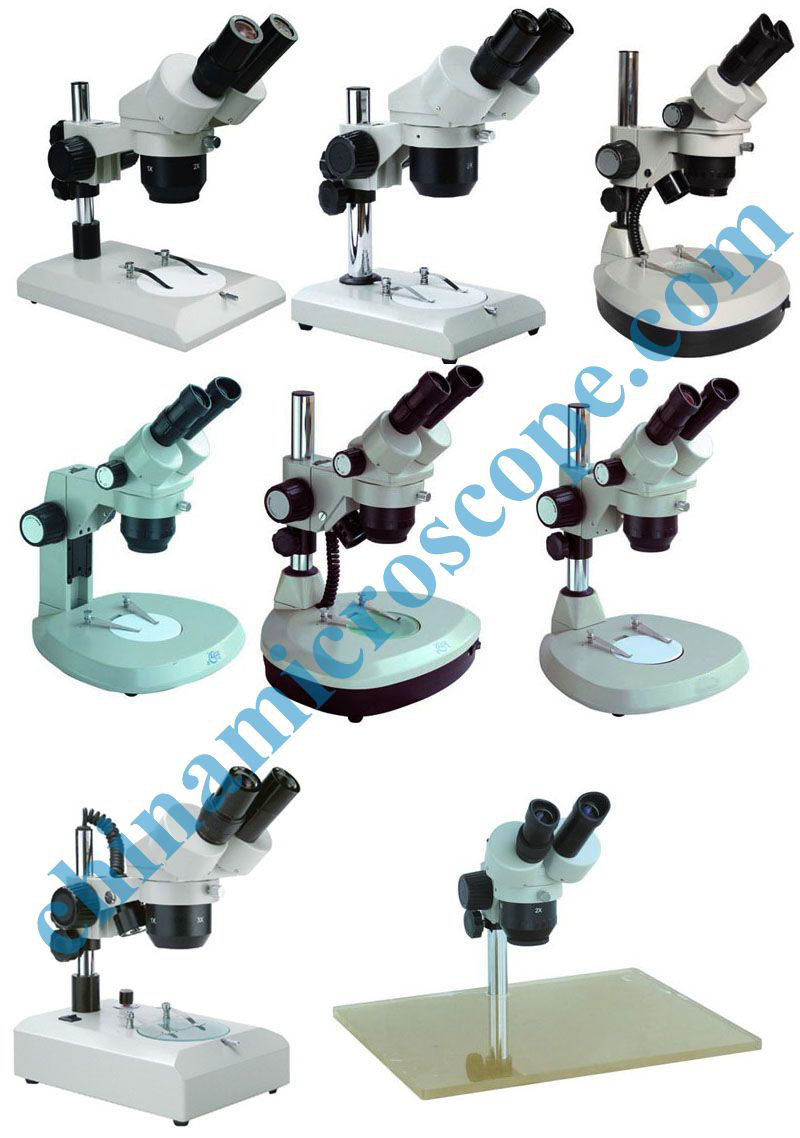

The TST stereo microscope series features a variety of single and dual magnification bodies which are easily paired with our extensive range of frames to build to virtually any required configuration. We also supply optional auxiliary objectives and optional eyepieces to extend the magnification as required for the work at hand. Objective magnifications are available in 1X, 2X, 3X, and 4X. These magnifications are available paired in a body tube as 1X+2X, 1X+3X, and 2X+4X. They are also available as single magnifications only in any of the four available magnifications. The standard supplied unit features 10X wide field high eye-point eyepieces. The frames are available as non-illuminated; and illuminated, with fluorescent or variable intensity halogen transmitted illumination, and variable intensity halogen reflected illumination. These microscopes are used extensively world wide in medical research and health care, biology and botany research, and agriculture, as well as in electronic component manufacturing. They are also particularly well suited for the inspection and production of LC Polymer films, exposed liquid crystals in LC circuits and glass substrates, LCD printing pastes, LED production, fabric and fiber evaluation, electronics assembly, printed circuit board manufacturing, medical device inspection and all types of quality control environments.
Standard configurations
|
Objective zoom range |
1X-2X 1X-3X 2X-4X |
|
Eyepiece |
10X eyepiece |
|
Working distance |
105mm |
|
Interpupillary distance adjustment |
55mm-75mm |
|
Binocular lead |
inclination of 45。 |
|
Diopter adjustment |
±5 diopter |
|
Optical span rotation |
360° |
|
Voltage input |
110V／60HZ or 220V／50HZ |
|
Top halogen lamp |
6V15W adjustable brightness |
|
Bottom fluorescent lamp |
5W |
Technical data: M means magnification, V means visual field, W means Working distance(mm)
A means Auxiliary Objective
|
A |
Eyepiece |
W |
|||||||
|
WF10X |
WFl5X |
WF20X |
WF25X |
||||||
|
M |
V |
M |
V |
M |
V |
M |
V |
||
|
0.5X |
5X 10X 15X 20X |
40 20 13 10 |
7.5X 15X 22.5X 30X |
32 16 10 7.8 |
10X 20X 30X 40X |
26 13 8.7 6.5 |
12.5X 25X 37.5X 50X |
24 12 8 6 |
160 |
|
0.75X |
7.5X 15X 22.5X 30X |
26.7 13.3 8.9 6.7 |
11.3X 22.5X 33.8X 45X |
21.3 10.7 7.1 5.3 |
15X 30X 45X 60X |
17.3 8.7 5.8 4.3 |
18.8X 37.5X 56.3X 75X |
16 8 5.3 4 |
120 |
|
1X |
10X 20X 30X 40X |
20 10 6.7 5 |
15X 30X 45X 60X |
16 8 5 3.4 |
20X 40X 60X 80X |
13 6.5 4.3 3.3 |
25X 50X 75X 100X |
12 6 4 3 |
105 |
|
1.5X |
15X 30X 45X 60X |
13.3 6.7 4.4 3.3 |
22.5X 45X 67.5X 90X |
10.7 5.3 3.6 2.7 |
30X 60X 90X 120X |
8.7 4.3 2.9 2.2 |
37.5X 75X 112.5X 150X |
8 4 2.6 2 |
45 |
|
2X |
20X 40X 60X 80X |
10.5 3.3 2.5 |
30X 60X 90X 120X |
8 4 2.7 2 |
40X 80X 120X 160X |
6.5 3.3 2.2 1.4 |
50X 100X 150X 200X |
6 3 2 1.5 |
30 |
